CUI: Optical Panel Incremental Encoders (EC208 E or F Series)
CUI: Optical Panel Incremental Encoders (EC208 E or F Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EC208EF


Model No.:


.

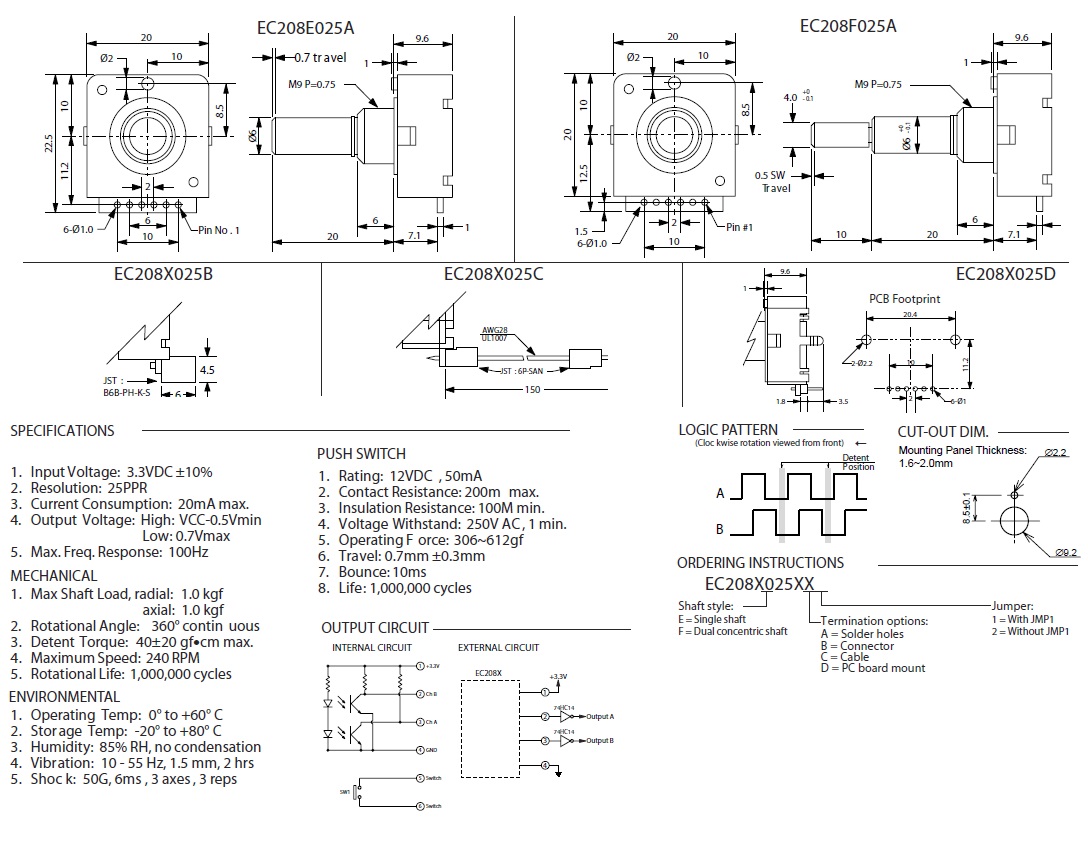

Description Specifications and Drawings


CUI: EC208 E or F Series
20 mm, 25 PPR, 3.3 Vdc Input, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder

Specifications:

  • Input Voltage (Vdc): 2.97 ~ 3.63

  • Shaft Length (mm): 20, 30

  • Operating Temp. (°C): 0 ~ 60

  • Speed, Max. (RPM): 240

Model No.: EC208EA1, EC208EA2, EC208EB1, EC208EB2, EC208EC1, EC208EC2, EC208ED1, EC208ED2, EC208FA1, EC208FA2, EC208FB1, EC208FB2, EC208FC1, EC208FC2, EC208FD1, EC208FD2
