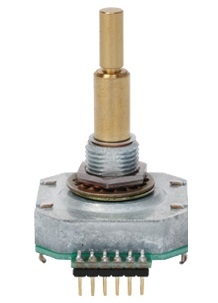

CUI: Optical Panel Incremental Encoders (EC251 E or F Series)
CUI: Optical Panel Incremental Encoders (EC251 E or F Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EC251EF


Model No.:


.

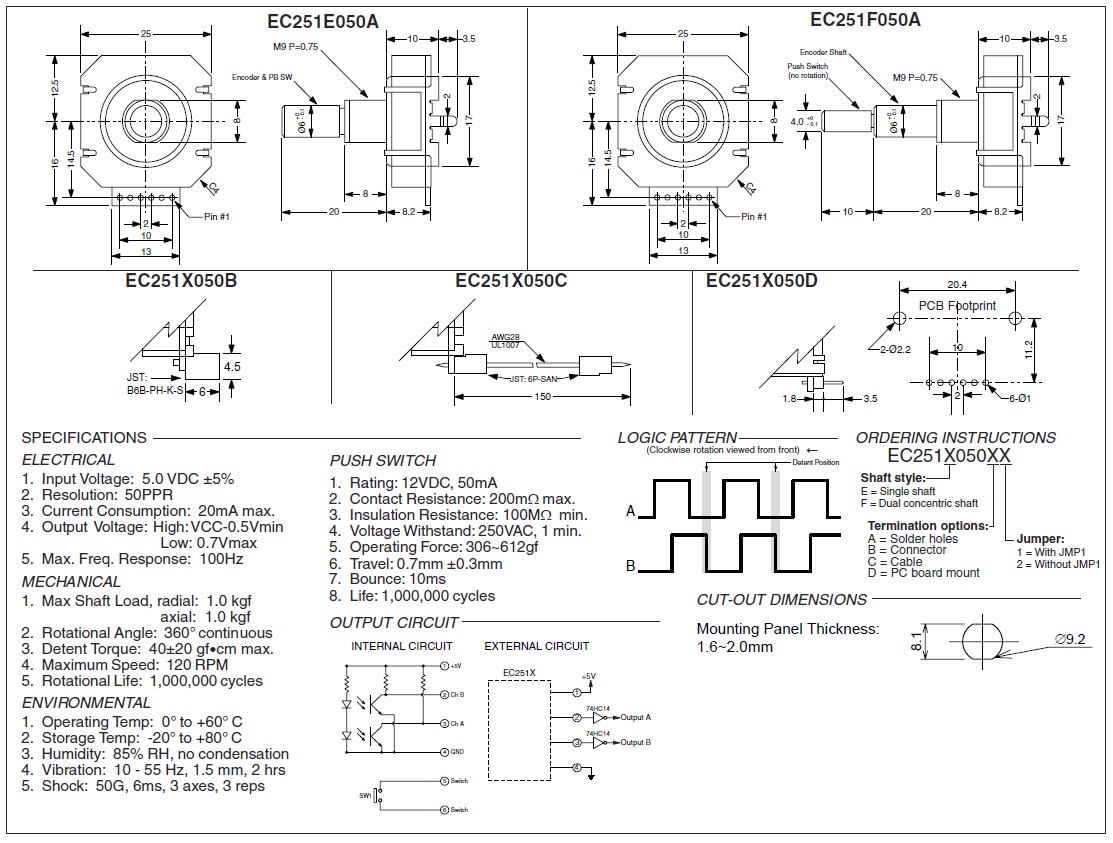

Description Specifications and Drawings


CUI: EC251 E or F Series
25 mm, 50 PPR, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder

Specifications:

  • Input Voltage (Vdc): 2.97 ~ 3.63

  • Shaft Length (mm): 20, 30

  • Operating Temp. (°C): 0 ~ 60

  • Speed, Max. (RPM): 120

Model No.: EC251EA1, EC251EA2, EC251EB1, EC251EB2, EC251EC1, EC251EC2, EC251ED1, EC251ED2, EC251FA1, EC251FA2, EC251FB1, EC251FB2, EC251FC1, EC251FC2, EC251FD1, EC251FD2
