CUI: Optical Panel Incremental Encoders (EC252 A or B Series)
CUI: Optical Panel Incremental Encoders (EC252 A or B Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EC252AB


Model No.:


.
Description Specifications and Drawings

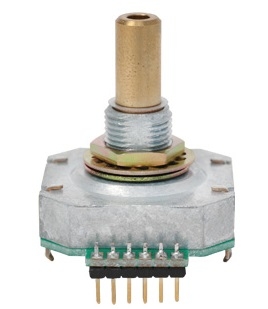

CUI: EC252 A or B Series
25 mm, 50 PPR, 3.3 Vdc Input, Metal Shaft, Sleeve Bearing, Detent, Optical Panel Mount Encoder

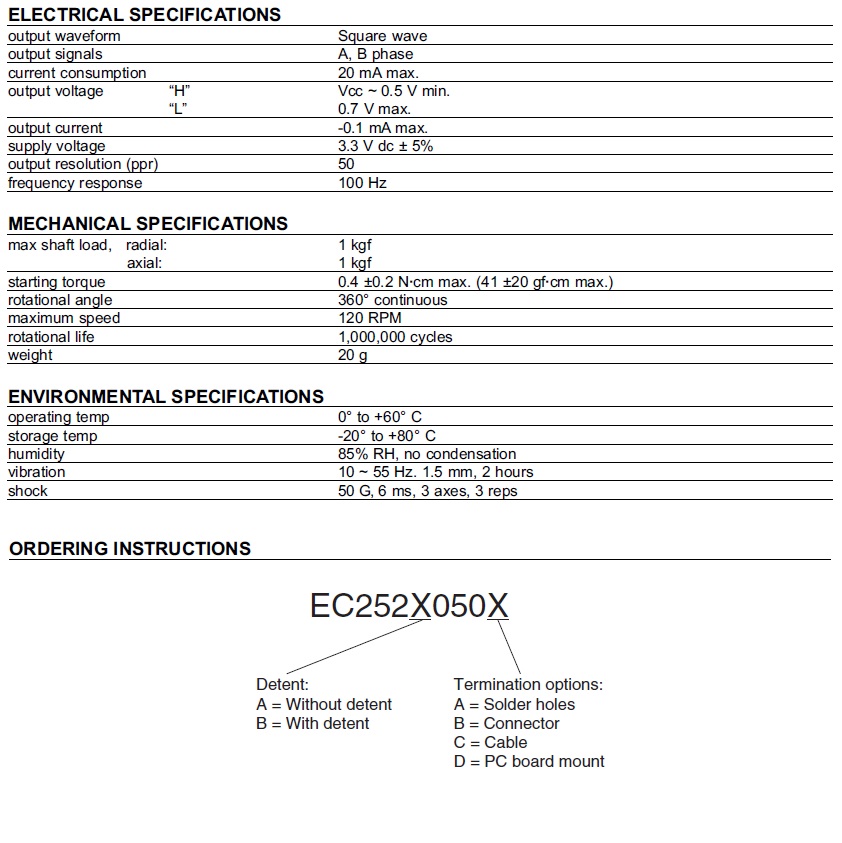

Specifications:

  • Input Voltage (Vdc): 3.13 ~ 3.46

  • Shaft Length (mm): 20

  • Operating Temp. (°C): 0 ~ 60

  • Speed, Max. (RPM): 120

Model No.: EC252AA, EC252AB, EC252AC, EC252AD, EC252BA, EC252BB, EC252BC, EC252BD
