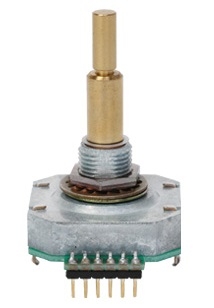

CUI: EC252 E or F Series
25 mm, 50 PPR, 3.3 Vdc Input, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder Input Voltage (Vdc): 3.13 ~ 3.47 Shaft Length (mm): 20, 30 Operating Temp. (°C): 0 ~ 60 Speed, Max. (RPM): 120
Model No.: EC252EA1, EC252EA2, EC252EB1, EC252EB2, EC252EC1, EC252EC2, EC252ED1, EC252ED2, EC252FA1, EC252FA2, EC252FB1, EC252FB2, EC252FC1, EC252FC2, EC252FD1, EC252FD2
|
|
|
 |
|
 |
|
