Cyclone Gearbox: EC Series (P2:Standard) Stage 1
Cyclone Gearbox: EC Series (P2:Standard) Stage 1


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: EC_-_P2_


Specification Model (Size):

Reduction Ratio (Single):

Backlash:

Output Type:

Qty:

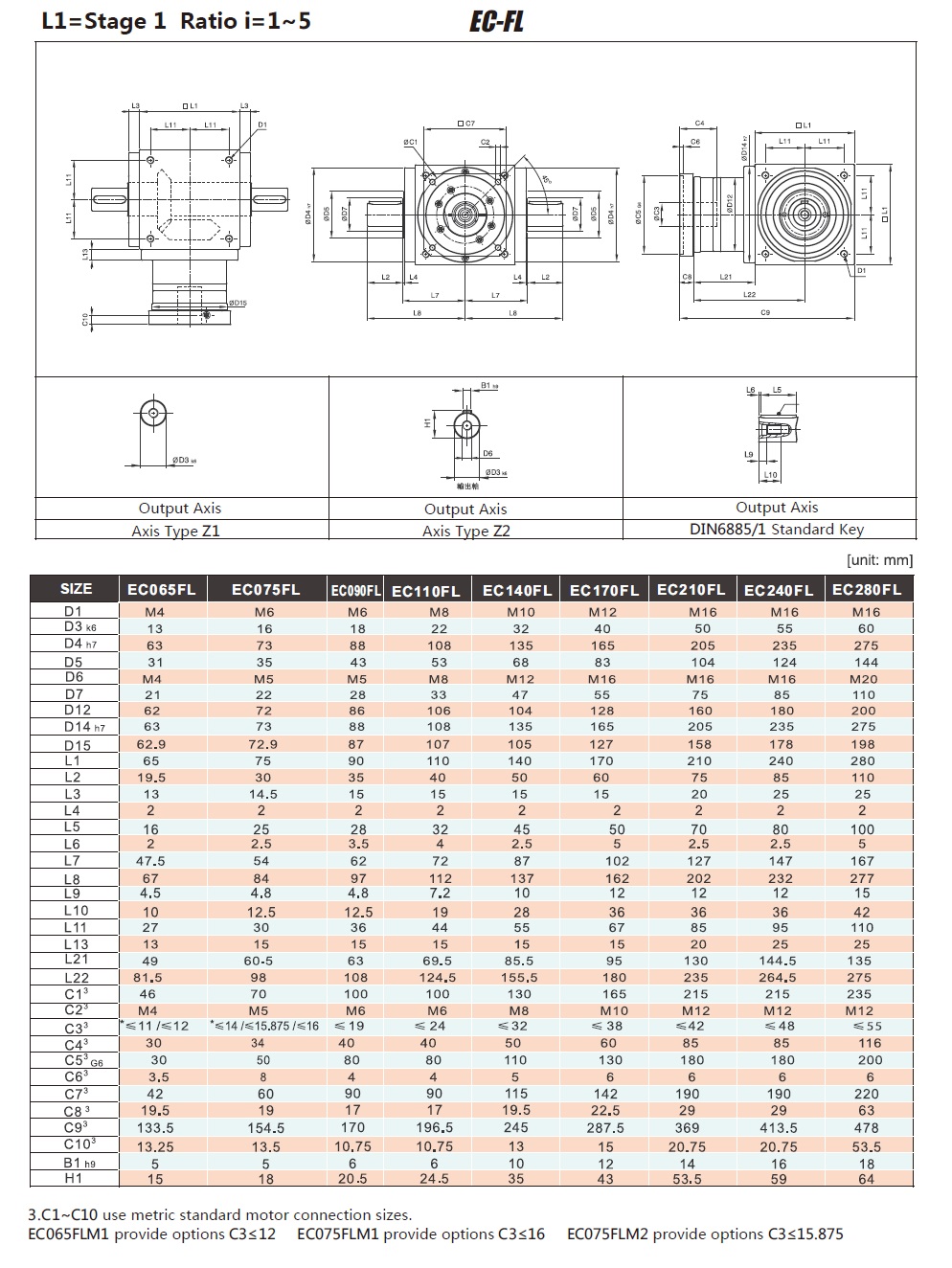

Description Specifications and Drawings


Specifications:

· Ratio(i=Nin/Nout): 1 ~ 5

· Output Torque: UP to 3200 Nm

· Backlash: ≤6 arcmin

· Available Sizes: 65-285

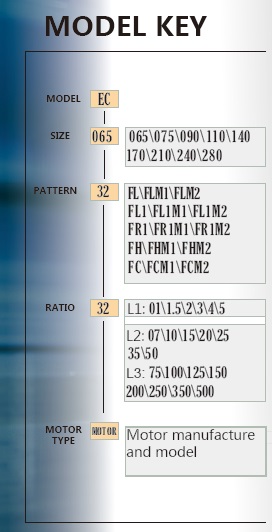

How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method

Cyclone EC Series PDF
