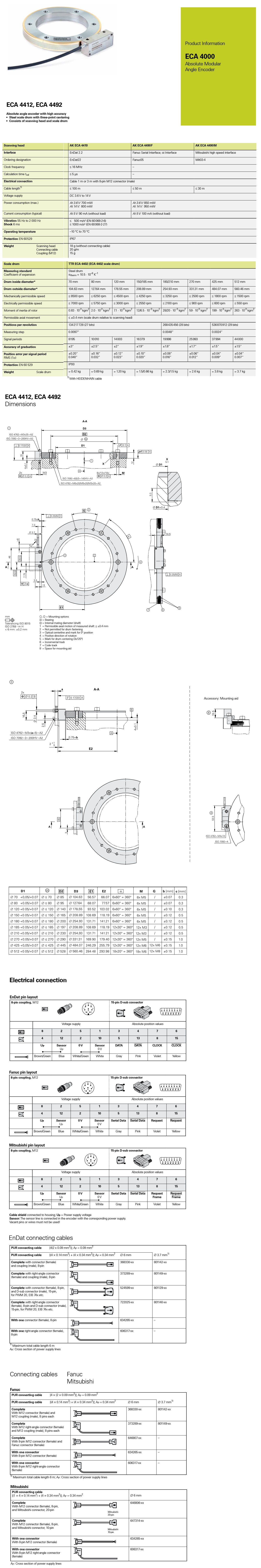

Description Specifications and Drawings


Heidenhain: Absolute angle encoders without integral bearing (ECA 4000 Series)

Measuring angles with angle encoders


HEIDENHAIN angle encoders are characterized by high accuracy values in the arc second range and better.


Examples for application:

  • Rotary tables on machine tools

  • Swivel heads on machine tools

  • C axes on lathes

  • Gear-testing machines

  • Printing units of printing machines

  • Spectrometers

  • Telescopes


Angle encoders without integral bearing

The angle encoders without integral bearing (modular angle encoders) are intended for integration in machine elements or apparatuses. They are suited for the following requirements:

  • Large hollow shaft diameter (up to 10 m with a scale tape)

  • High shaft speeds up to 40000 rpm

  • No additional starting torque from shaft seals

  • Segment solutions


Angle encoders with graduation on steel scale drum |
Field of application

  • Rotary tables, Swivel heads, Accurate, highly dynamic motors

  • Large diameter range

  • High permissible shaft speeds

  • High accuracy

  • Various shapes of drum

  • Various line counts per diameter

  • Protective cover for increased resistance to contamination


Model No.:
AK ECA 4410, AK ECA 4490 F, AK ECA 4490 M
