Cyclone Gearbox: EE Series (P2:Standard) Stage 1
Cyclone Gearbox: EE Series (P2:Standard) Stage 1



Price: (Members Only)


Order #: EE_-_P2_


Specification Model (Size):

Reduction Ratio (Single):

Backlash:

Output Type:

Qty:

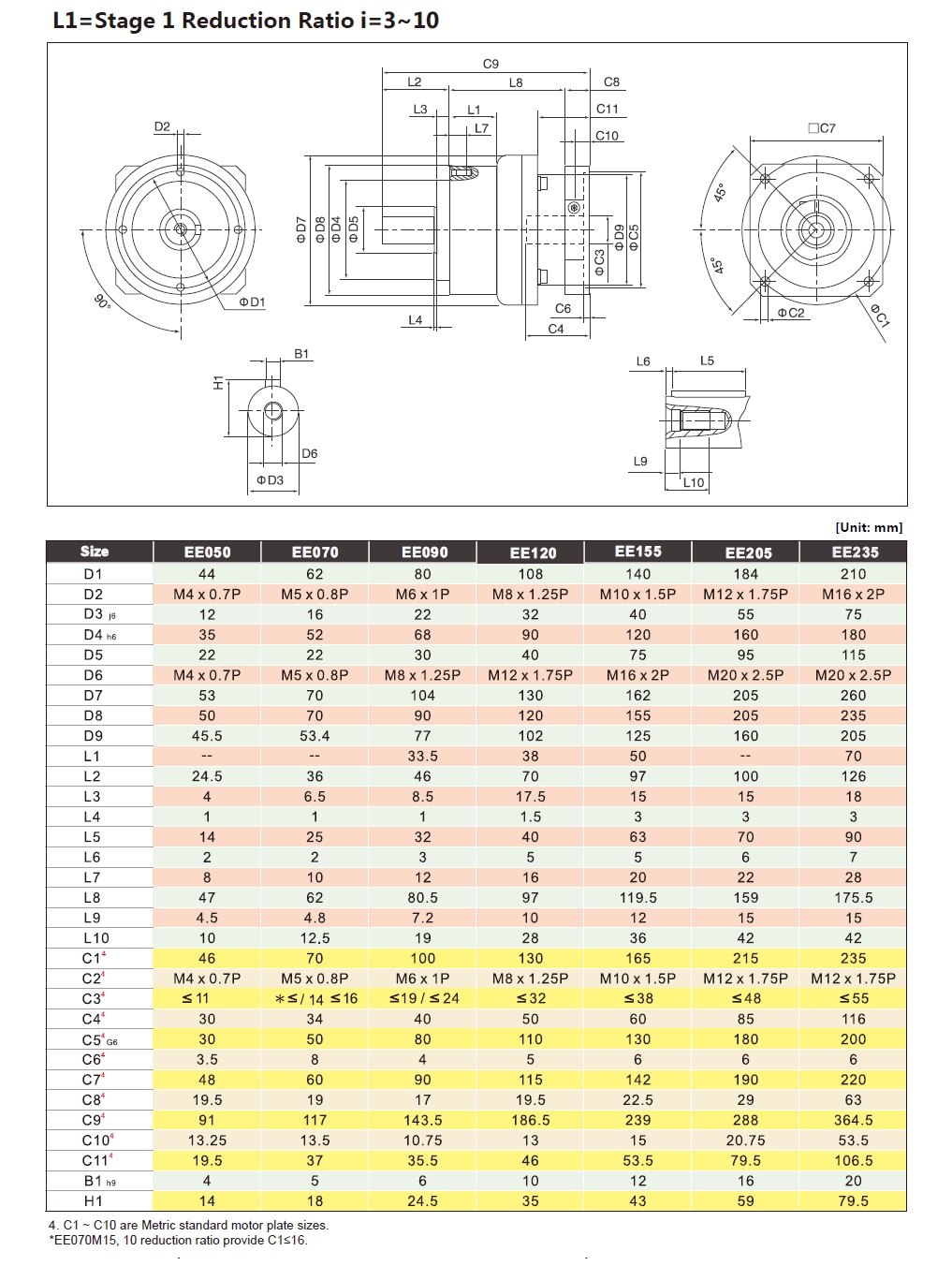

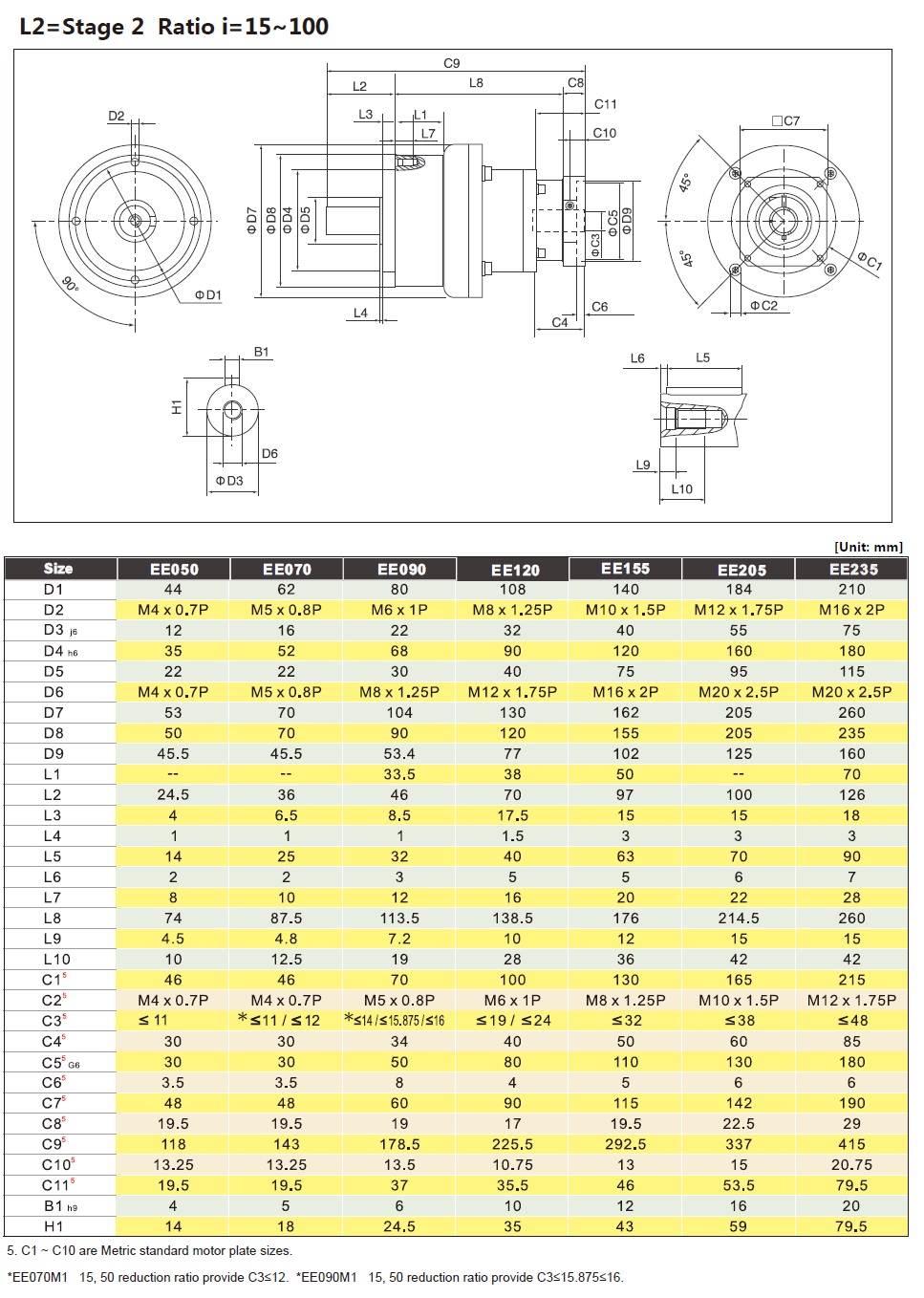

Description Specifications and Drawings

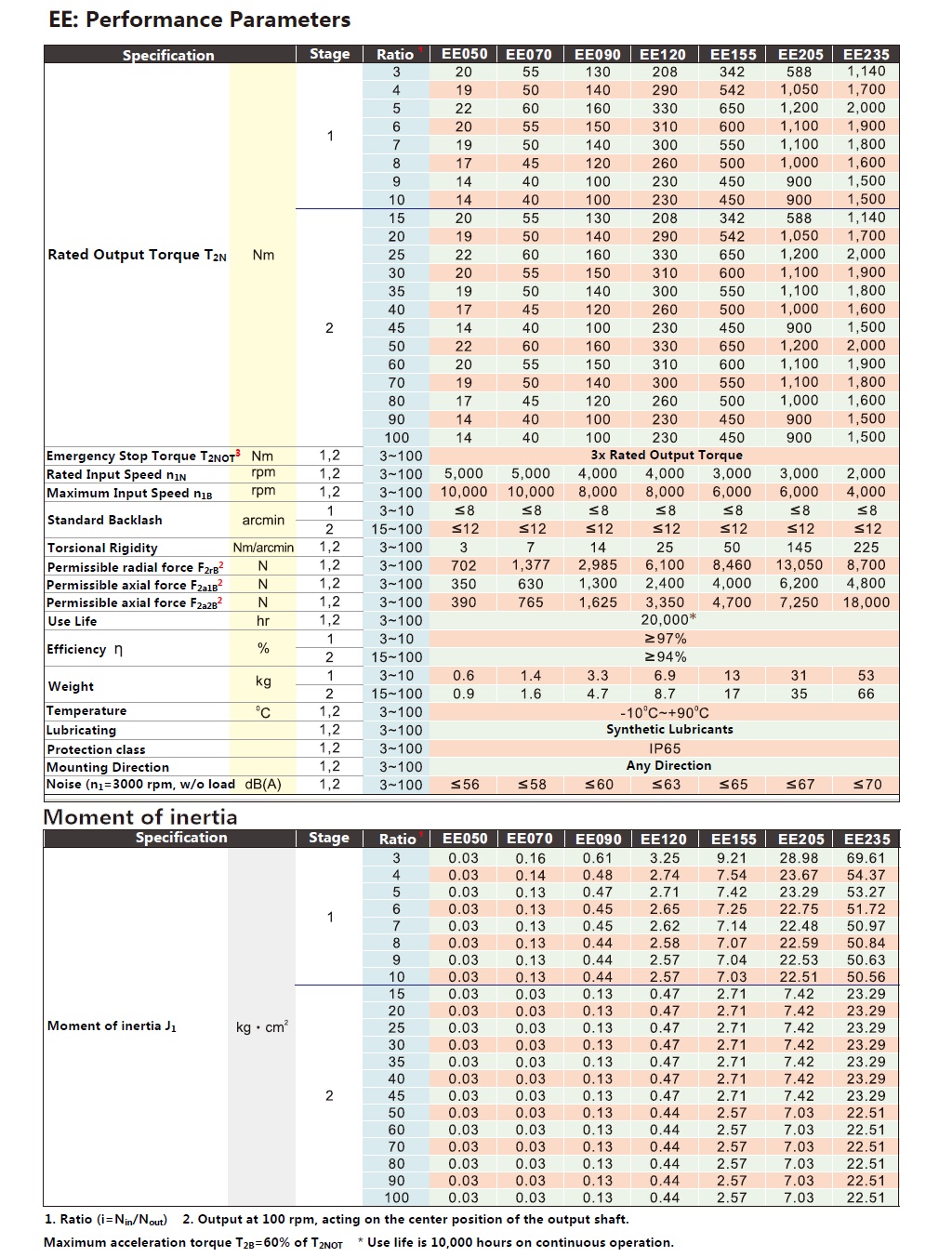

Specifications:

· Reduction Ratio (i=Nin/Nout): 3~10

· Output Torque: UP to 2000 Nm

· Backlash: ≤8 arcmin

· Available Sizes: 50-235

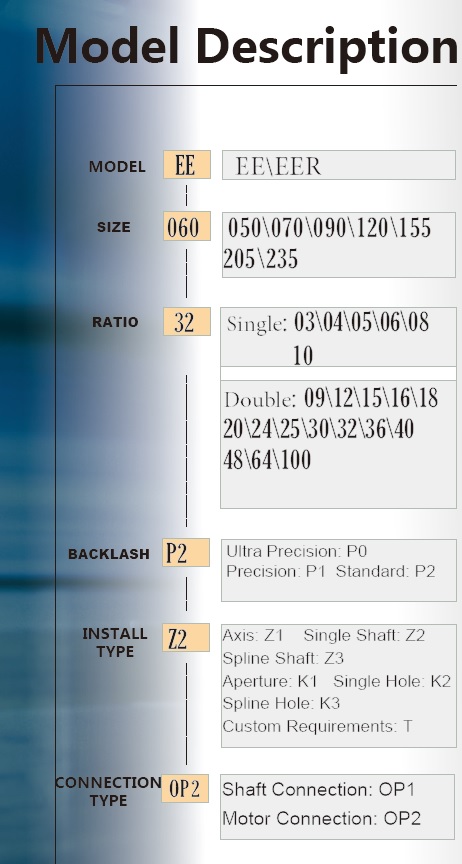

How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method


EE Series
