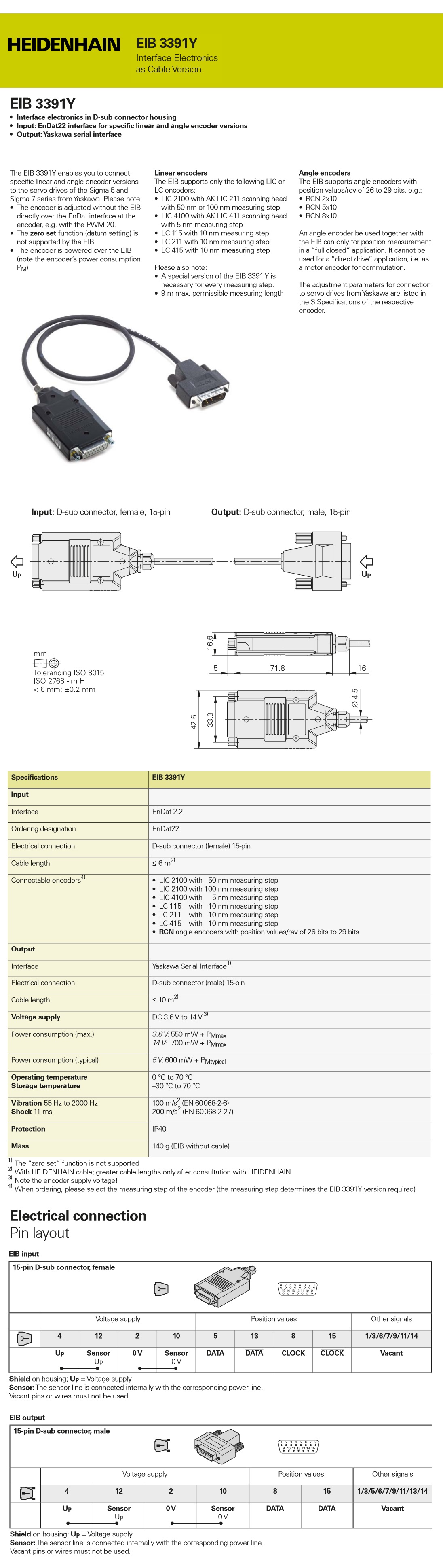

Heidenhain: Interface Electronics (EIB 3391 Y)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


The EIB 3391 Y enables you to connect specific linear and angle encoder versions to the servo drives of the Sigma 5 and Sigma 7 series from Yaskawa. Please note:

  • The encoder is adjusted without the EIB directly over the EnDat interface at the encoder, e.g. with the PWM 20.

  • The zero set function (datum setting) is not supported by the EIB

  • The encoder is powered over the EIB (note the encoder’s power consumption PM)


Features:

  • Interface electronics in D-sub connector housing

  • Input: EnDat22 interface for specific linear and angle encoder versions

  • Output: Yaskawa serial interface
