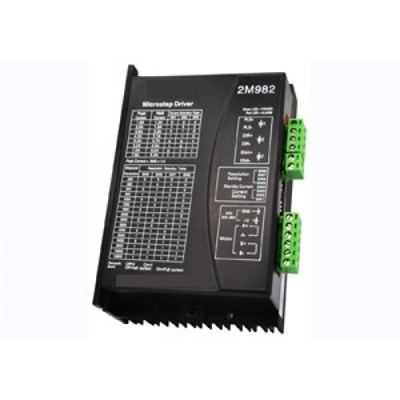

CYCLONE Stepper Drives DC 24-80V : EM-DC2M982
CYCLONE Stepper Drives DC 24-80V : EM-DC2M982


Price: (Members Only)


Availability: Usually Ships in 2 to 4 Weeks
Order #: EM-DC2M982
Qty:

Description Specifications and Drawings


EM-DC2M982

Micro stepping drive accepts 24-80V DC power and provides up to 7.8 Amps of current to the motor.


Performance

• Designed for use with motor inductance range of 0.5 mH - 80 mH

• Selectable resolution up to 12,800 steps/rev

• Auto standby reduces motor current (and heating) at rest

• Provides 1.7 Amps to 7.8 Amps (peak)

• Single 24-80 VDC power supply input

• Compatible with various motors

Physical

• Simplified, two-screw mounting

• Overall dimensions: 151x97x48 mm

• Convenient configuration DIP switches

• Approvals: CE
