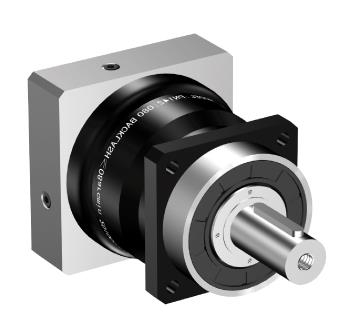

Cyclone Gearbox: EN Series (P1:Precision) Stage 2
Cyclone Gearbox: EN Series (P1:Precision) Stage 2


Price: (Members Only)


Availability: Usually Ships in 2 to 4 Weeks
Order #: EN_-_P1__


Specification Model (Size):

Reduction Ratio (Double):

Backlash:

Output Type:

Qty:

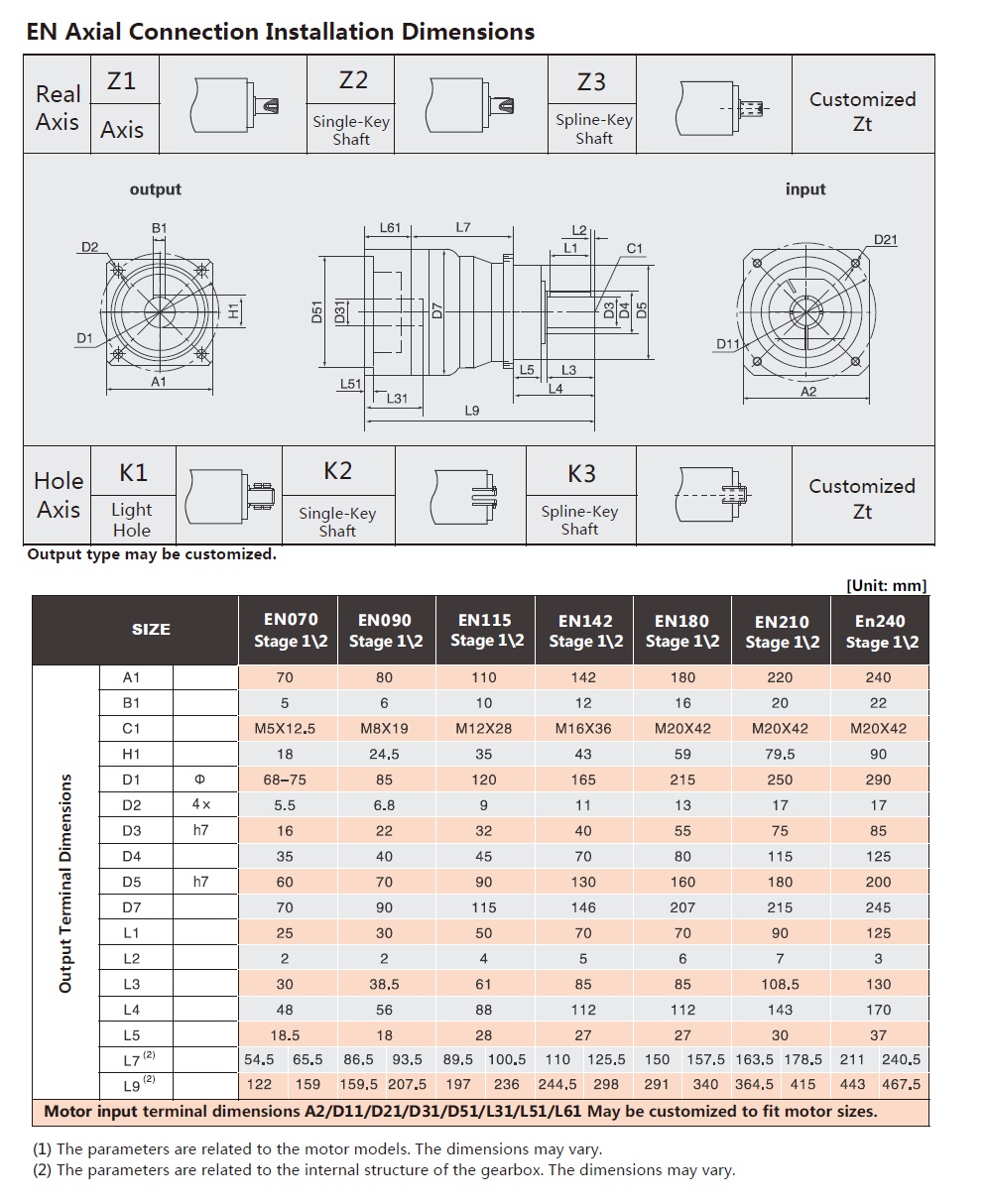

Description Specifications and Drawings


Specifications:

· Moment of Inertia (kgcm2): 12:1 ~ 64:1

· Output Torque: UP to 3500 Nm

· Backlash: ≤7 arcmin

· Available Sizes: 70-240

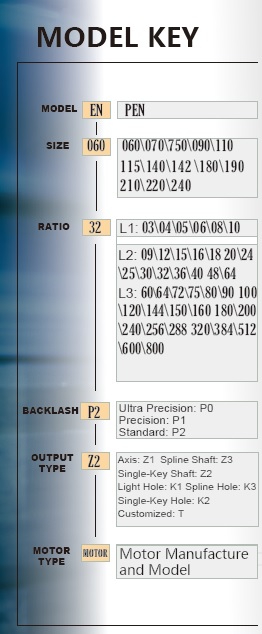

How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method


Cyclone EN Series PDF
