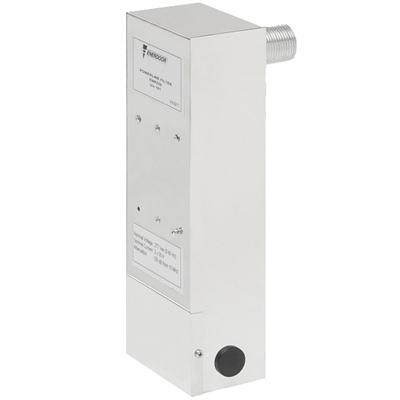

Enerdoor: MRI Filter - Military Filter

The MRI filter series is designed to achieve a high level of shielding on protected environments. All models are characterized by high levels of attenuation above 100 dB. For each application there are models suitable for filtering supply lines 50 and 60 Hz from single phase to three phase, with currents of up to hundreds of amps and filters for signal lines (remote controls, lines connecting sound, video, telephony, digital signals).

Models are characterized by a leakage current to ground (below 30 mA), which allows use in any environment without the need of special installation procedures. All models are built and tested conforming to all military regulations: MIL.F-15733, MIL-STD-220A and Civil UL1283.

Product range includes models suitable for various applications where required attenuations are equal to or greater than 100 dB, with different possibilities in terms of frequency band, depending on the application.

Filters for military applications: 10 KHz - 10 GHz
Filters for medical applications in a 5 MHz - 5 GHz
Filters for applications scientific and industrial laboratories, for example, measuring 100 KHz - 10 GHz

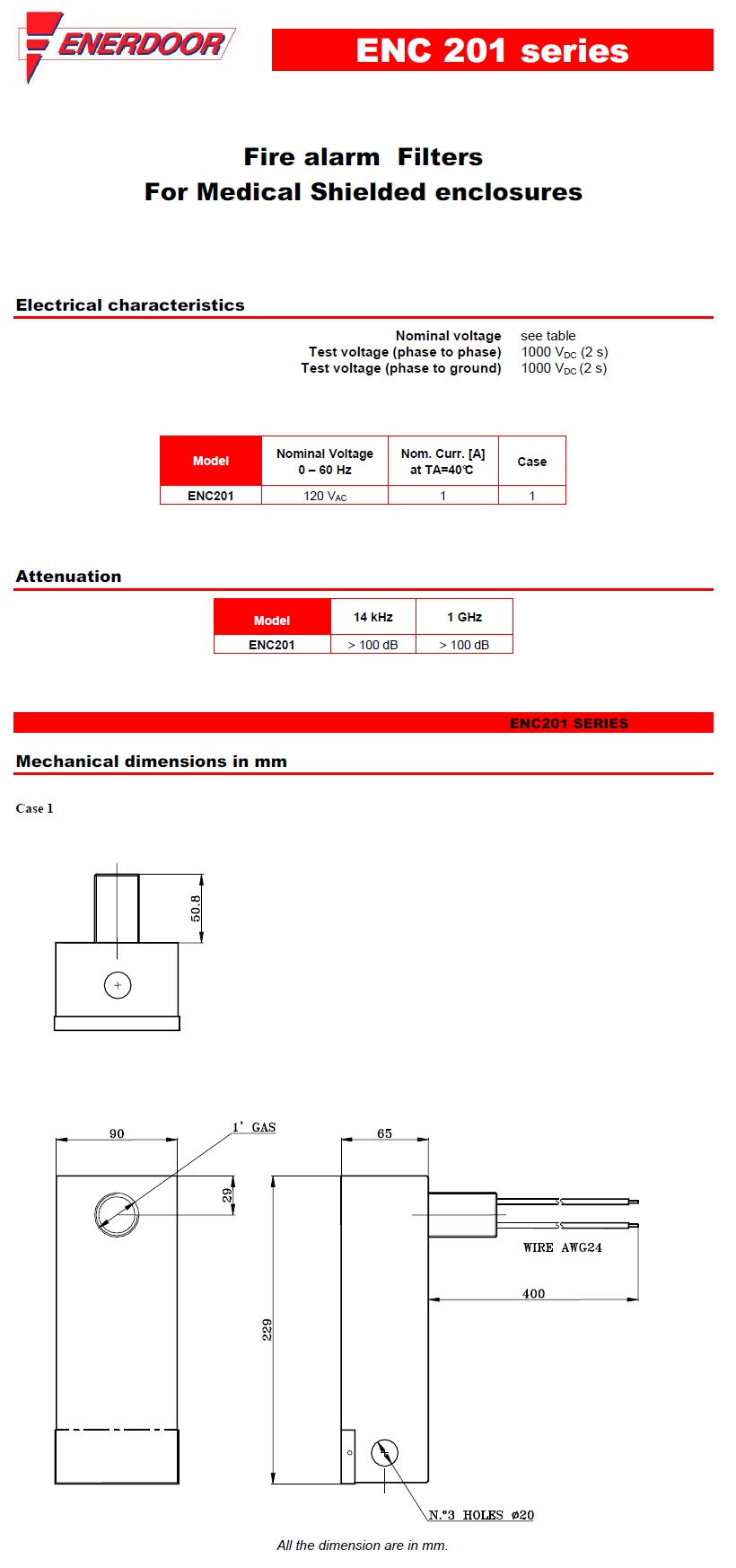

ENC201 Fire Alarm Filter

  • Fire alarm filter

  • Rated current 1Amps

  • Nominal voltage 120Vac

  • 100dB at 14kHz

  • 100dB at 1GHz
