Adept: SCARA Robot (ePLC800 Inverted Series)
Adept: SCARA Robot (ePLC800 Inverted Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EPLC800-INVERTED
.

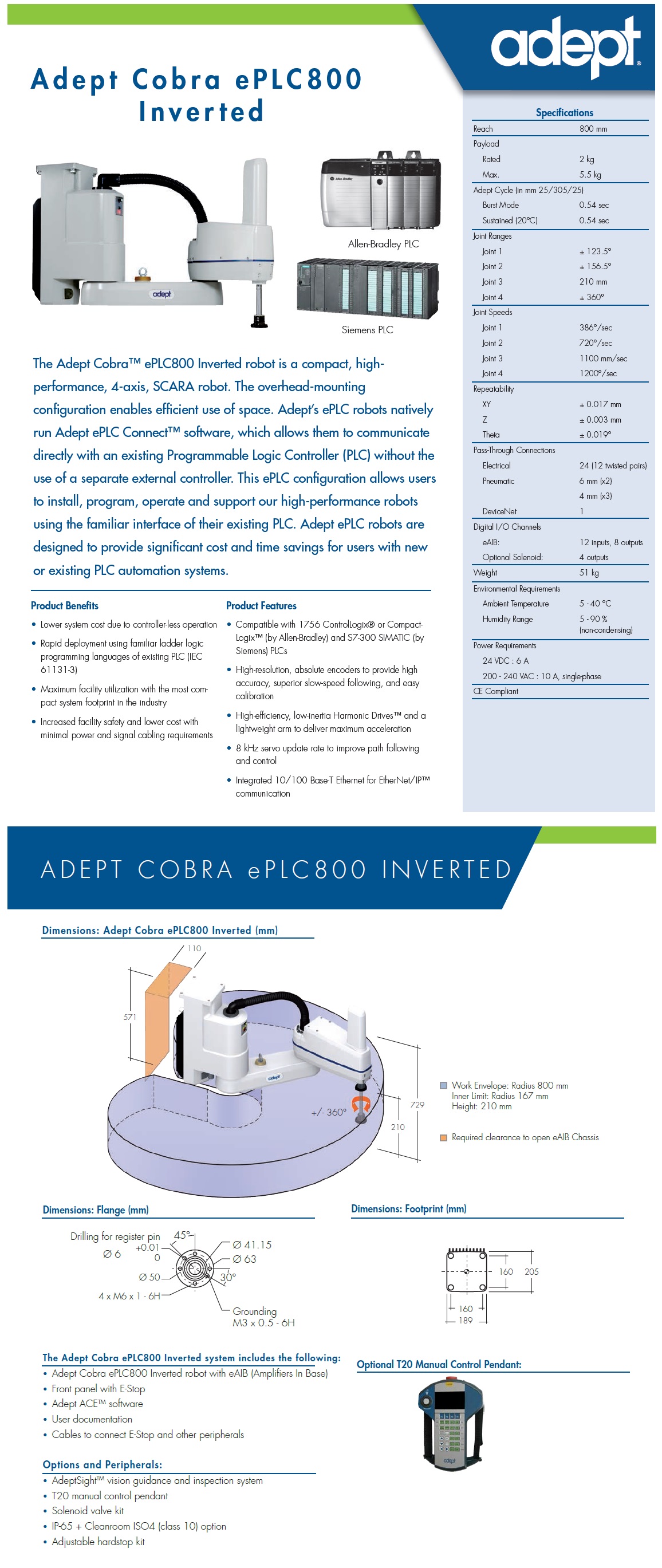

Description Specifications and Drawings


Adept: SCARA Robot (ePLC800 Inverted Series)

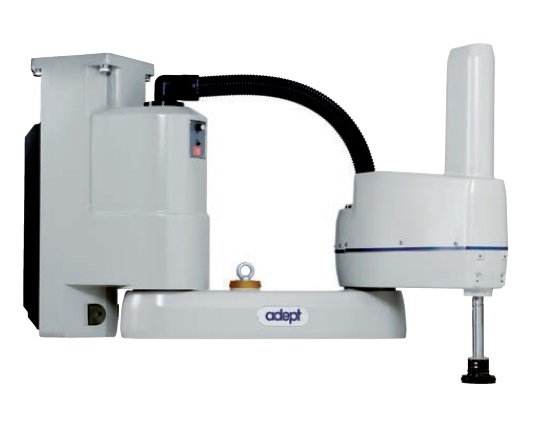

The Adept Cobra™ ePLC800 Inverted SCARA robot is a compact, high performance, 4-axis SCARA robot designed to be programmed using Siemens or Allen-Bradley programming languages through an onboard Programmable Logic Controller (PLC). The overhead-mounting configuration enables efficient use of space in applications such as mechanical assembly, material handling, packaging and screw driving, particularly in conjunction with conveyor belts. Featuring an integrated controller and amplifiers, the Adept Cobra ePLC platform offers a compact robot footprint, and is the industry’s only line of self-contained, standalone SCARA robots.

Product Features & Benefits

  • Easy programming with standard IEC 61131-3 languages

  • No external controller – The robot controller and amplifiers are built into the arm, reducing the size and number of cables, and simplifying system deployment

  • High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration

  • Diagnostics display enables faster troubleshooting

  • 8 kHz servo update rate to improve path following and control

  • Integrated 10/100 Base-T Ethernet for EtherNet/IP Communication

  • High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration

Space Saving Embedded Amplifiers
The Adept Cobra ePLC800 Inverted robot has no external electronics. The amplifier and motion controller are built into the robot's arm, which reduces the size and number of cables. The robot attaches via a single ethernet cable to the PLC.
