Nanomotion: Rotary Piezo Motor (ER-15-4)

Nanomotion’s ER Motor family leverages the many advantages of our piezo technology, applied in a traditional motor housing. Utilizing a piezo drive inside the motor, the ER family offers silent motor operation with zero backlash (no gears) and built-in holding and braking without power consumption.

Motors can be provided with a closed back, rear-shaft, or with a built in rotary encoder. Closed loop operation is supported with Nanomotion’s S775 XCD card, which is a closed loop drive and control module. The S775 can be provided as a small board or chip level based controller for integration into other electronics.

Features:

Application Recommendations:

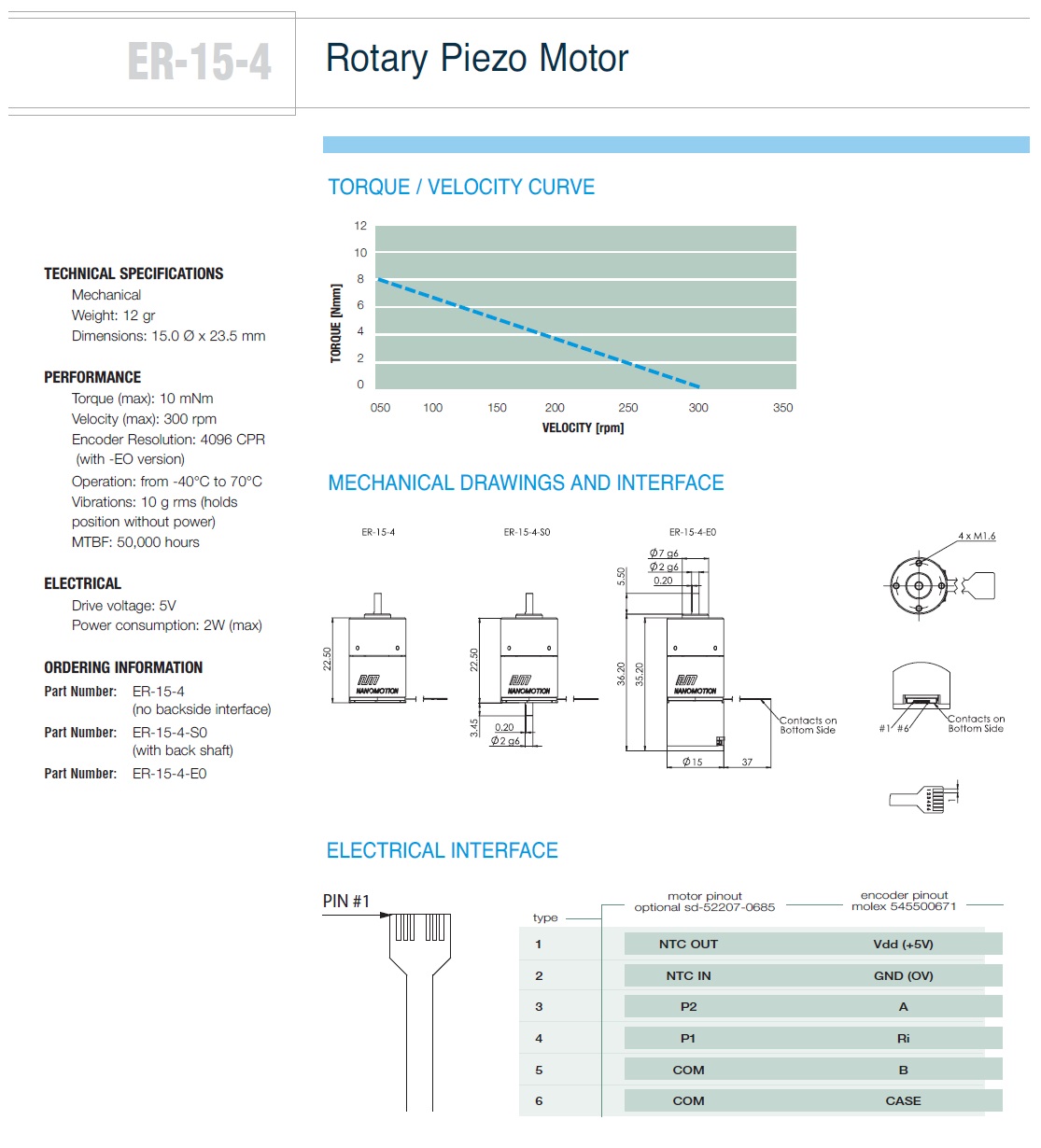

Model No.: ER-15-4, ER-15-4-E0, ER-15-4-S0
