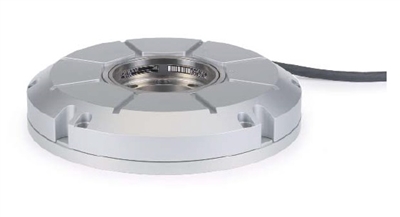

HEIDENHAIN: Angle Encoders (ERP 880/4080/8080 Series)

The term angle encoder is typically used to describe encoders that have an accuracy of better than ± 5“ and a line count above 10000. In contrast, rotary encoders are encoders that typically have an accuracy of more than ± 10“. Angle encoders are found in applications requiring precision angular measurement to accuracies within several arcseconds.


Examples:

  • Rotary tables on machine tools

  • Swivel heads on machine tools

  • C-axes of lathes

  • Measuring machines for gears

  • Printing units of printing machines

  • Spectrometers

  • Telescopes


Absolute angle encoders without integral bearing

The angle encoders without integral bearing (modular angle encoders) ERP, ERO and ERA consist of two components—a scanning head and a graduation carrier, which must be aligned with each other during mounting. The eccentricity of the shaft as well as installation and adjustment therefore have a decisive effect on the achievable accuracy.


Modular angle encoders are available with
various graduation carriers

  • ERP/ERO: Glass circular scale with hub

  • ERA 4000: Steel drum

  • ERA 7000/8000: Steel tape


Angle encoders without integral bearing
are designed for integration in machine elements or components. They are designed to meet the following requirements:

  • Large hollow shaft diameters (up to 10 m with a scale tape)

  • High shaft speeds

  • No additional starting torque from shaft seals

  • High reproducibility

  • High adaptability to mounting space (versions with scale tape available as full circles or circle segments)


Because angle encoders without integral
bearing are supplied without enclosure, the required degree of protection must be ensured through proper installation.


Model No.: AK ERP 4080, AK ERP 8080, ERP 880, TKN ERP 4080, TKN ERP 8080
