Parker: Stepper Motor (ES21B Series - Discontinued) Size 23
Parker: Stepper Motor (ES21B Series - Discontinued) Size 23

Discontinued.
ES21B Series REPLACEMENT: Park Stepper Motor HV Series



Price: (Members Only)


Order #: ES21B


Model No.:


.
Description Specifications and Drawings


Parker: Stepper Motor (ES21B Series) -- Discontinued from April 2019

  • Quality motors that give a smoother velocity performance.

  • 23 and 34-frame

  • S106 motors are 42-frame

  • For use with the GT and ZETA drives at 120VAC

  • ES23 and 34 motors are the same as the S and ZETA 57- and 83- motors.

  • ES21B-DNR10: ES, 23F, 1St, 170V, 10Ft, DBL

  • ES21B-SNR10: ES, 23F, 1St, 170V, 10Ft, SGL

  • ES21B-DFR10: ES23, 1Stk, 170V, 10Ft, DBL

  • ES21B-SFR10: ES23-1, 170V, SGL, Flt, 10 Ft

  • ES21B-DNR10-EC: ES21, 170V, 10Ft, Encoder

  • ES21B-DKR10-EC: ES21, 170V, 10Ft, Enc, Key

Model No.: ES21B-DFR10, ES21B-DKR10-EC, ES21B-DNR10, ES21B-DNR10-EC, ES21B-SFR10, ES21B-SNR10

Parker ES Series Stepper Motor PDF

RECOMMEND REPLACEMENT
The HV motors are the best choice for replacing the ES motors, offering higher torque, better lead times and more competitive pricing.

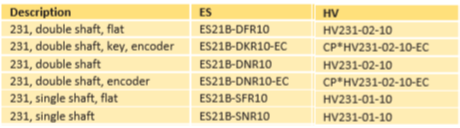

This chart shows the ES motor with shared characteristics along with the recommended HV replacement.
See the notes column and associated footnotes that summarize mechanical differences.

Notes for selecting HV as replacements:

1) HV23x motors have the same face mounting, shaft length and shaft diameter (0.25inch)
2) ES2x and HV23 motors do not include a connector
  • HV23x-02-10 : Double shaft with a single flat
  • HV23x-01-10 : Single shaft with a single flat
  • HV23x motors are not available with keyways
  • -E or -EC models include a 1000 lines encoder. HV23x motors can be supplied with a similar 1000ppr encoder.
