Parker: Stepper Motor (ES23B Series) Size 23
Parker: Stepper Motor (ES23B Series) Size 23

Parker: Stepper Motor (ES23B Series) was obsolete.
The recommended replacement is (HV23 Series).

Price: (Members Only)


Order #: ES23B


Model No.:

.
Description Specifications and Drawings

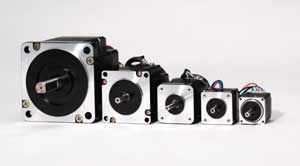

Parker: Stepper Motor (ES22B Series)

  • Quality motors that give a smoother velocity performance.

  • 23 and 34-frame

  • S106 motors are 42-frame

  • For use with the GT and ZETA drives at 120VAC.

  • ES23 and 34 motors are the same as the S and ZETA 57- and 83- motors.

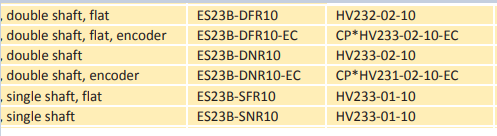

  • ES23B-DNR10: ES, 23F, 3ST, 170V, 10FT, DBL

  • ES23B-SNR10: ES, 23F, 3ST, 170V, 10FT, SGL

  • ES23B-DFR10: ES, 23F, 3ST, 170V, 10FT, FL

  • ES23B-SFR10: ES, 23F, 3ST, 170V, 10FT, SGL

  • ES23B-DNR10-EC: ES23, 170V, 10FT, ENCODER

  • ES23B-DFR10-EC: 23, 170V, 10FT, ENC, W/FLAT

Parker ES Series Stepper Motor PDF

Model No.: ES23B-DFR10, ES23B-DFR10-EC, ES23B-DNR10, ES23B-DNR10-EC, ES23B-SFR10, ES23B-SNR10
