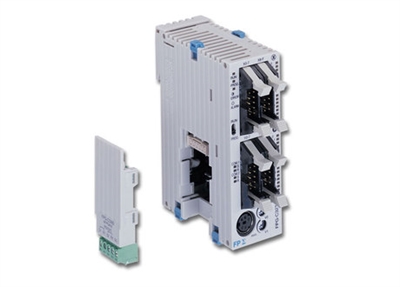

Panasonic: Powerful, Compact PLC (FP-Sigma Series)

Panasonic PLCs offer an outstanding price-performance benefit which incorporates numerous functions including PID, adaptive filters, electronic cam control, multi-axis interpolation and more, all in a very compact body. Panasonic PLCs undergo extremely rigorous testing during development that far exceeds the demands that will actually be placed on them. This is a guarantee for the long life of the product in end-use applications. Panasonic's PLC programming software, Control FPWIN Pro, was one of the first on the market conforming to the international standard IEC 61131-3. In addition to all of this, Panasonic employs highly trained application engineers that can assist in providing custom designed systems.


Powerful compact PLC: FP-Sigma

  • Max. 192 inputs / 192 outputs transistor or 56 outputs relay

  • Max. 40 analog inputs / 28 analog outputs

  • 3 x RS232C or 2 x RS232 + 1 x RS485 interfaces

  • Program memory: 32000 steps

  • Data memory: 32k to 1056k words

  • PROFIBUS, Ethernet TCP/IP, Modbus, CC-Link, S-Link, CANopen, DeviceNet

  • Motion control functions


FP-Sigma

The FP-Sigma features the very latest control technology and a compact structural design. It is able to communicate with all major factory automation products. Of course you can program the FP-Sigma using our FPWIN Pro software (conforming to IEC 61131-3), and it is compatible with all Panasonic controllers.


Other highlights:

  • Large program memory (32k commands)

  • Large data memory (32k words)

  • Fastest processing time, 0.32µs/basic command

  • Real-time clock

  • Compact design (W 30 x H 90 x D 60mm)

  • Top communication performance thanks to 3 possible serial interfaces on the CPU

  • MODBUS RTU Master/Slave standard in all CPUs

Efficient motion control functions

  • 50kHz fast counter input

  • 100kHz pulse output

  • Convenient positioning commands
