Panasonic: Entry level, Compact, Multi-functional PLC (FP-X0 Series)
Panasonic PLCs offer an outstanding price-performance benefit which incorporates numerous functions including PID, adaptive filters, electronic cam control, multi-axis interpolation and more, all in a very compact body. Panasonic PLCs undergo extremely rigorous testing during development that far exceeds the demands that will actually be placed on them. This is a guarantee for the long life of the product in end-use applications. Panasonic's PLC programming software, Control FPWIN Pro, was one of the first on the market conforming to the international standard IEC 61131-3. In addition to all of this, Panasonic employs highly trained application engineers that can assist in providing custom designed systems.

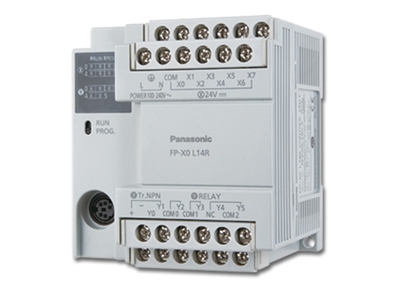

FP-X0: Entry level, Compact, Multi-functional PLC
Max. 216 I/Os
Equipped with relay and transistor outputs (NPN)
2 analog inputs and clock/calendar function
Max. 2 serial ports: 1 x RS232C, 1 x RS485
Program capacity from 2500 to 8000 steps
Data registers: 2550 to 8192 words
Ethernet TCP/IP, Modbus RTU, PLC Link
Motion control functions
FP-X0 programmable controllers include the functionality required for simple automation applications (see highlights below). They are ideal for the most common motion control automation solutions, for example together with MINAS A5 servo drives and especially MINAS Liqi. CPUs are available with 14, 30, 40 and 60 I/Os and can be expanded to up to 216 I/Os.
Other Highlights:
Processing speed of 0.08µs/step for basic instructions for the first 3000 steps
Program capacity of up to 8k steps and 8k words data registers
Expandable with FP-X and FP0R analog units and digital I/O expansion units
Built-in analog input and real-time clock
Up to 2 serial communication ports can be used simultaneously (1 x RS232 + 1 x RS485)
Built-in 2-channel pulse output, e.g. for linear interpolation
Max. high-speed counting frequency of 50kHz (1 channel) and max. pulse output frequency of 50kHz (2 channels)
Program protection with an 8-digit password and a function which prohibits uploads
Compatible with all Panasonic FP series PLCs. The FP-X0 can be programmed using Control FPWIN Pro programming software in compliance with the international standard IEC 61131-3
