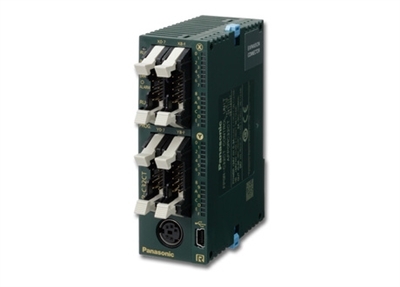

Panasonic: PLC (FP0R Series)
Panasonic: PLC (FP0R Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: FP0R
.

Description Specifications and Drawings


Panasonic: New Standard For Compact PLCs (FP0R Series)

Panasonic PLCs offer an outstanding price-performance benefit which incorporates numerous functions including PID, adaptive filters, electronic cam control, multi-axis interpolation and more, all in a very compact body. Panasonic PLCs undergo extremely rigorous testing during development that far exceeds the demands that will actually be placed on them. This is a guarantee for the long life of the product in end-use applications. Panasonic's PLC programming software, Control FPWIN Pro, was one of the first on the market conforming to the international standard IEC 61131-3. In addition to all of this, Panasonic employs highly trained application engineers that can assist in providing custom designed systems.


FP0R: New Standard For Compact PLCs

  • Max. 64 inputs / 64 outputs transistor or 54 outputs relay

  • Max. 24 analog inputs / 12 analog outputs

  • 2 x RS232C interfaces, USB2.0 port

  • Program memory: 16000 to 32000 steps

  • Data memory: 12315 to 32765 words

  • PROFIBUS, Ethernet TCP/IP, Modbus, S-Link, CC-Link, PLC Link

  • Advanced built-in positioning functions


FP0R - with enhanced, advanced functionality and performance

Our customers stand to benefit from the advanced features of the FP0R control units.

  • Ultra high-speed processing enhances productivity: An ultra high speed of 0.08µs/step for basic instructions for the first 3000 steps and 0.58µs/step thereafter.

  • The FP0R is ideal for positioning and process automation applications, e.g. in labeling machines.

  • Large programming capacity of 16k or 32k steps

  • Generous data register of up to 12k or 32k words

  • Independent comment memory

  • USB2.0 port provides high-speed program transfer

  • The new F-type FP0R provides maintenance-free and complete backup of all data without requiring a battery. Industry's first!


Highly advanced, built-in positioning functions
:

  • Jog operation

  • Individual settings for acceleration and deceleration for ramp functions

  • Target speed can be changed by an external signal input during jog operation or trapezoidal control

  • Can read encoder signals of up to 50kHz (pulse frequency measurement)

  • 6-channel high-speed counters and 4-axis pulse outputs can be used simultaneously


FP0R units provide various kinds of networking communication using a built-in interface or
expansion units:

  • Ethernet (Modbus TCP/IEC60870)

  • Profibus

  • CC-Link

  • MEWNET-W0

  • C-NET

  • RS232C or RS485 serial communication


FP0R - same ultra compact size as FP0

The FP0R control unit has the same dimensions as the FP0: W25 x H90 x D60mm. You can connect up to 3 FP0 expansion units to the FP0R, yielding up to 128 I/O points at a total width of just 100mm!


FP0R - fully compatible with FP0 units

FP0R control units are the same size and color, and have the same pin assignment and wiring as the FP0 control units. The FP0R can use existing FP0 programs without needing to change them, making replacement as simple as “plug and play”. Of course, the FP0R can use all FP0 expansion units.
