Powered By E-MOTION

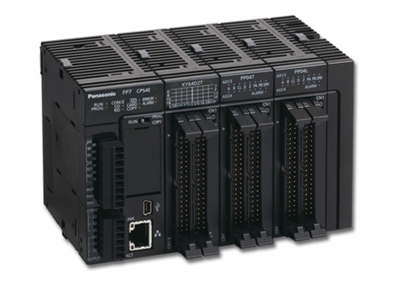

Panasonic: PLC (FP7 Series)
Panasonic PLCs offer an outstanding price-performance benefit which incorporates numerous functions including PID, adaptive filters, electronic cam control, multi-axis interpolation and more, all in a very compact body. Panasonic PLCs undergo extremely rigorous testing during development that far exceeds the demands that will actually be placed on them. This is a guarantee for the long life of the product in end-use applications. Panasonic's PLC programming software, Control FPWIN Pro, was one of the first on the market conforming to the international standard IEC 61131-3. In addition to all of this, Panasonic employs highly trained application engineers that can assist in providing custom designed systems.
FP7 "Seven steps to Higher Efficiency"
Compact size with room for expansion functions.
Equipped with a cassette interface.
Add-on cassettes can be added to the CPU to increase functionality without increasing the footprint of the system.
Up to 16 different units can be connected to a single CPU.
High-capacity SD (SDHC) memory cards of up to 32GB are supported.
High performance (max. 20μs for 60k steps); the processing speed is less affected by frequent Ethernet communication.
FP7 CPU
Equipped with a large memory capacity (up to 220k program steps or up to 500k data words) and a high-speed processor (11ns/step).
Local & remote connectivity: The standard CPU boards with Ethernet interface offer connectivity without limits, from remote programming to monitoring and data logging to FTP server and Modbus TCP.
Security & reliability: Built-in program backup. Production can resume in the event of fault. Original program is immediately to hand.
Traceability: Operational and program editing events are logged. Automatic logs of program download and upload are useful, especially for program debugging.
Maintenance: Hour meter operation - The built-in clock/calendar function can be adjusted via Ethernet.
