Delta Tau: GEO Brick Drive

The Geo Brick Drive combines the intelligence and capability of the Turbo PMAC2 motion controller with IGBT-based drive technology, resulting in a compact, smart 4-, 6- or 8-axis servo drive package.

The flexibility of the Turbo PMAC2 enables the Geo Brick to drive Brush, Brushless or AC induction motors with unsurpassed pure digital DSP performance. The absence of analog signals – required for typical motion controller/drive interfacing – enables higher gains, better overall performance and tighter integration, while significantly driving down costs and setup time.

The Geo Brick’s embedded 32-axis Turbo PMAC2 motion controller is programmable for virtually any kind of motion control application. The built-in software PLCs allow for complete machine logic control.

The Geo Brick Drive supports the following types of motors:

• Three-phase AC/DC brushless, synchronous rotary/linear

• DC brush

• AC Induction, asynchronous – with or without encoder

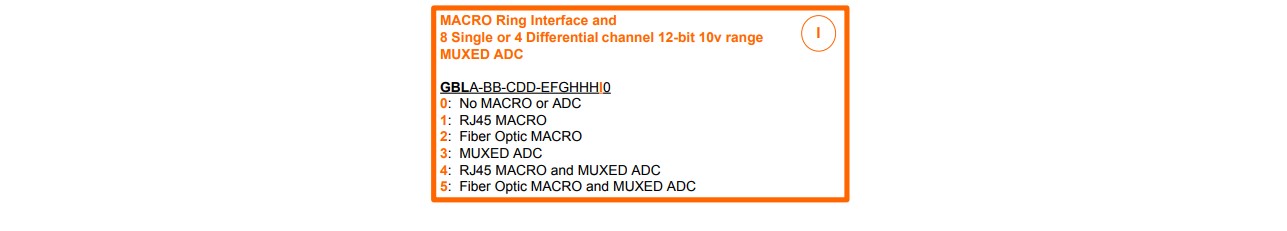

• Stepper output to third party drives or through MACRO connectivity

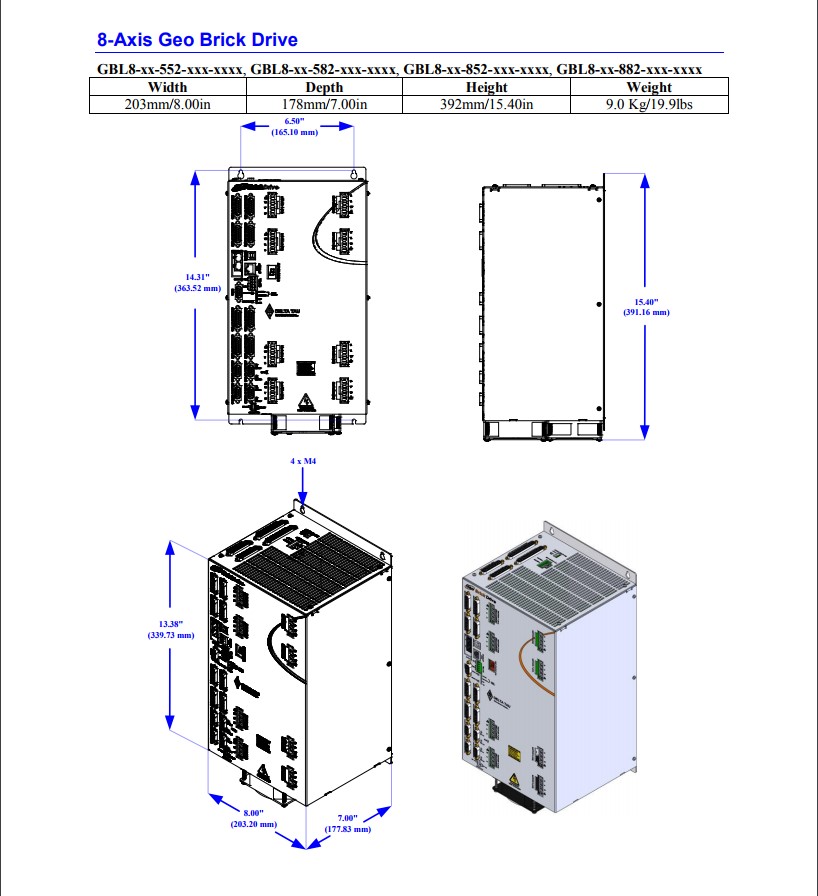

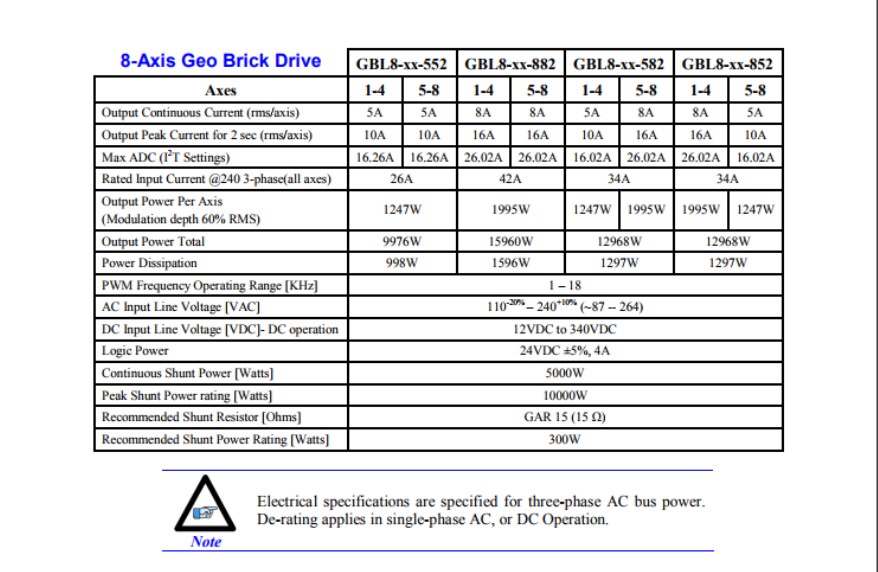

8 Axis controller with 8 axis 5A,AC input 97-265 VAC, or DC operation from 12VDC to 340VDC
