Faulhaber: High Power PMDC Motors (GNM 26 Series)
Faulhaber: High Power PMDC Motors (GNM 26 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: GNM-26


Model No.:


.

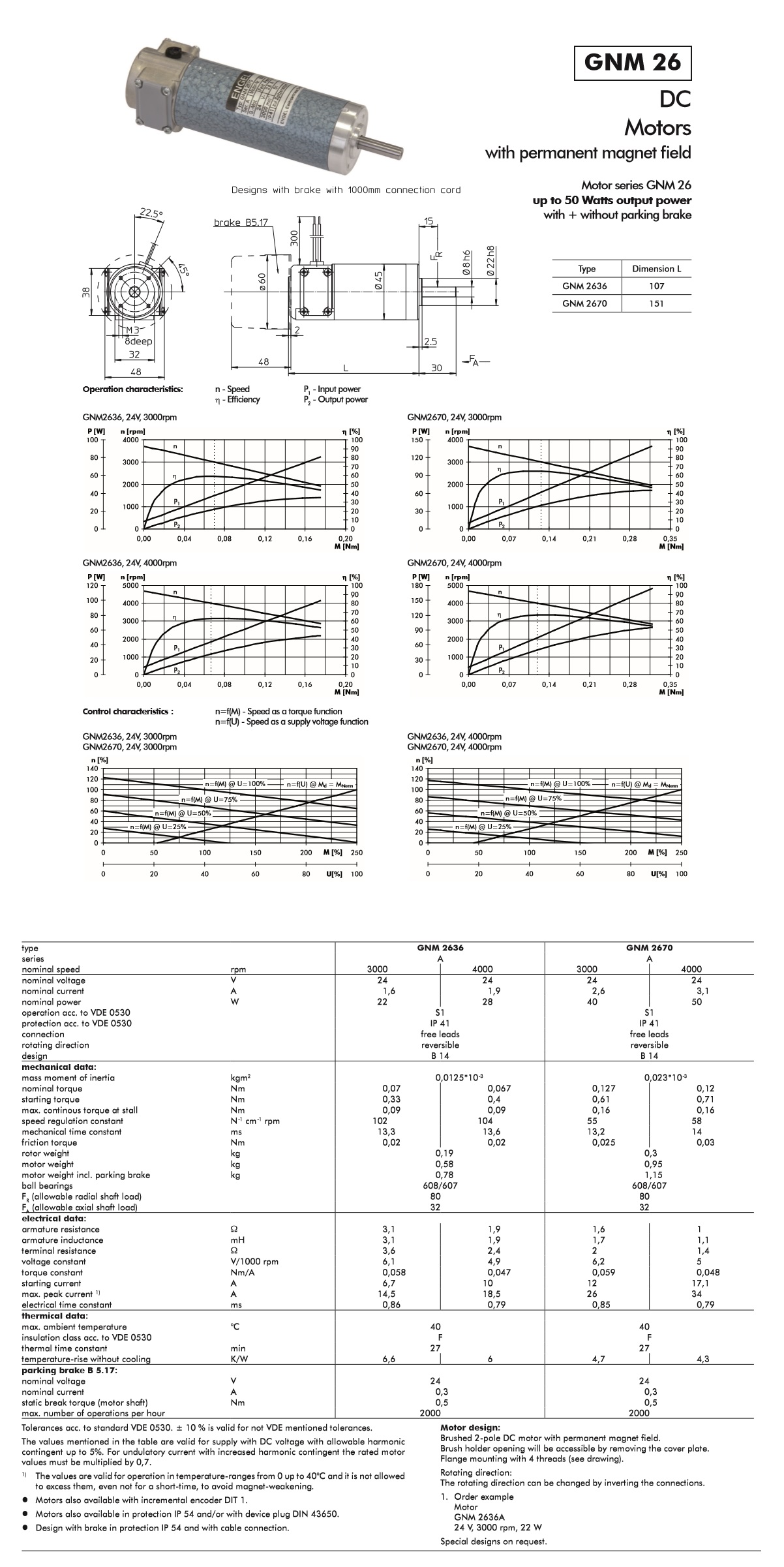

Description Specifications and Drawings

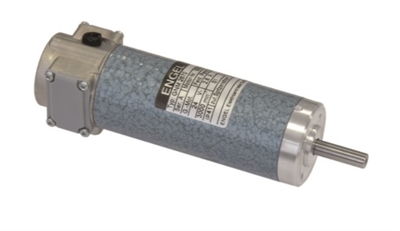

Faulhaber: High Power PMDC Motors (GNM 26 Series)

PMDC Motors are robustly engineered with a brushed 2-pole DC motors and permanent magnetic fields. Their industrial design, high variability and magnetic field allows for maximum efficiency.

GNM 2636A Series

Specifications:

  • Nominal Voltage (VDC): 24

  • Rated Current (ADC): 1.6

  • Nominal Torque (mNm): 0.07

  • Number of Revs: 3000/4000

  • Nominal Power up to (Watts): 22

  • Outer Diameter (mm): 45

GNM 2670A Series

Specifications:

  • Nominal Voltage (VDC): 24

  • Rated Current (ADC): 2.6

  • Nominal Torque (mNm): 0.127

  • Number of Revs: 3000/4000

  • Nominal Power up to (Watts): 40

  • Outer Diameter (mm): 45
