OptoSigma: Goniometers (GOHT-60B Series)

Goniometers are rotation stages that rotate about an axis that is located at a distance above the surface of the stage.
Used for direction adjustment and correction, or tilting and rotation of samples.
Products with different guide mechanisms or feed mechanisms are also available.

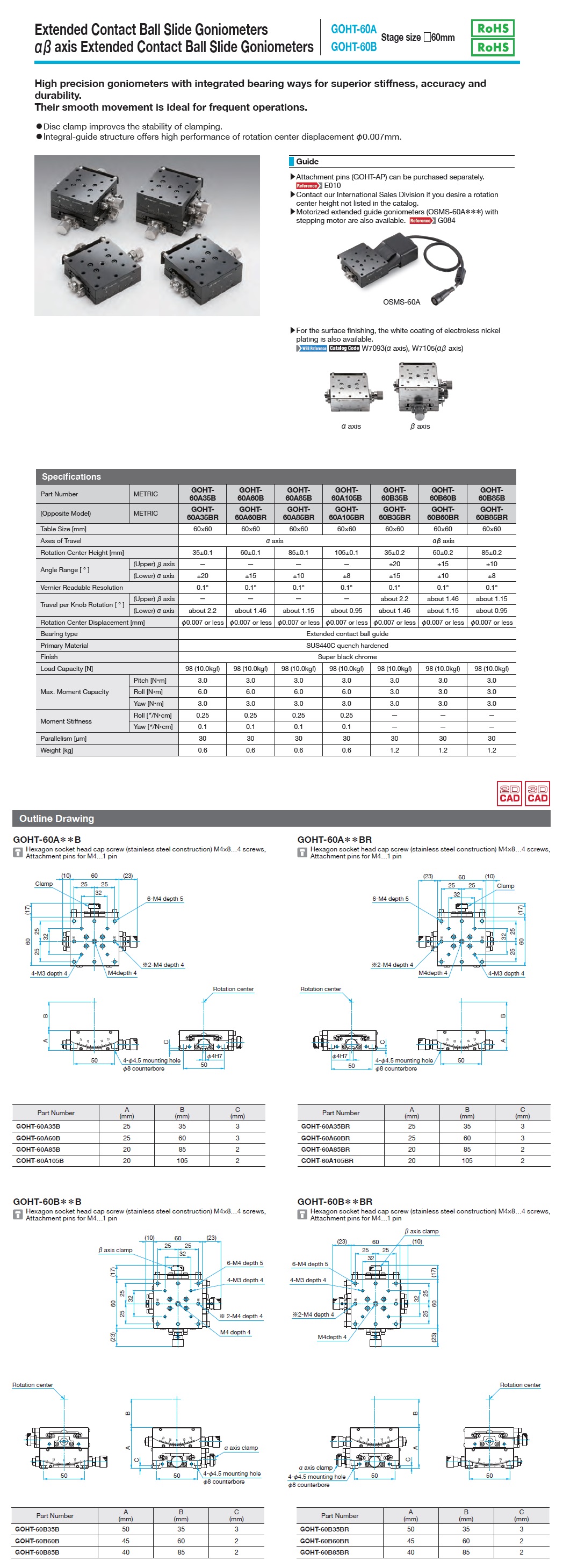

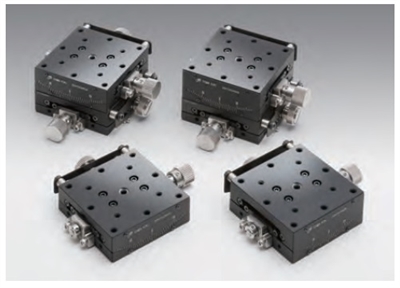

αβ axis Extended Contact Ball Slide Goniometers (GOHT-60B)

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
Their smooth movement is ideal for frequent operations.

  • Disc clamp improves the stability of clamping.

  • Integral-guide structure offers high performance of rotation center displacement φ0.007mm.

Model No.: GOHT-60B35, GOHT-60B35B, GOHT-60B35BR, GOHT-60B35R, GOHT-60B60, GOHT-60B60B, GOHT-60B60BR, GOHT-60B60R, GOHT-60B85, GOHT-60B85B, GOHT-60B85BR, GOHT-60B85R
