MotiCont: Three Phase Positioning Systems (GX-280-01 Series)
MotiCont: Three Phase Positioning Systems (GX-280-01 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: GX-280-01


Model No.:


.

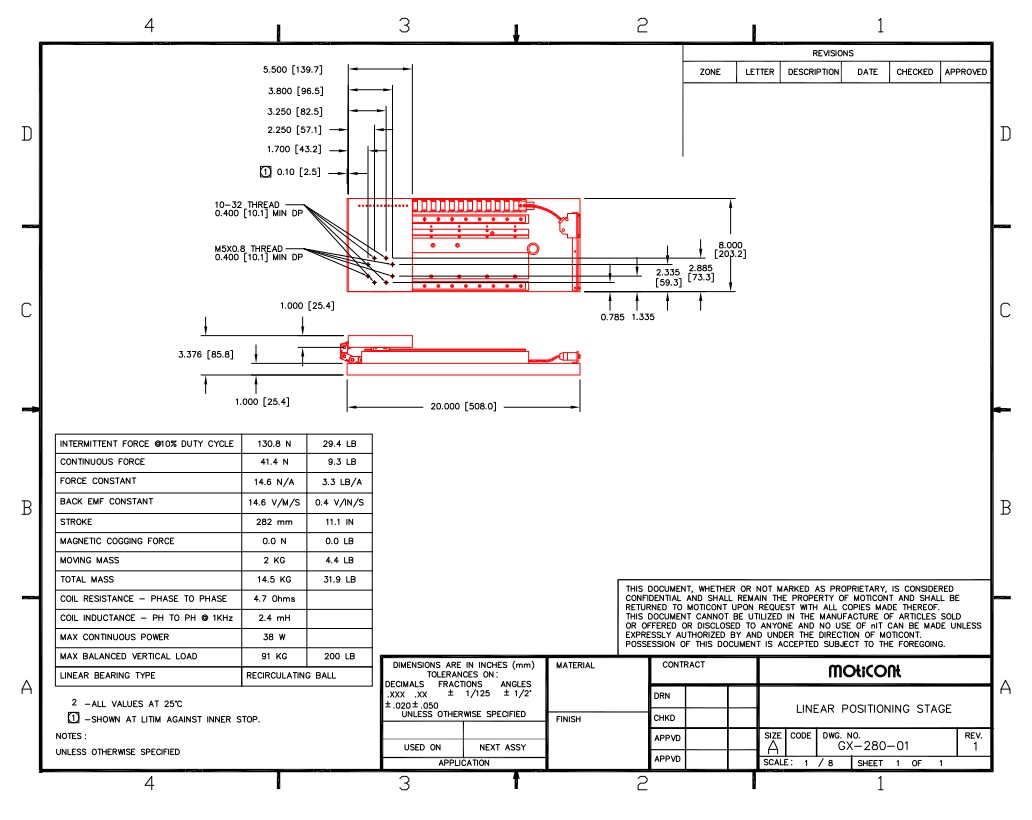

Description Specifications and Drawings


MotiCont: Linear Three Phase Brushless Motor Driven Positioning System (GX-280-01 Series)

Single-Axis

The Linear Three Phase Brushless Motor Driven Positioning System is used in positioning applications where high speed and high accuracy are required. The stage may be used in the following industries; Semiconductor, Disk Drive, Automotive, Medical, Industrial, Optical, Test and Manufacturing.

The direct coupling of the motor to the stage allows for fast acceleration / deceleration and high speed operation.

Features:

  • Low Cost

  • High Speed Positioning

  • Compact Package

  • Integrated Position Feedback Sensor

  • High Force Generation

  • Ball or Cross Roller Bearing Slide

  • Low Inertia

Typical Applications:

  • Automatic Assembly

  • Glass Cutting

  • Dispensing Machine

  • Labeling Machine

  • Laser Cutting

  • Medical Assembly

  • Pick and Place

  • Robotics

  • Screen Printing

  • Welding

GX-280-01-01:

  • Single-axis Servo Motor Driven Positioning Gantry Stage

  • 11” (280 mm) Total Travel

  • 1 micron Resolution

GX-280-01-26:

  • Single-axis Servo Motor Driven Positioning Gantry Stage

  • 11” (280 mm) Total Travel

  • 26 micron Resolution
