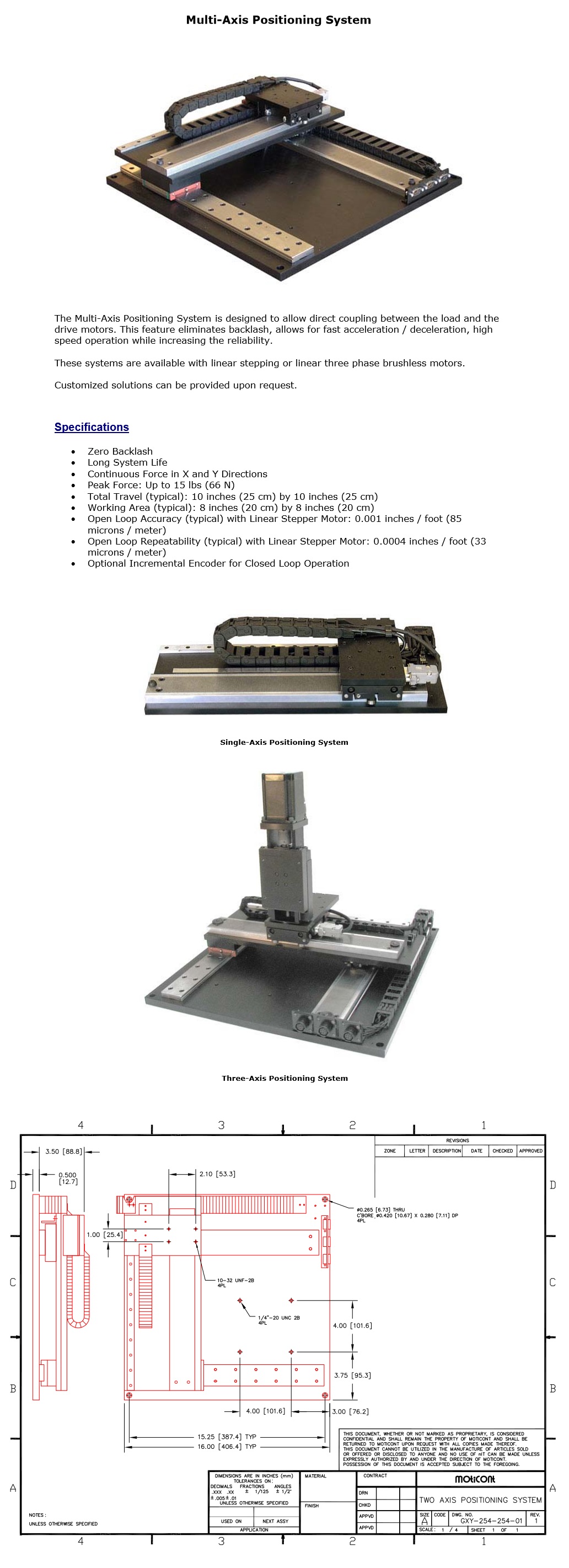

MotiCont: Multi-Axis Positioning Systems (GXY-254-254-01 Series)

The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability. These systems are available with linear stepper and servo motors. Customized solutions can be provided upon request.

Two-axis Stepper Motor Driven Positioning Gantry Stage

Features:

  • Zero Backlash

  • Long System Life

  • Continuous Force in X and Y Directions

  • Peak Force: Up to 15 lbs (66 N)

  • Total Travel (typical): 10 inches (25 cm) by 10 inches (25 cm)

  • Working Area (typical): 8 inches (20 cm) by 8 inches (20 cm)

  • Open Loop Accuracy (typical) with Linear Stepper Motor: 0.001 inches / foot (85 microns / meter)

  • Open Loop Repeatability (typical) with Linear Stepper Motor: 0.0004 inches / foot (33 microns / meter)

  • Optional Incremental Encoder for Closed Loop Operation
