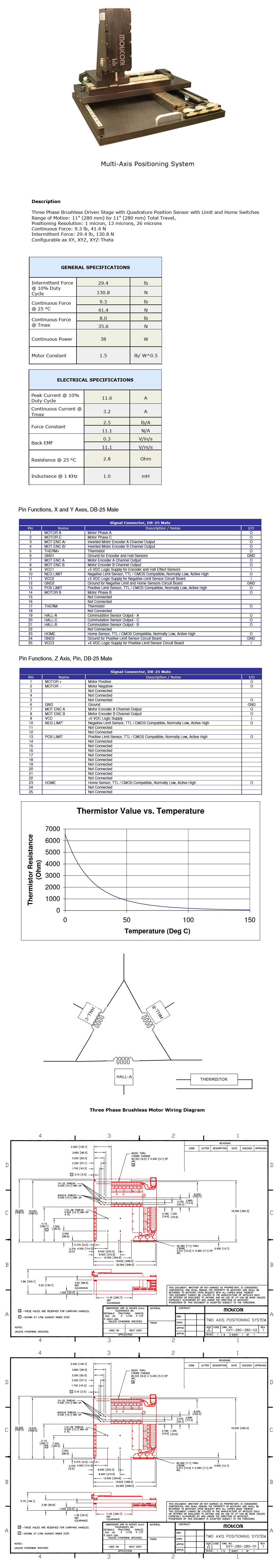

MotiCont: Multi-Axis Positioning Systems (GXY-280-280-01-26 Series)
The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability. These systems are available with linear stepper and servo motors. Customized solutions can be provided upon request.
Two-axis Servo Motor Driven Positioning Gantry Stage
Features:
Zero Backlash
Long System Life
High Speed Positioning
Compact Package
Integrated Position Feedback Sensor
High Force Generation
High Accuracy
Cog Free
High Repeatability
26 Micron Resolution
Specifications: Three Phase Brushless Driven Stage with Quadrature Position Sensor with Limit and Home Switches
Range of Motion: 11” (280 mm) by 11” (280 mm)
Positioning Resolution: 0.001" (25.4 microns)
Continuous Force: 9.3 lb (41.4 N)
Intermittent Force: 29.4 lb (130.8 N)
X-axis Weight: 33.8 lb (15.3 Kg)
Y-axis Weight: 4.7 lb (2.1 Kg)
Y-axis Weight with LMA-051-089-01: 14.6 lb (6.6 Kg)
Configurable as XY, XYZ, XYZ-Theta
Intermittent Force @ 10% Duty Cycle: 29.4 lb (130.8 N)
Continuous Force @ 25 °C: 9.3 lb (41.4 N)
Continuous Force@ Tmax: 8.0 lb (35.6 N)
Continuous Power: 38 W
Motor Constant 1.5 lb/ W0.5
Electrical Specifications:
Peak Current @ 10% Duty Cycle: 11.6 A
Continuous Current @ Tmax 3.2 A
Force Constant: 2.5 lb/A (11.1 N/A)
Back EMF: 0.3 V/in/s (11.1 V/m/s)
Resistance @ 25 °C 2.8 Ohm
Inductance @ 1 KHz 1.0 mH
