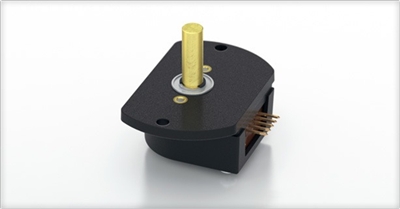

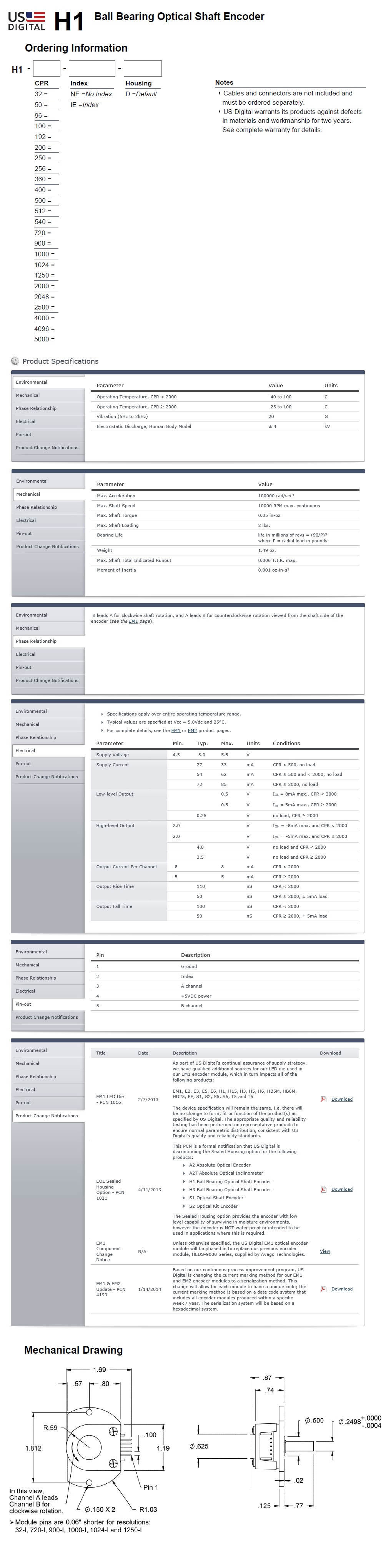

US Digital H1 Ball Bearing Optical Shaft Encoder (Rotary)
The H1 series ball bearing optical shaft encoder has a molded polycarbonate enclosure, which utilizes a 5-pin standard connector. This non-contacting rotary to digital converter is designed to provide digital feedback information.
The H1 is fully assembled with a brass shaft, two 1/4" ID by 1/2" OD heavy duty ball bearings and a mounting plate. The mounting plate comes with 2 mounting holes for screws #4 or smaller. The H1 is normally designed for applications of 10 feet or less. For longer cable lengths, adding a PC4 / PC5 differential line driver is recommended. A connection to the H1 series encoder is made through a 5-pin standard connector (sold separately). The mating connectors are available from US Digital with several cable options and lengths.
Features:
Heavy duty ball bearings track up to 10,000 RPM
2-channel quadrature, TTL squarewave outputs
Optional index (3rd channel)
32 to 5000 cycles per revolution (CPR)
128 to 20000 pulses per revolution (PPR)
-25 to +100C operating temperature
Single +5VDC supply
