AMP: NEMA 23 High Torque Step Motor – Hollow Shaft (HH23 Series)
AMP: NEMA 23 High Torque Step Motor – Hollow Shaft (HH23 Series)

Alternate View

Price: (Members Only)


Order #: HH23


Model No.:

Qty:

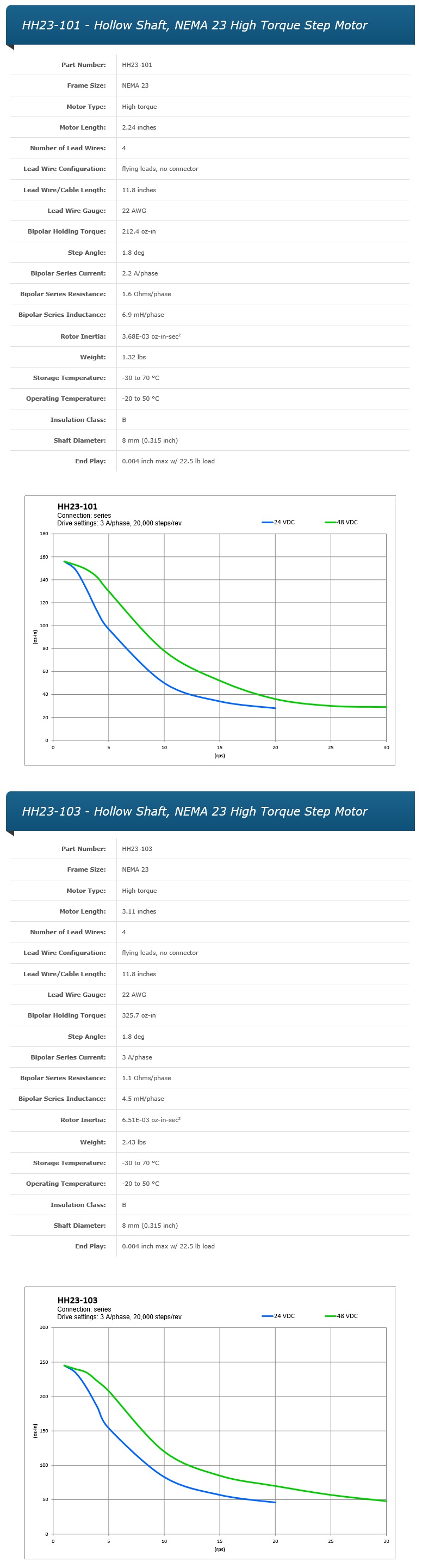

Description Specifications and Drawings


AMP: NEMA 23 High Torque Step Motor – Hollow Shaft (HH23 Series)

HH23-101 Features:

  • Hollow shaft for mounting custom shafts or lead screws

  • High torque design

  • NEMA 23 frame size

  • 2-phase hybrid step motor

  • 1.8 degree step angle

  • Shipped with detachable lead/connector pigtail

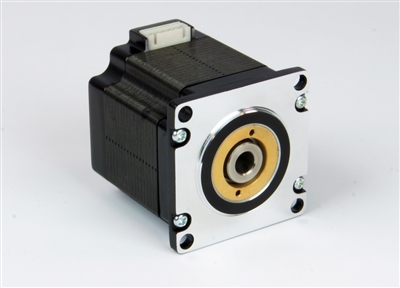

The HH23-101 two-phase stepper motor features a hollow shaft with an 8 mm bore. The hollow shaft allows for the attachment of lead screws and customized shafts without disassembling the motor.

This step motor is suitable for a wide range of motion control applications and is recommended for use with our popular ST5 stepper drives.

HH23-103 Features:

  • Hollow shaft for mounting custom shafts or lead screws

  • High torque design

  • NEMA 23 frame size

  • 2-phase hybrid step motor

  • 1.8 degree step angle

  • Shipped with detachable lead/connector pigtail

The HH23-103 two-phase stepper motor features a hollow shaft with an 8 mm bore. The hollow shaft allows for the attachment of lead screws and customized shafts without disassembling the motor.

This step motor is suitable for a wide range of motion control applications and is recommended for use with our popular ST5 stepper drives.
