Harmonic Drive (Precision Planetary) Gearheads: HPN Series

These gearheads can be easily adapted to any OEM servo motor. Harmonic Drive® gear products offer zero-backlash with gear ratios from 30:1 to 160:1. Precision planetary gearing products are available with gear ratios from 3:1 to 45:1 with backlash maintained below 1 arc-min. High capacity output bearings are utilized for robust and accurate support of loads. Other benefits include flange and shaft output configurations, hollow shaft designs, and sizes ranging from 0.625 inches to over 10 inches in diameter.

Harmonic Gear Principle

Harmonic Drive® gearing utilizes a unique operating principle which is based upon the elastic mechanics of metals. The greatest benefits are the zero-backlash characteristics and the weight and space savings compared to other gears because our gear mechanism consists of only three basic parts. They are the: Wave Generator, Flexspline and Circular Spline.

This simple three element construction combined with the unique operating principle allows extremely high reduction ratio in a very compact and lightweight package. Neither the size nor weight of the gear vary with the reduction ratio. The high performance attributes of this gearing technology including zero backlash, high torque, compact size, excellent positional accuracy and repeatability are all a direct result of the unique operating principle.

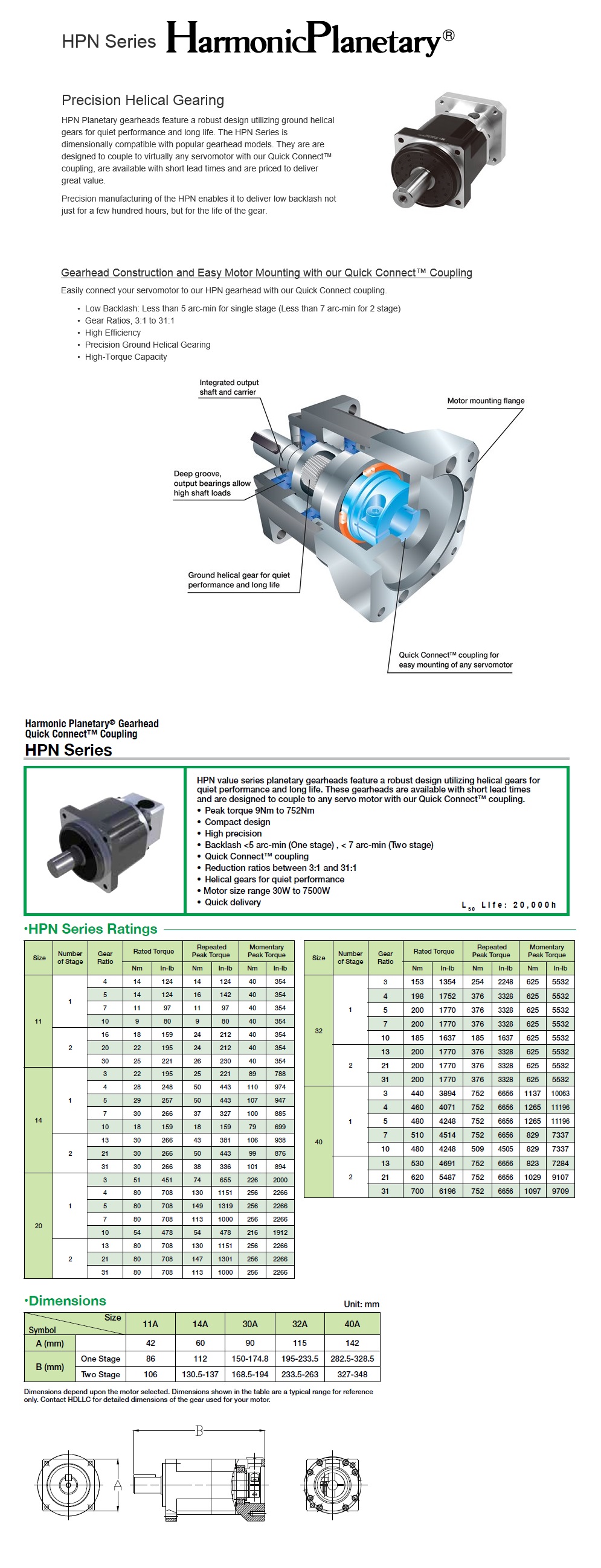

HPN Series: Quick Connect Gearheads

HPN Harmonic Planetary® value series provides a low cost solution without the need to compromise on quality or performance. The HPN Series features helical gears for High –Torque, quiet performance and long life. Backlash of <5 arc minutes (for single stage) is maintained for the life of the gear. Large radial ball bearings support the output shaft for high load capacity. HPN Harmonic Planetary® gears are available with a smooth output shaft or a shaft with a key and tapped center hole. The HPN gearheads are available with short lead times and are designed to couple to any servo motor with our Quick Connect™ coupling. This new value series of planetary gears carry the reputation for quality and reliability for which Harmonic Drive® products are known throughout the world.

Model No.: HPN-11A-10, HPN-11A-16, HPN-11A-20, HPN-11A-30, HPN-11A-4, HPN-11A-5, HPN-11A-7, HPN-14A-10, HPN-14A-13, HPN-14A-21, HPN-14A-3, HPN-14A-31, HPN-14A-4, HPN-14A-5, HPN-14A-7, HPN-20A-10, HPN-20A-13, HPN-20A-21, HPN-20A-3, HPN-20A-31, HPN-20A-4, HPN-20A-5, HPN-20A-7, HPN-32A-10, HPN-32A-13, HPN-32A-21, HPN-32A-3, HPN-32A-31, HPN-32A-4, HPN-32A-5, HPN-32A-7, HPN-40A-10, HPN-40A-13, HPN-40A-21, HPN-40A-3, HPN-40A-31, HPN-40A-4, HPN-40A-5, HPN-40A-7
