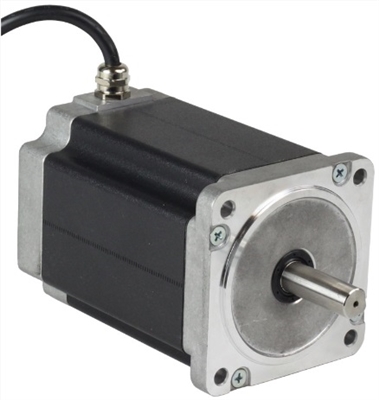

AMP: NEMA 34 High Torque Step Motor (HW34 Series)
Since 1978, Applied Motion Products has specialized in offering two-phase, hybrid step motors in a variety of frame sizes. These motors are designed to work optimally with Applied Motion stepper drives, ensuring smooth motion and high performance in every application. Add an encoder to the rear shaft of an Applied Motion step motor, marry it to an Applied Motion drive equipped with encoder-feedback functionality, and dramatically improve system performance.
The HW34-506 two-phase stepper motor is suitable for a wide range of motion control applications including wet factory environments and outdoor use. The IP65 rating means the motor is dust proof and resistant to lower pressure water jets. Key features of this rating include an integral 10 ft shielded cable, a nickel plated brass cable gland, sealed laminations and a front shaft contact seal. This motor also has an internal corrosion-resistant film coating, further protecting it in wet and humid environments.
A double-shaft version with encoder is available, part number HW34-506D-YAC.
IP65 specifies a product that is dust tight (no ingress of dust; complete protection against contact) and protected against water jets (water projected by a nozzle from any direction shall have no harmful effects).
Features:
2-phase hybrid step motor
Rated IP65 for wet and dusty environments
High torque design
Standard NEMA 34 dimensions
Integral 10 ft shielded cable w/ cable gland
Sealed laminations
Front shaft seal
Single shaft version standard
Double shaft version with encoder available
The HW34-696 two-phase stepper motor is suitable for a wide range of motion control applications including wet factory environments and outdoor use. The IP65 rating means the motor is dust proof and resistant to lower pressure water jets. Key features of this rating include an integral 10 ft shielded cable, a nickel plated brass cable gland, sealed laminations and a front shaft contact seal. This motor also has an internal corrosion-resistant film coating, further protecting it in wet and humid environments.
A double-shaft version with encoder is available, part number HW34-696D-YAC.

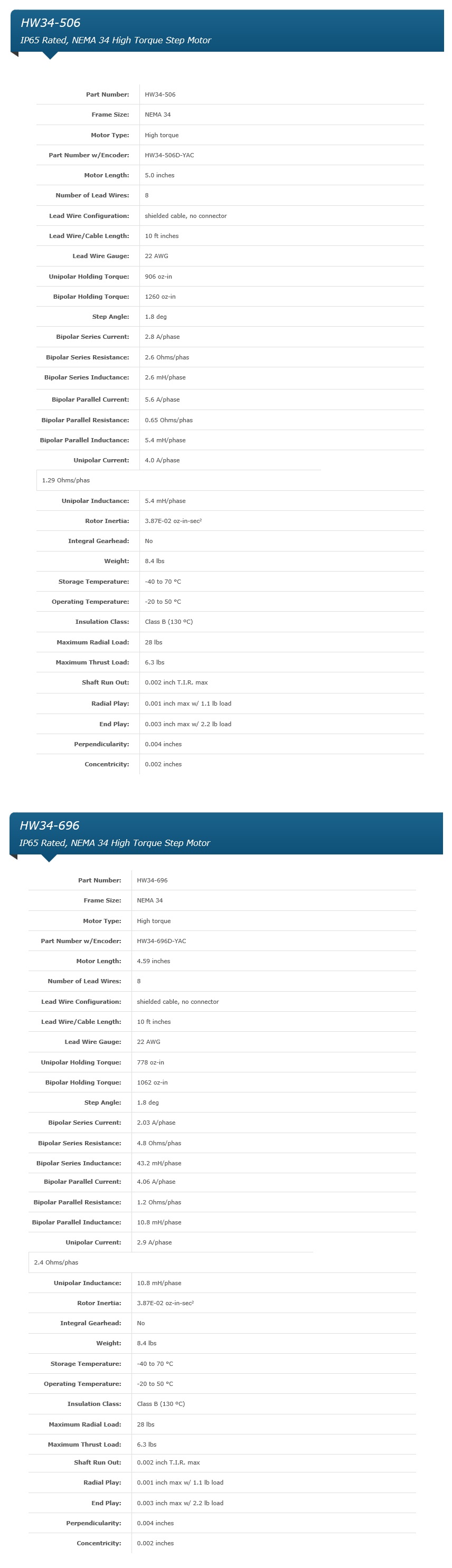

Model No.: HW34-506, HW34-506D-YAC, HW34-696, HW34-696D-YAC
