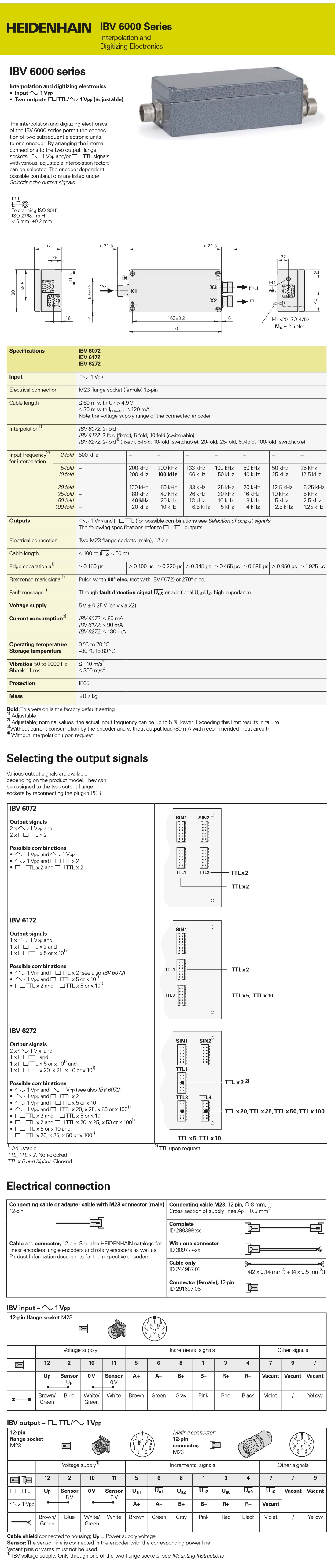

Description Specifications and Drawings

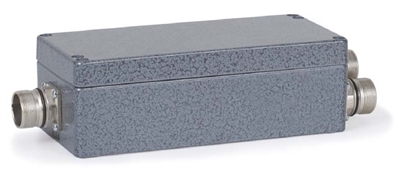

Heidenhain: Interface Electronics (IBV 6000)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


Interpolation and Digitizing Electronics:

  • Input Signals: 1 VPP

  • Two Output Signals: 1 VPP and TTL


Model No.:

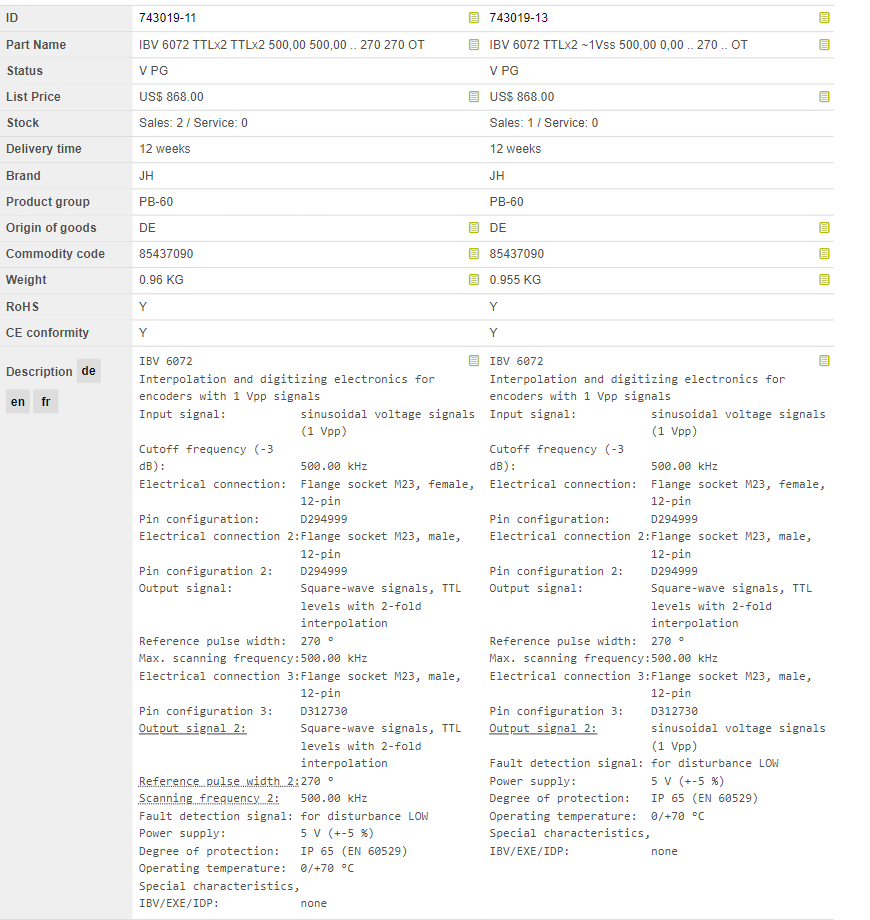

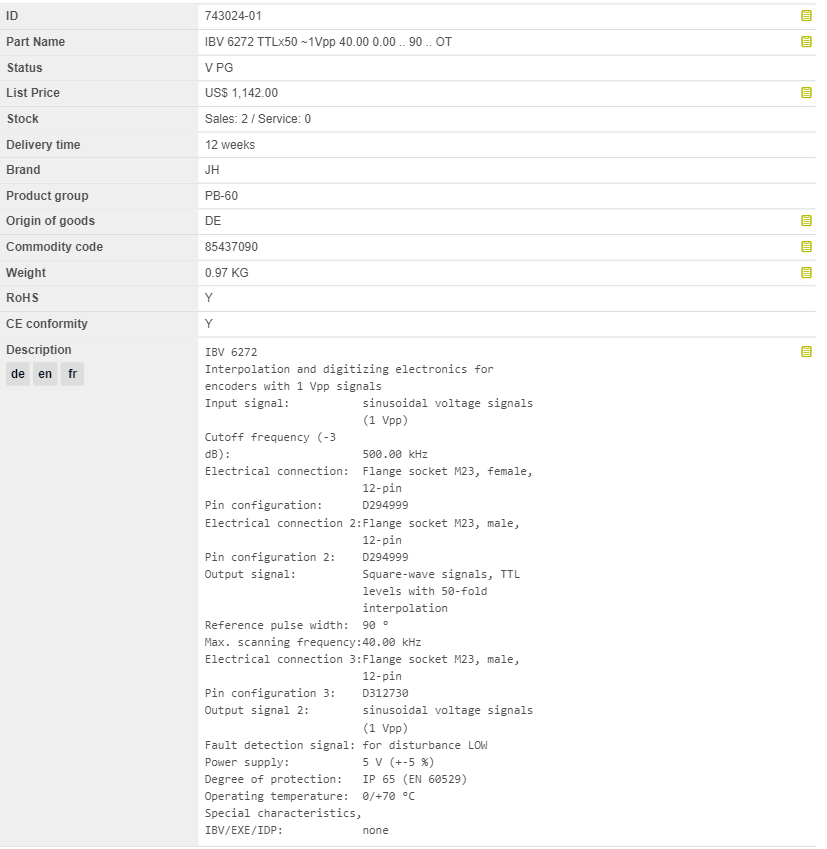

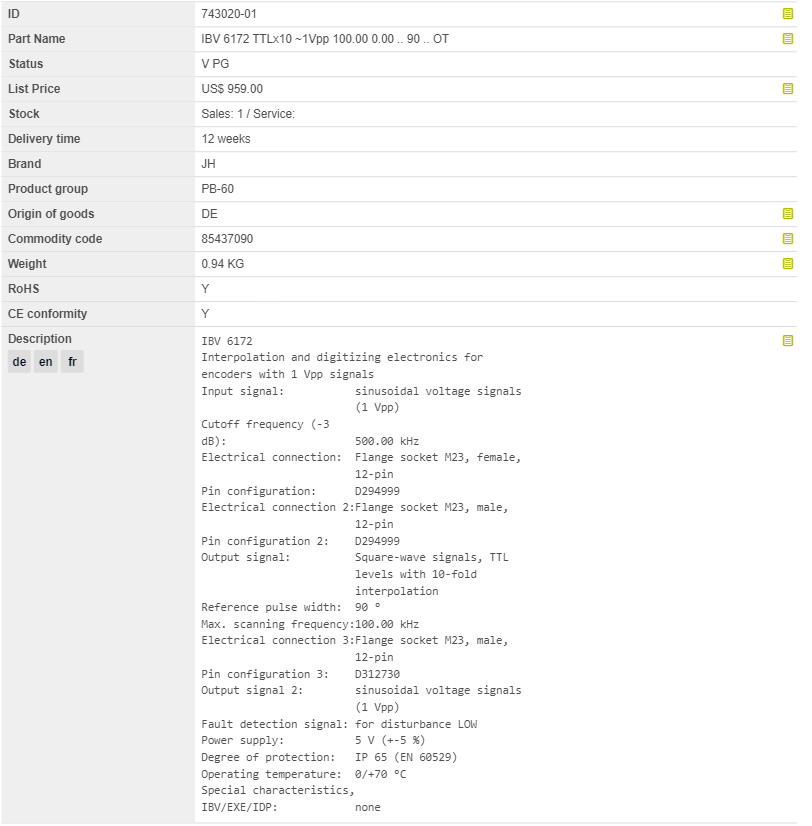

IBV 6072, IBV 6172, IBV 6272
