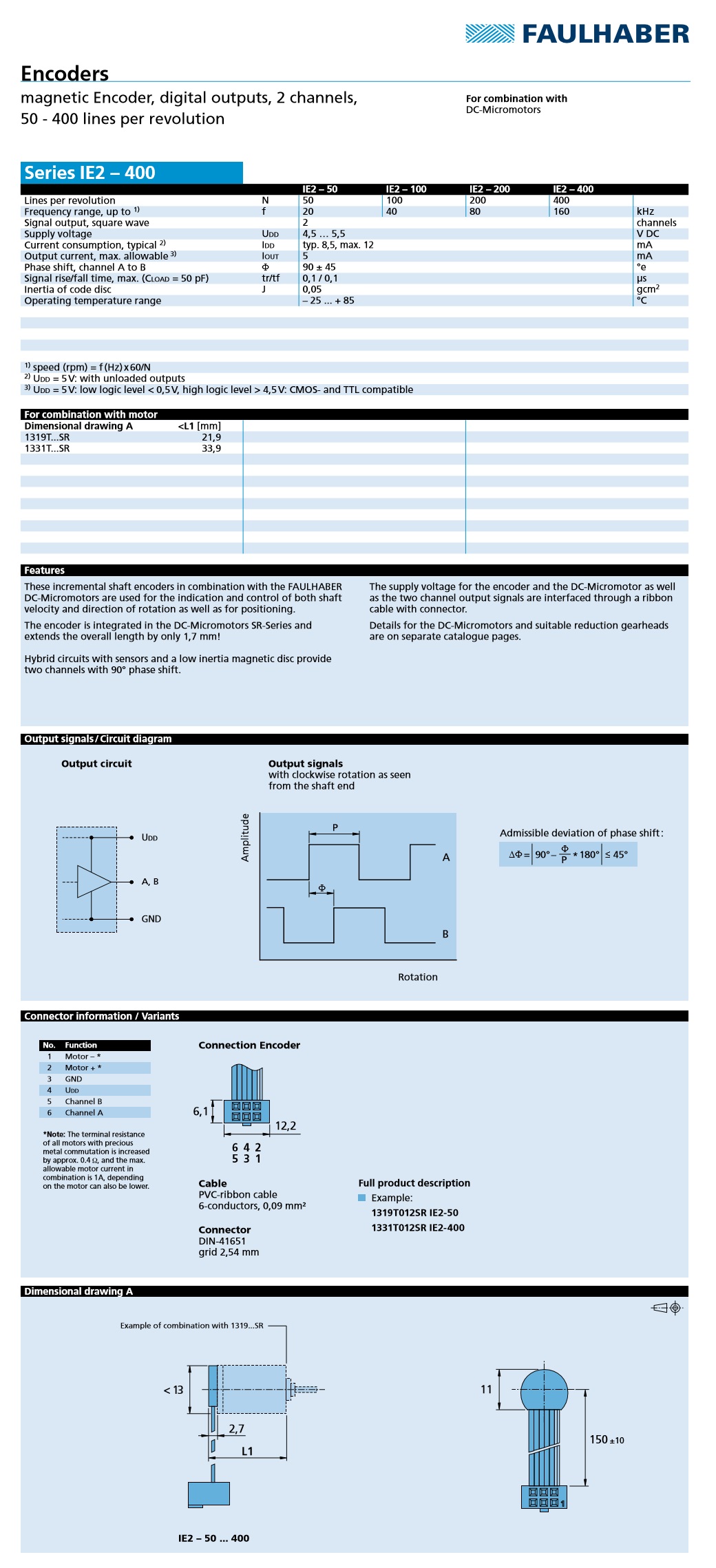

Description Specifications and Drawings

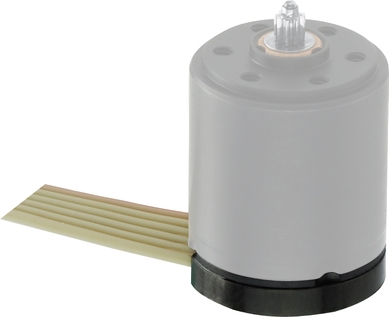

FAULHABER: Encoders (IE2-400 Series)

Incremental encoders - Two channels

The FAULHABER shaft encoders in combination with the DC-Micromotors and Brushless DC-Servomotors are designed for both indication and control of both shaft velocity and direction of rotation as well as for positioning

The encoders of the Series IE2 are integrated in the DC-Micromotors SR-Series and extend the overall length by only 1,4 mm!

Features and benefits

  • Wide range of resolutions to fit the application

  • Compact design as integrated or attachment type

  • CMOS- and TTL-compatible

  • Low power consumption

Specifications:

  • Dimension (mm): Ø13

  • Technology: Magnetic

  • Pulse per Revolution: 50, 100, 200, 400

  • Signal Output: Digital

Model No.: IE2-100, IE2-200, IE2-400, IE2-50
