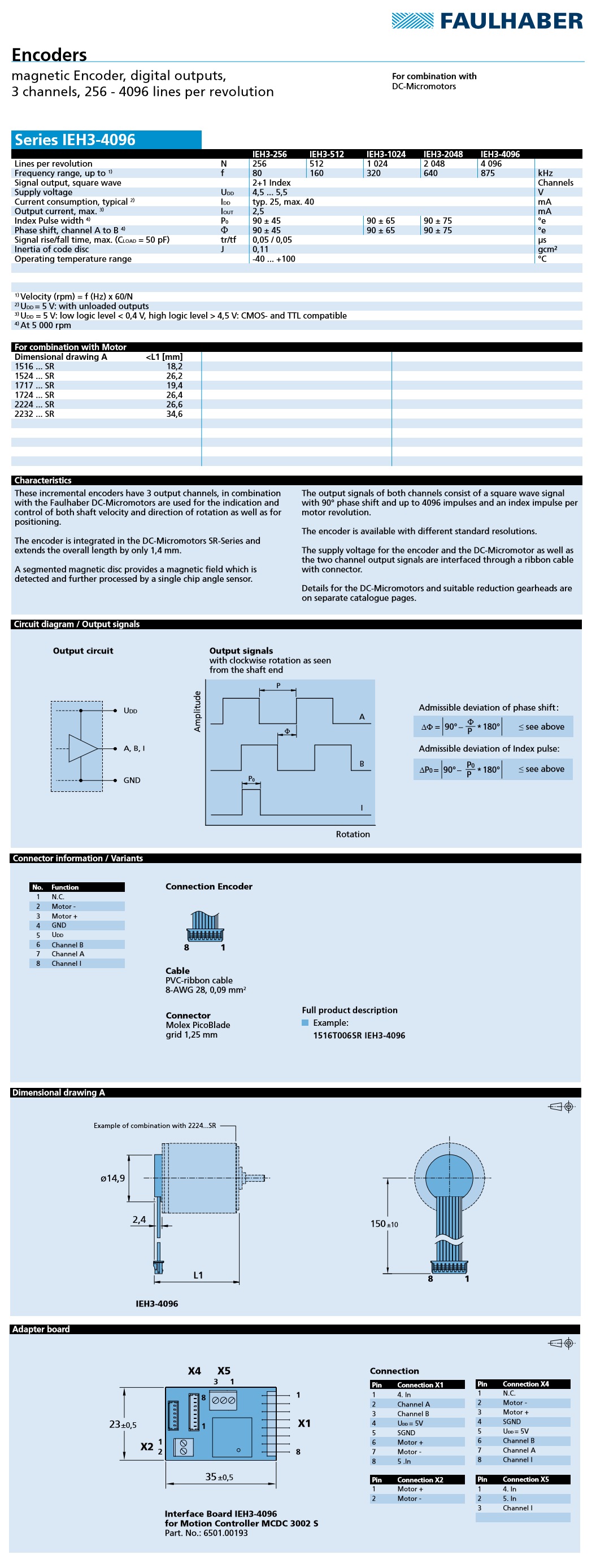

Description Specifications and Drawings


FAULHABER: Encoders (IEH3-4096 Series)

Incremental encoders - Three channels

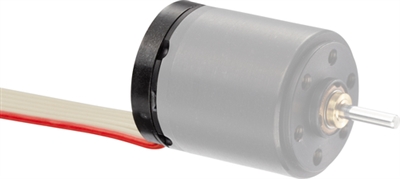

The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.

Features and Benefits:

  • Compact modular system

  • A wide range of resolutions are available

  • Index channel

  • Line Drivers are available

Specifications:

  • Dimension (mm): Ø18.2 ... 34.6

  • Technology: Magnetic

  • Pulse per Revolution: 256, 512, 1024, 2048, 4096

  • Signal Output: Digital

Model No.: IEH3-256, IEH3-512, IEH3-1024, IEH3-2048, IEH3-4096
