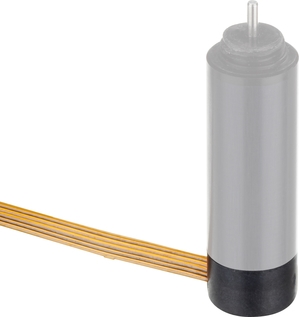

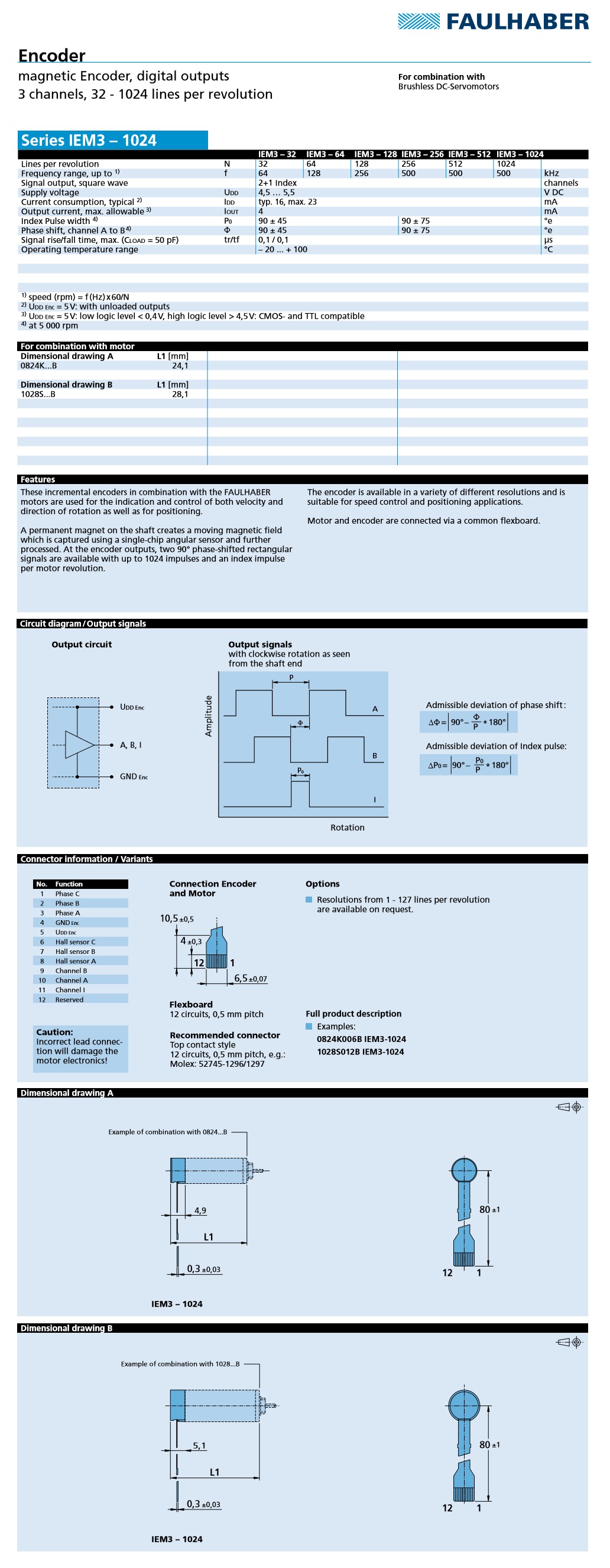

FAULHABER: Encoders (IEM3 1024 Series)
Incremental encoders - Three channels
The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.
Features and Benefits:
Compact modular system
A wide range of resolutions are available
Index channel
Line Drivers are available
Specifications:
Dimension (mm): Ø8 x 4.9
Technology: Magnetic
Pulse per Revolution: 32, 64, 128, 256, 512, 1024
Signal Output: Digital
Model No.: IEM3-32, IEM3-64, IEM3-128, IEM3-256, IEM3-512, IEM3-1024
