For a comfortable issue of measured values RSF Elektronik offers PC interface cards, subdividing electronics as well as the new relaunched digital readout Z 300. Z 300 replaces the legacy model of the Z 7xx series.

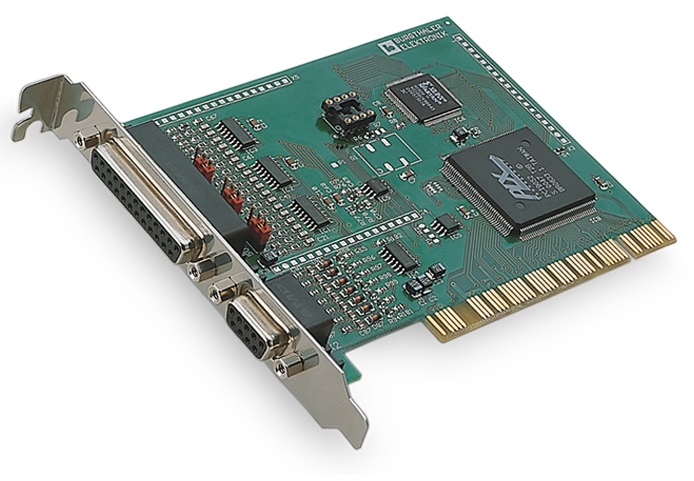

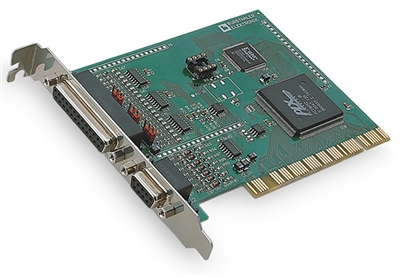

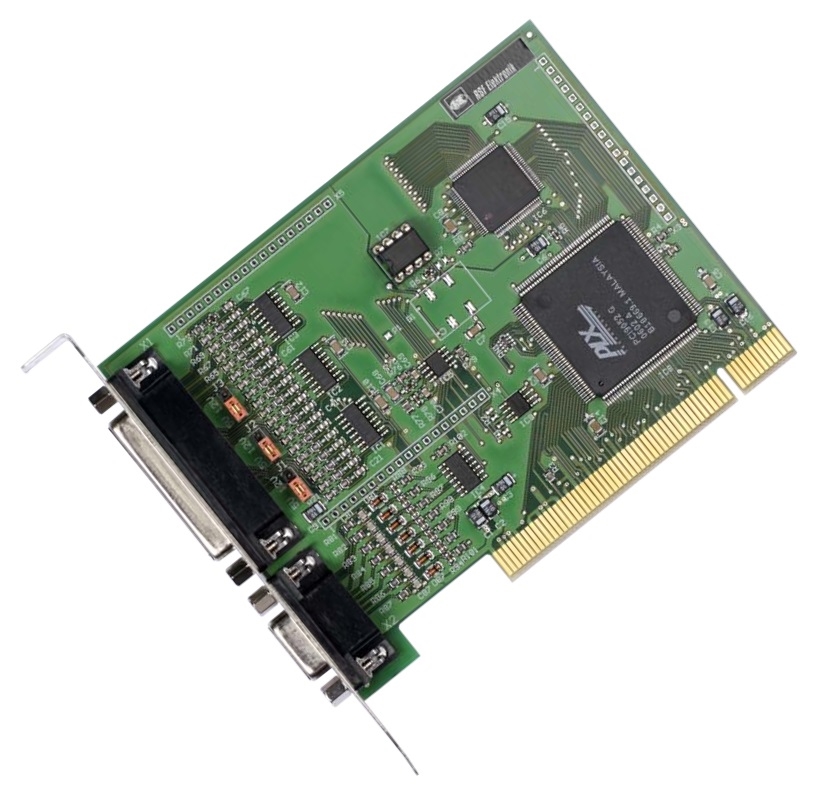

IFC 430R is a PC expansion board with PCI interface for the acquisition and evaluation of encoder signals. It can also be used for all standard counting functions (event counter, frequency counter etc.).
Latch logic of the count values
Asynchronous latch individually for each channel by software, encoder reference mark or external signal
Synchronous latch of several channel by software, timer or external signal
Output signal for cascading several cards; can be programmed for software sync or timer sync
Counter Operating Modes
Three counter channels (32 bits each)
Counter Interface
Three encoder-inputs electively Iss, Uss, digital
Input frequency:
Max. 4 MHz with delta signals (RS 422)
2 MHz with single-end signals
PC Bus
Version 2.1
I/O-Interface
Six inputs that can be used as reference pulse inhibitors or as asynchronous latch signals
One input for synchronous latch of several channels
One output (TTL) for cascading several cards
Software
Test and demo software with sample programs
