Delta: Industrial Fieldbus Solution (IFD6503 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

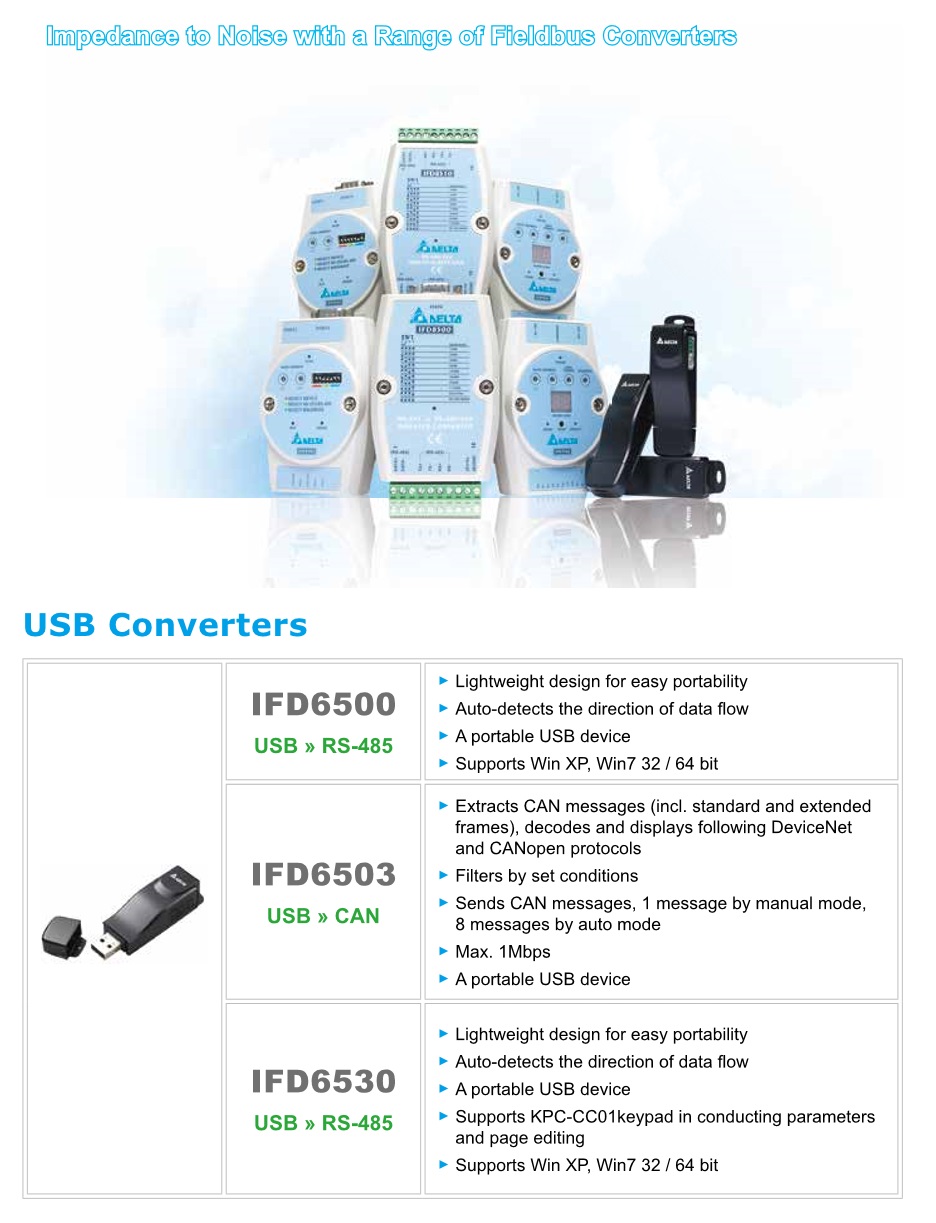

CANopen Communication Devices (IFD6503 Series)

  • Flexible configuration

  • Supports CANopen DS301 and DSP402 protocols

  • Conducts multi-axis, high-speed and intricate motion control by max. baud rate 1M bps

Features:

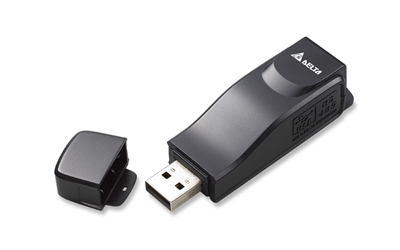

  • A USB/CAN communication converter

  • Extracts CAN message (incl. standard & extended frames), decodes and displays following DeviceNet and CANopen protocols.

  • Filters by set conditions

  • Sends CAN messages, 1 message by manual mode, 8 messages by auto mode

  • Max. baud rate: 1M bps

  • A portable USB device

Specifications:

  • Power supply: No external power supply required

  • Power consumption: 0.6 W

  • Insulation voltage: 500 VDC

  • Baud rate: 10k, 20k, 50k, 100k, 125k, 250k, 500k, 800k, 1M bps

  • USB connector: A type (plug)

  • RS-485 terminal: RJ-45 (8-pin)

  • Dimensions (L×W×H): 3.15×0.89×0.83in (80×22.5×21.2mm)
