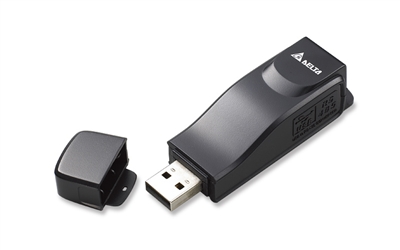

Delta: Industrial Fieldbus Solution (IFD6530 Series)
Delta: Industrial Fieldbus Solution (IFD6530 Series)



Price: (Members Only)


Availability: Usually Ships in 24 to 48 Hours
Order #: IFD6530
.

Description Specifications and Drawings


Delta: Industrial Fieldbus Solution (IFD6530 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

Modbus Serial Communication Devices (IFD6530 Series)

  • Supports Modbus serial communication

  • Offers additional RS-232, RS-422 and RS-485 ports and conversions among channels for various on-site demands

Features:

  • A USB/RS-485 communication converter for C2000 series AC motor drive only

  • Offers 9V power supply

  • Supports keypad (KPC-CC01) for VFD series AC motor drive in conducting parameter storage and page editing in TPEditor software

  • Supports baud rate 75 ~ 115,200 bps

  • No external power supply required

  • Auto-detects the direction of data flow

  • A USB portable device

Specifications:

  • Power supply: No external power supply required

  • Power consumption: 0.6 W

  • Insulation voltage: 1,000 VDC

  • Baud rate: 75, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

  • USB connector: A type (plug)

  • RS-485 terminal: RJ-45 (8-pin)

  • Dimensions (L×W×H): 3.15×0.89×0.83in (80mm×22.5mm×21.2mm)
