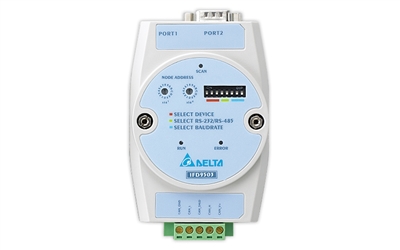

Delta: Industrial Fieldbus Solution (IFD9503 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

CANopen Communication Devices (IFD9503 Series)

  • Flexible configuration

  • Supports CANopen DS301 and DSP402 protocols

  • Conducts multi-axis, high-speed and intricate motion control by max. baud rate 1M bps

Features:

  • Supports CANopen protocol

  • Connectable to all Deltas industrial automation products

  • Isolation in CANopen channel (incl. power supply)

  • Passed full compatibility test

Specifications:

  • Transmission method: CAN

  • Electrical isolation: 500 VDC

  • Connector: Removable, 5.08mm

  • Transmission cables: 2 communication cables, 2 power cables, 1 shielded cable

  • Serial baudrate: 10k, 20k, 50k, 125k, 250k, 500k, 800k, 1M bps

  • Power supply voltage: 24 VDC (-15 to 20%)

  • Current: 28 mA (typical), 125 mA impulse current (24 DC)
