Delta: Industrial Fieldbus Solution (IFD9507 Series)
Delta: Industrial Fieldbus Solution (IFD9507 Series)


Price: (Members Only)


Order #: IFD9507
Qty:

Description Specifications and Drawings


Delta: Industrial Fieldbus Solution (IFD9507 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

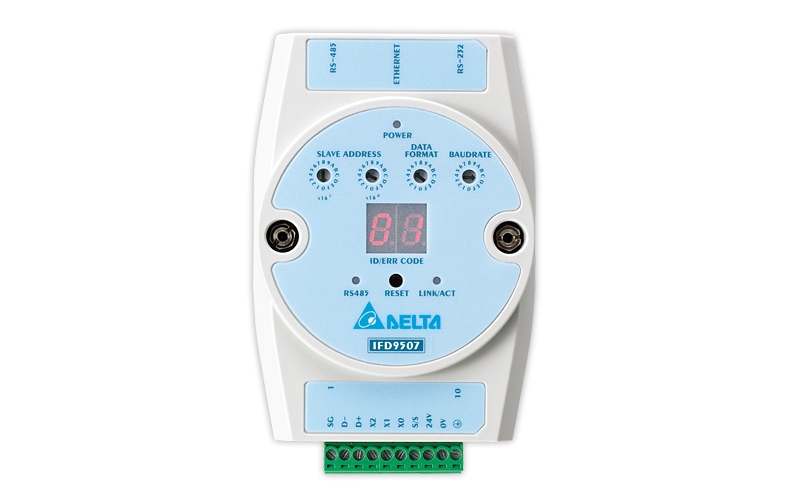

EtherNet/IP Communication Device (IFD9507 Series)

  • Supports connection with EtherNet/IP host devices

  • Compatible with Ethernet

  • Offers data collection, control and synchronization functions

Features:

  • Isolation in RS-485 channel (incl. power supply)

  • Supports EtherNet/IP protocol

  • Smart Monitor

  • Supports webpage setup & on-line monitoring

  • Serial Virtual COM available

  • 3 e-mail alarms (DI)

Specifications:

Network Interface

  • Transmission method: IEEE 802.3, IEEE 802.3u

  • Transmission interface: RJ-45 MDI/MDIX, no jumper cable required

  • Baud rate: 10/100M bps, auto-detection

  • Network protocols: ICMP, IP, TCP, UDP, DHCP, SMTP, Modbus over TCP/IP, EtherNet/IP

  • Power supply voltage: 24 VDC (-15 to 20%)

  • Power consumption: 3 W

  • Insulation voltage: 500 V

RS-485 Interface

  • Connector 1: RJ-11, 10-pin feed through terminal

  • Connector 2: Removable

  • Transmission method: RS-485

  • Serial baudrate: 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps

  • Data type: Modbus ASCII/RTU, user-defined
