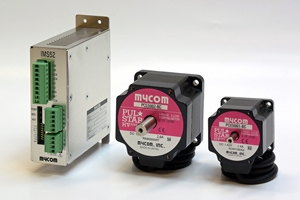

MYCOM: 5-Phase Stepper Motor (IMS52 Series)

Features:

  • Wide range power supply voltage

  • Easy wiring

  • Power-supply voltage: Single-phase 100-220V ± 10% 50 / 60Hz

  • Power consumption: 500VA or less

  • Drive system: Star bipolar; constant-current system

  • Drive current: 0.75A/phase, 1.4A/phase (Current value switching)

  • Step angle: Full step (FULL) half- step (HALF)

  • Ambient temperature and humidity: 0 ~ + 40 ℃, No freezing or condensation, 80% or less

  • Storage temperature and humidity: -10 ~ + 60 ℃, No freezing or condensation, 80% or less

  • Operating Height : Less than 1,000m from sea level

  • Atmosphere: In the room without corrosive gas, inflammable gas or dust, without splashing water or oil.

  • Mass: 700g or less

  • External dimensions: 165 × 138 × 48mm

  • Target motor: PCE5641-AC(BC), PCE5661-AC(BC), PCE5691-AC(BC), PCE5961-AC(BC), PCE5991-AC(BC), PCE59131-AC(BC), PF564-AC(BC), PF566-AC(BC), PF569-AC(BC), PF596-AC(BC), PF599-AC(BC), PF5913-AC(BC)

Signal input:

  • 1 pulse method (PULSE, CW / CCW), 2 pulse method (CW, CCW), the current off (CO)

  • Photo -coupler input resistance 220Ω

  • Input signal voltage L: 0-0.5V H: 4-5V

Signal output:

  • Excitation origin signal (MONI) overheat (HEAT)

  • Photo -coupler open collector output 25V 10mA or less

Function:

  • Pulse input method switch

  • Automatic current down (A.CD)

  • Automatic current off (A.CO)

  • Drive current off (CO)

  • Rage origin signal (MONI) output

  • Overheat (HEAT) signal output

  • Current setting switch

Dielectric strength voltage:

  • No abnormality detected after the application of the below voltage among each terminal for one minute in normal temperature and humidity

  • Power input and motor line - between the PE terminal

  • Power input and motor line - between the signal input and output terminals

Insulation resistance:

  • In normal temperature and humidity , the values measured at DC500V are more than 100MΩ

  • Power input and motor line - between the PE terminal

  • Power input and motor line - between the signal input and output terminals
