PMD: Digital Drives (ION/CME Series)
A programmable version of the standard ION model, the ION/CME facilitates the capability for designers to download and run motion programs directly on the ION drive itself. This feature off-loads the host, enables standalone operation and increases the flexibility to distribute motion programs throughout the machine. Programs can now be downloaded to the ION/CME drive over UDP and TCP Ethernet protocols, in addition to serial and CANbus communications options.

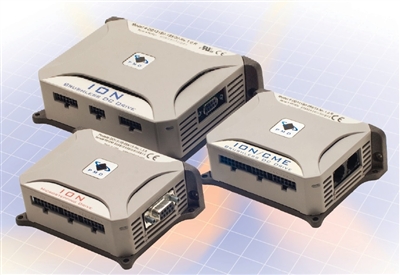

ION®/CME Digital Drive
Programmable Digital Motion Drive for Step, DC Brush, and Brushless DC Motor Control
A programmable version of the standard ION model, the ION/CME facilitates the capability for designers to download and run motion programs directly on the ION drive itself. This feature off-loads the host, enables standalone operation and increases the flexibility to distribute motion programs throughout the machine. Programs can now be downloaded to the ION/CME drive over UDP and TCP Ethernet protocols, in addition to serial and CANbus communications options.
With the ION/CME, designers need not depend upon a dedicated host PC or host controller. By allowing embedded storage and execution of motion control code, designers may increase response times and efficiencies of their designs.
C-Motion® Engine
The embedded code execution capability is made possible by the addition of a dedicated module on the ION called the C-Motion® Engine (CME). Program development is simplified using PMD's C-Motion development environment, which includes an extensive library of motion control code, with many complete examples available to customize and build upon. C-Motion enables machine designers to quickly program motion for demanding applications using standard C/C++ programming.
Powerful
IONs provide very high power density in a rugged, flexible form factor. They perform profile generation, servo compensation, stall detection, field oriented control, digital torque control and many other motion control functions. Additional features include Ethernet, CAN bus or serial communications and extensive general purpose digital and analog I/Os.
Easy To Use
Working with the ION Digital Drive, PMD’s powerful Pro-Motion® GUI makes it easy to graph and analyze axis performance, while C-Motion® and VB-Motion® allow users to develop their own applications using C/C++ or Visual BASIC.
Built on the Magellan® Motion Processor
ION ’s Magellan® Motion Processor provides a powerful instruction set to control the motion application, monitor performance and synchronize overall drive behavior. User selectable profiling modes include S-curve, trapezoidal, velocity contouring and electronic gearing. Servo loop compensation utilizes PID control, velocity and acceleration feedforward, and dual bi-quad filters. Additional features include limit switches, breakpoints, secondary encoder input for master-slave and electronic gearing applications.
Features:
DC brush, BLDC & step motor versions
Ethernet, CANbus or serial communications
S-curve, trapezoidal, velocity contouring, electronic gearing profiles
Pulse & direction input
Position and current loops
Field Oriented Control (FOC)
Sinusoidal commutation
Advanced PID filter with velocity and acceleration feedforward
Programmable acceleration and deceleration
Stall detection & auto current reduction
Auxiliary encoder input supports gearing & dual loop applications
Up to 9.8 A continuous, up to 21 A peak current
40 kHz PWM frequency
102 µsec servo loop rate
Up to 8 general purpose user inputs and 6 general purpose outputs
+/- 10V high resolution 16-bit ADC input
Programmable dual biquad filters
Execution of C-Motion code at up to 96 MIPS
256 KB of programmable user code space
C-Motion Engine & Pro-Motion development tools
