PMD: Digital Drives (500 & 3000 Series)
Digital Motor Drive for Step, DC Brush, and Brushless DC Motors
The ION® 500 & 3000 Digital Drives are compact, fully enclosed digital drives that provide high performance motion control, network connectivity and power amplification for DC brush, brushless DC or step motors. The ION 500 is rated at 500 Watts, while the ION 3000 is rated at 3,000 Watts.
The ION® family of products are compact, fully enclosed digital drives that provides high performance motion control, network connectivity and power amplification for DC brush, brushless DC or step motors.
High Power Density
Using advanced MOSFETs and surface mount technology, ION provides very high power density in a rugged, flexible form factor. It performs profile generation, servo motor compensation, stall detection, field oriented motor control, digital torque control and many other motion control functions. ION drives provide CANBus or serial communications and are ideal for medical, scientific, semiconductor, automation, industrial and robotic applications. User selectable profiling modes include S-curve, trapezoidal, velocity contouring and electronic gearing. Ideal for dc brush motor control, step motor control, or DC brush motor control.

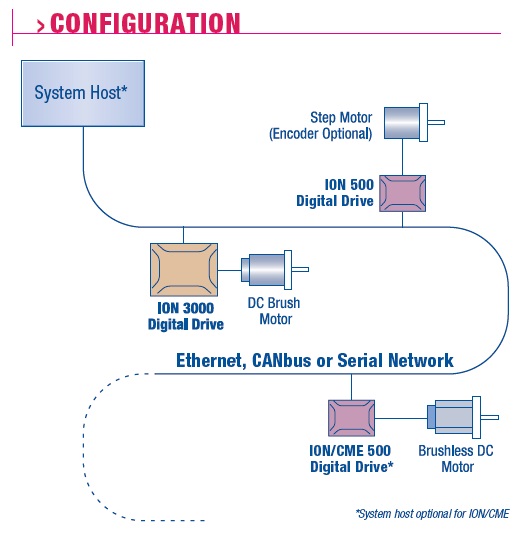

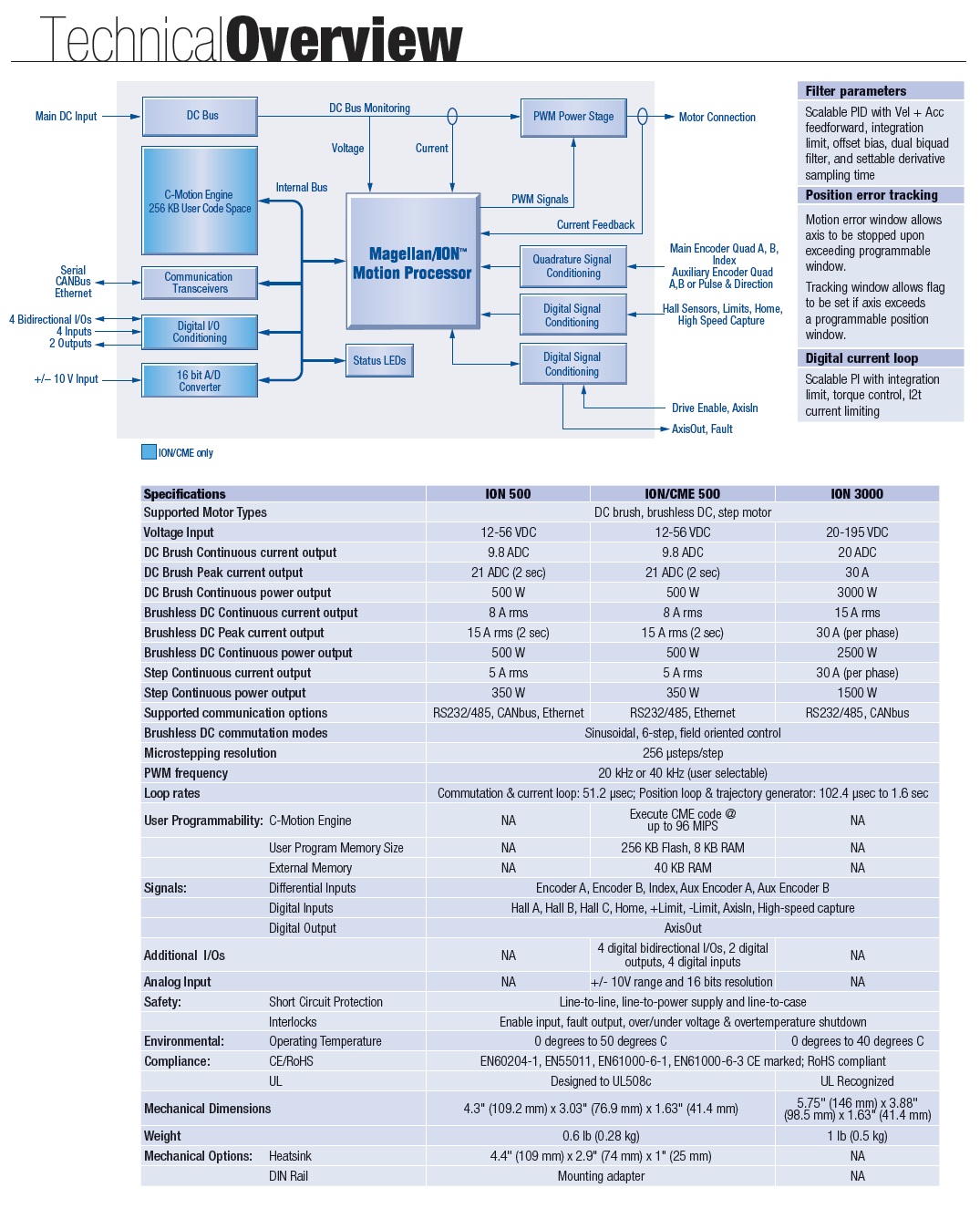

High-Performance Motion Control Feature Set
The ION Digital Drive accepts commands over the network such as position, velocity, acceleration and jerk from the host and generates a corresponding trajectory on-the-fly. Servo loop compensation utilizes a full 32-bit position error, PID with velocity and acceleration feedforward, integration limit and dual bi-quad filters for sophisticated control of complex loads. Additional features include limit switches, breakpoints, secondary encoder input for masterslave and electronic gearing applications, as well as general purpose inputs and outputs.
Built on the Magellan® Motion Control Processor
ION’s Magellan Motion Processor provides a powerful instruction set to initialize and control the motion application, monitor performance, and synchronize overall drive behavior. Working with the ION Digital Drive, PMD’s powerful Pro-Motion® GUI makes it easy to graph and analyze system performance, while C-Motion® and VB-Motion® allow you to develop your own application using C/C++ or Visual BASIC.
Features:
Enhanced Magellan® instruction set
All digital drive
DC brush motor control, brushless DC motor and step motor versions
Ethernet, CANbus or serial communications
S-curve, trapezoidal, velocity contouring, electronic gearing profiles
Pulse & direction (ION 3000 model only)
Compact, powerful package
Up to 500 W or 3000 W rating
Up to 20 A continuous, up to 30 A peak current
12-56 volt or 20-195 volt single power source
High-efficiency MOSFETs
40 kHz PWM frequency
102 µsec servo loop rate
Auxiliary encoder input supports gearing & dual loop applications
Position, velocity and current loops
Field oriented control
Sinusoidal commutation
Stall detection & auto current reduction
Includes Pro-Motion, C-Motion and VB-Motion software
Separately programmable acceleration and deceleration value changes on-the-fly
Advanced PID filter with velocity and acceleration feedforward
Programmable dual biquad filters
