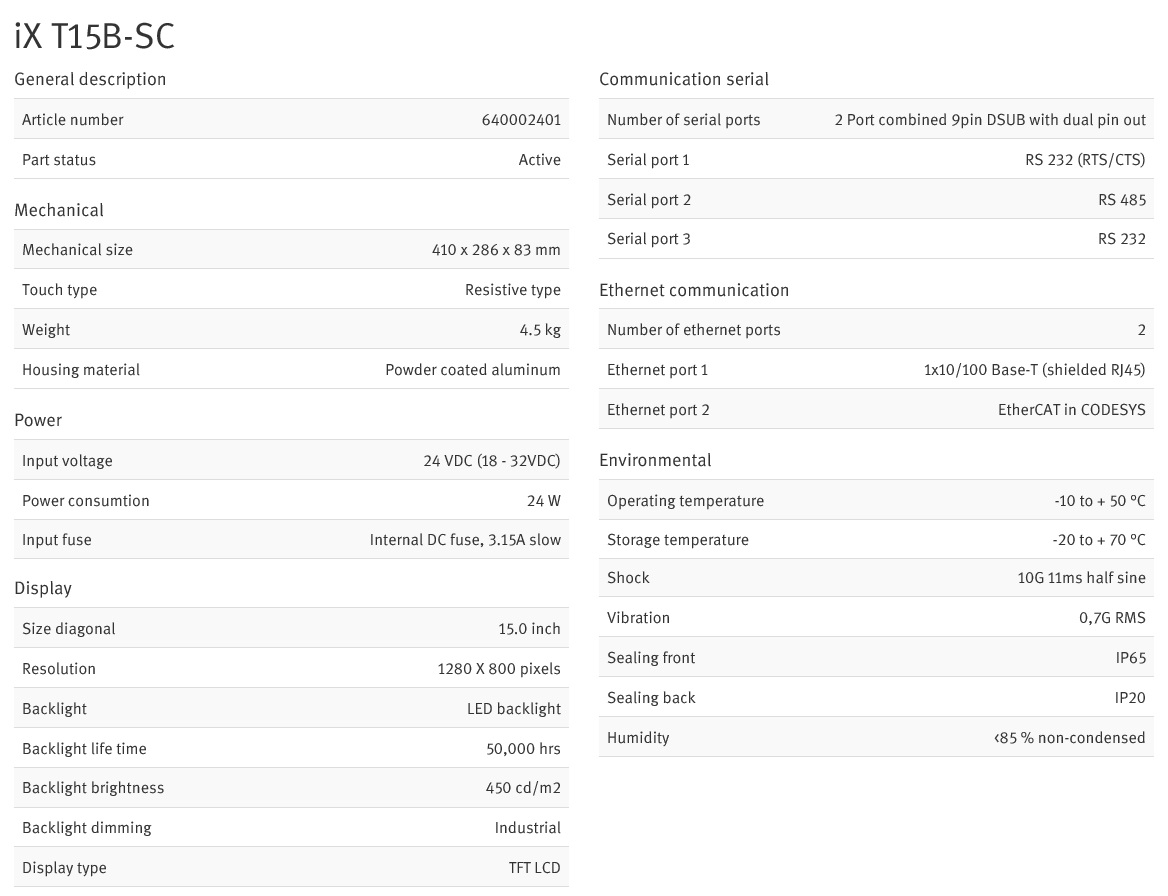

Beijer Electronics: iX HMI SoftControl (iX T15B-SC Series)
15.4" graphic touch HMI with iX software and CODESYS soft control
Interface with full CODESYS control
Try the combination of two established automation products - the iX HMI solution and CODESYS soft control. Thanks to the power of modern technology, the operator interface and the control logic can be united in one single compact hardware device. Just add distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's really cutting-edge.
You get a leaner, more efficient solution
An integrated environment allows faster system design
Less components and wiring reduce construction costs
Centralized access/administration reduce support costs
Enjoy configuration freedom
The control functionality lies in the operator panel itself, so your application remains elegantly slim. Just choose the location and number of remote I/Os to fit your needs. In addition, you can select between three major fieldbuses - EtherCAT, Modbus RTU and Modbus TCP.
Don't let capacity limit you
Significantly greater memory capacity than a conventional PLC means that your graphically advanced interface can fit comfortably along with a large PLC program to deliver greatly advanced control. Along with high-speed program execution, you can create far more functionality with more complex control.
Two separate systems, PLC and HMI, mean twice the risk of error. Let soft control change all that. Import the CODESYS tag-list into the iX software and you're done! Changes in CODESYS reflect in iX. It’s easier to create applications and no need to worry about which cable to use or what parameters to set.
CODESYS inside|Integrated soft control puts efficiency in your hands
Integrated HMI and PLC functionality is easy-to-use and cost efficient, making it simpler for system designers to build smaller, smarter machines, faster than ever before. Elegantly designed yet simple to use, the most eye-opening aspects of this product are the ones you don't actually see.
iX outside|Innovative HMI at the edge of your fingertips
The iX HMI solution opens the gateway to improved system design, where a smart and intuitive interface will give you the competitive edge.
Adapting the look of any machine or system to fit the user, an attractive interface with top-class graphics boosts your company brand and improves the face you show the world.
