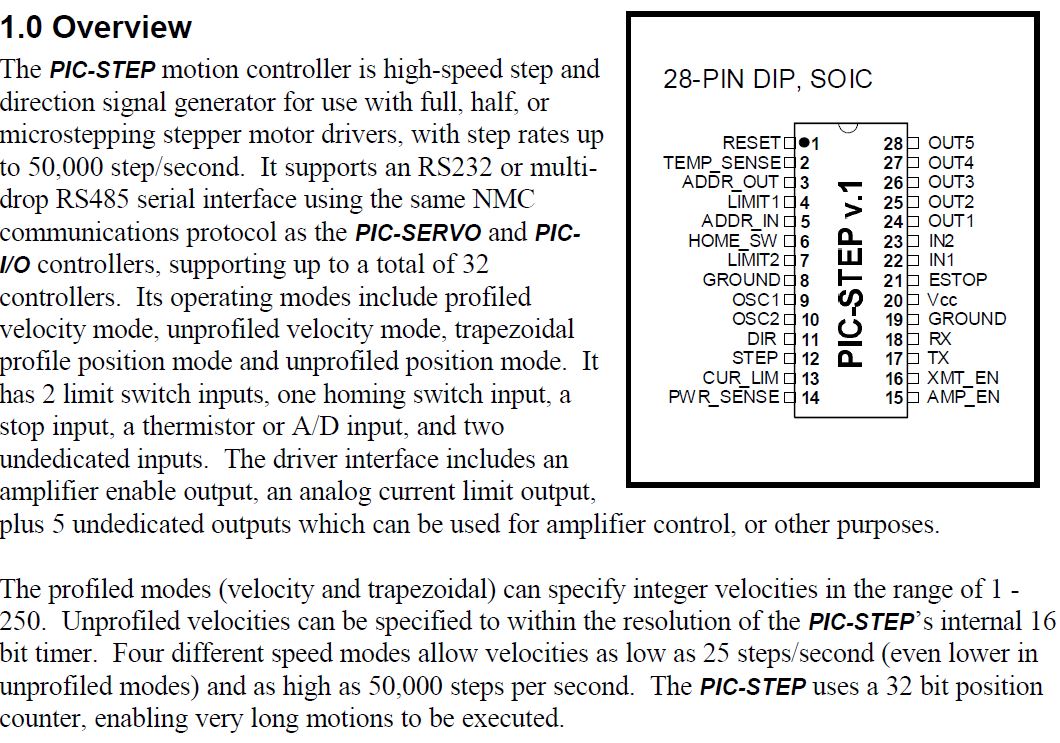

High speed indexer for stepper motor control systems

Speeds up to 50,000 steps per second are suitable for microstepping

Trapezoidal and velocity profiling modes with 32 bit position register

Independent, software controllable running and holding current settings

Analog input for motor temperature sensing

Limit switch inputs, e-stop input, plus auxiliary inputs and outputs

Step and Direction outputs connect to many common drivers

Serial interface can be used with RS232 or RS485 multi-drop communications

Complete documentation and example software available
