Komotek :200W 24VDC Brushless Motor(Shorten) Without Brake KAFQ-02EF6N21
Komotek :200W 24VDC Brushless Motor(Shorten) Without Brake KAFQ-02EF6N21


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAFQ-02EF6N21
Qty:

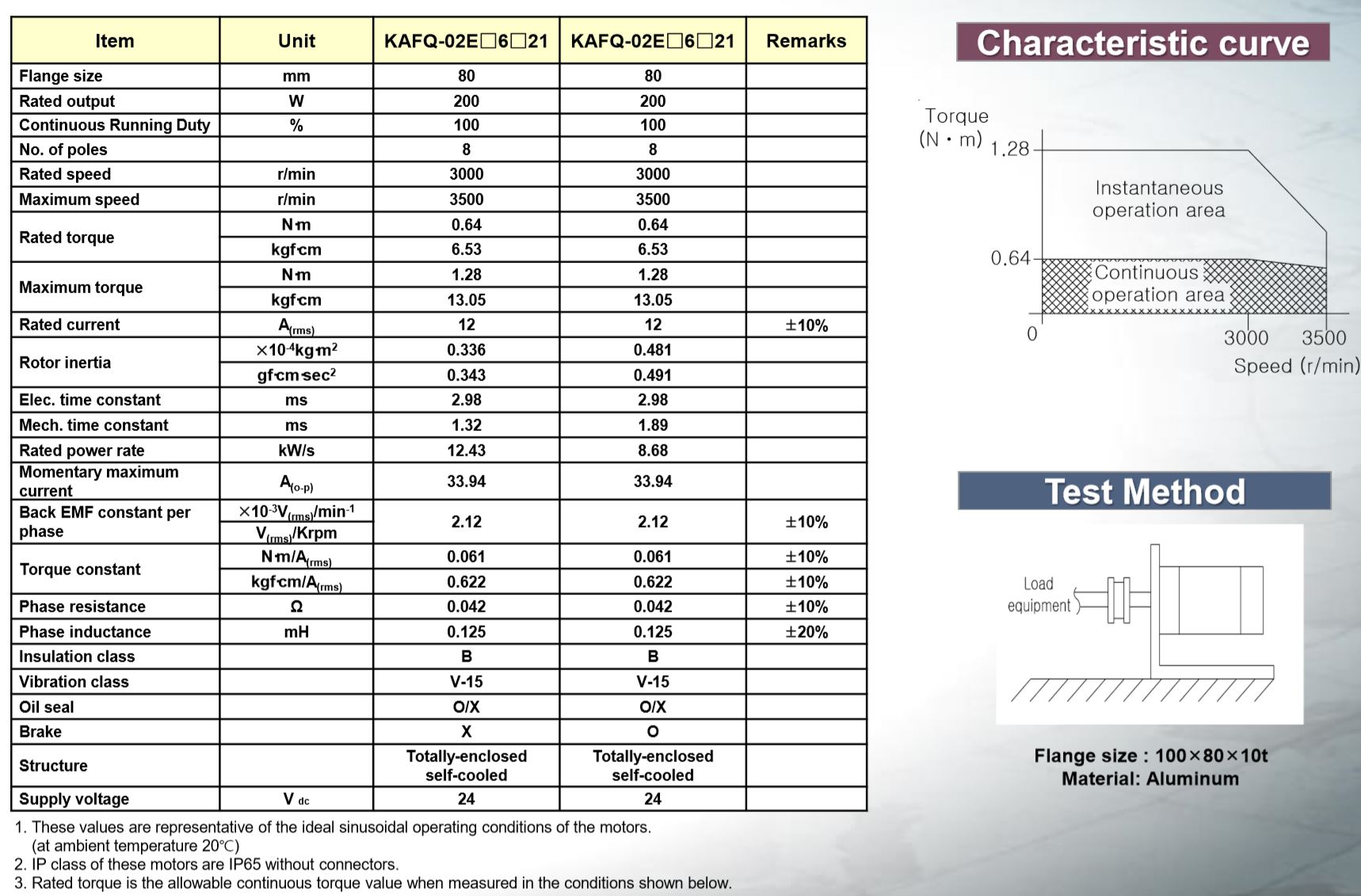

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAFQ series DC brushless motor is low inertia servo motor.It realized compactness by adopting high performance neodymium magnet, laser soldering technology, and high density winding technology.KAFQ Series are slim servomotors that have reduced the total length of the motor substantially. It enables the compact manufacturing of precision automation machinery and tools.

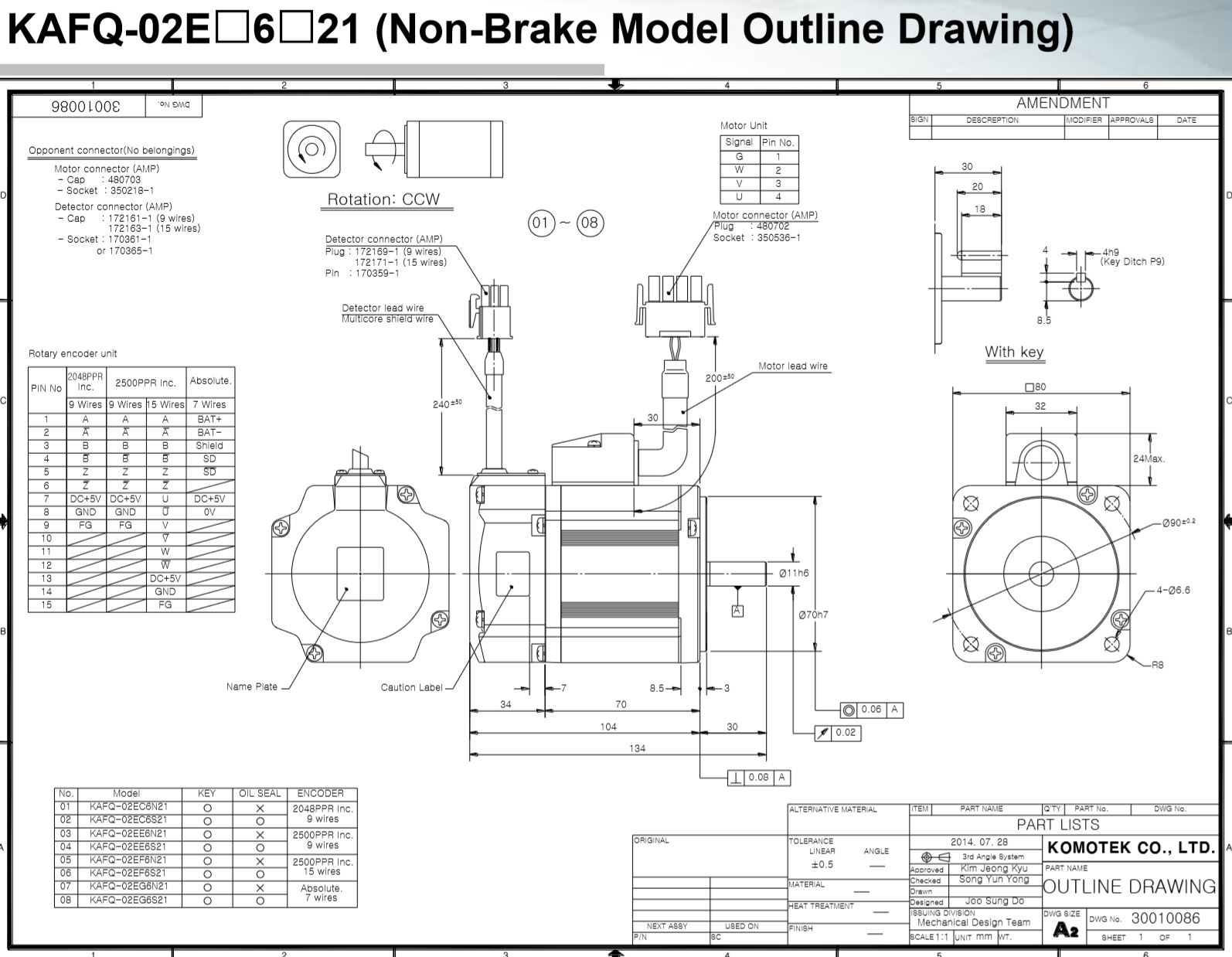

Motor Model:KAFQ-02EF6N21
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:200W
Motor Flange Size：80mm
Motor Rated Phase Current：12A
Motor Peak Phase Current:33.94A
Motor Rated Torque：0.64Nm
Motor Maximum Torque:1.28Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Motor Rotor Inertia:0.336×10-4kg·m2

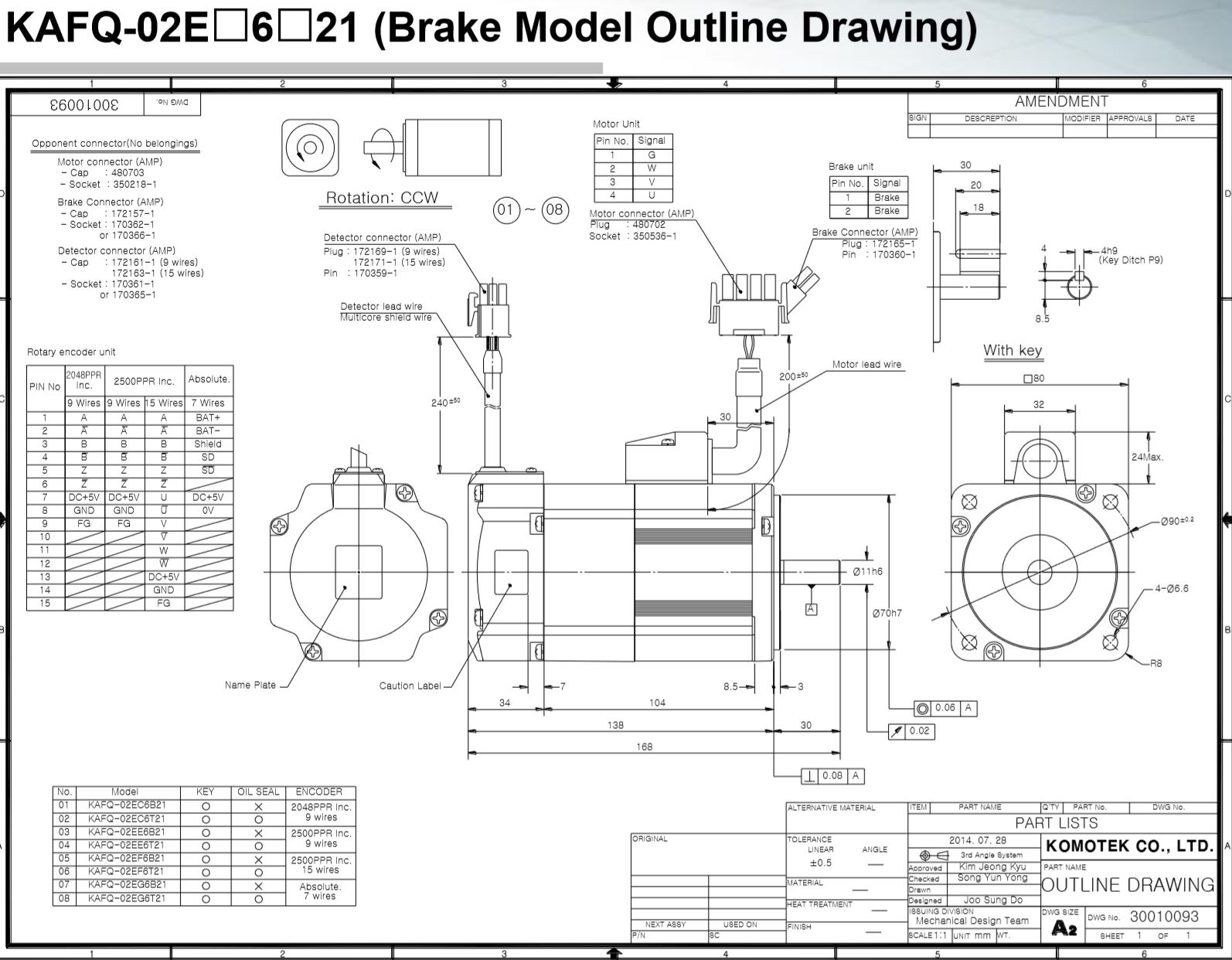

Motor Model:KAFQ-02EF6B21
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:200W
Motor Flange Size：80mm
Motor Rated Phase Current：12A
Motor Peak Phase Current:33.94A
Motor Rated Torque：0.64Nm
Motor Maximum Torque:1.28Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Motor Rotor Inertia:0.481×10-4kg·m2
Support Links
Short ,200W ,24VDC,without brake
