Komotek :100W 24VDC Brushless Motor With Brake KAFZ-01EF6B21
Komotek :100W 24VDC Brushless Motor With Brake KAFZ-01EF6B21


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAFZ-01EF6B21
Qty:

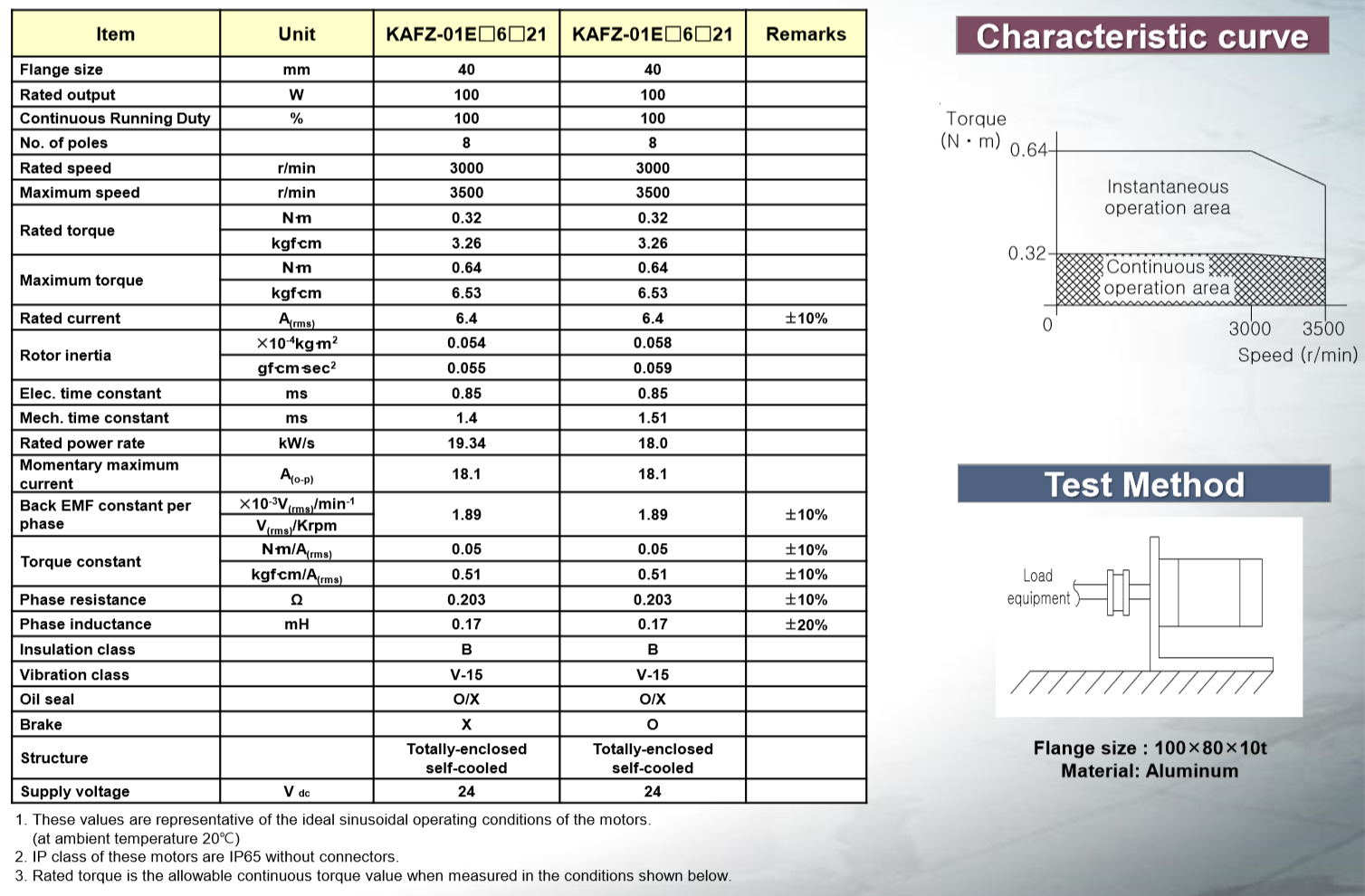

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAFZ series DC brushless motor is ultra low inertia servo motor.It realized compactness by adopting high performance neodymium magnet, laser soldering technology, and high density winding technology. KAFZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems,medical machine,sewing machine and semiconductor manufacturing equipments.

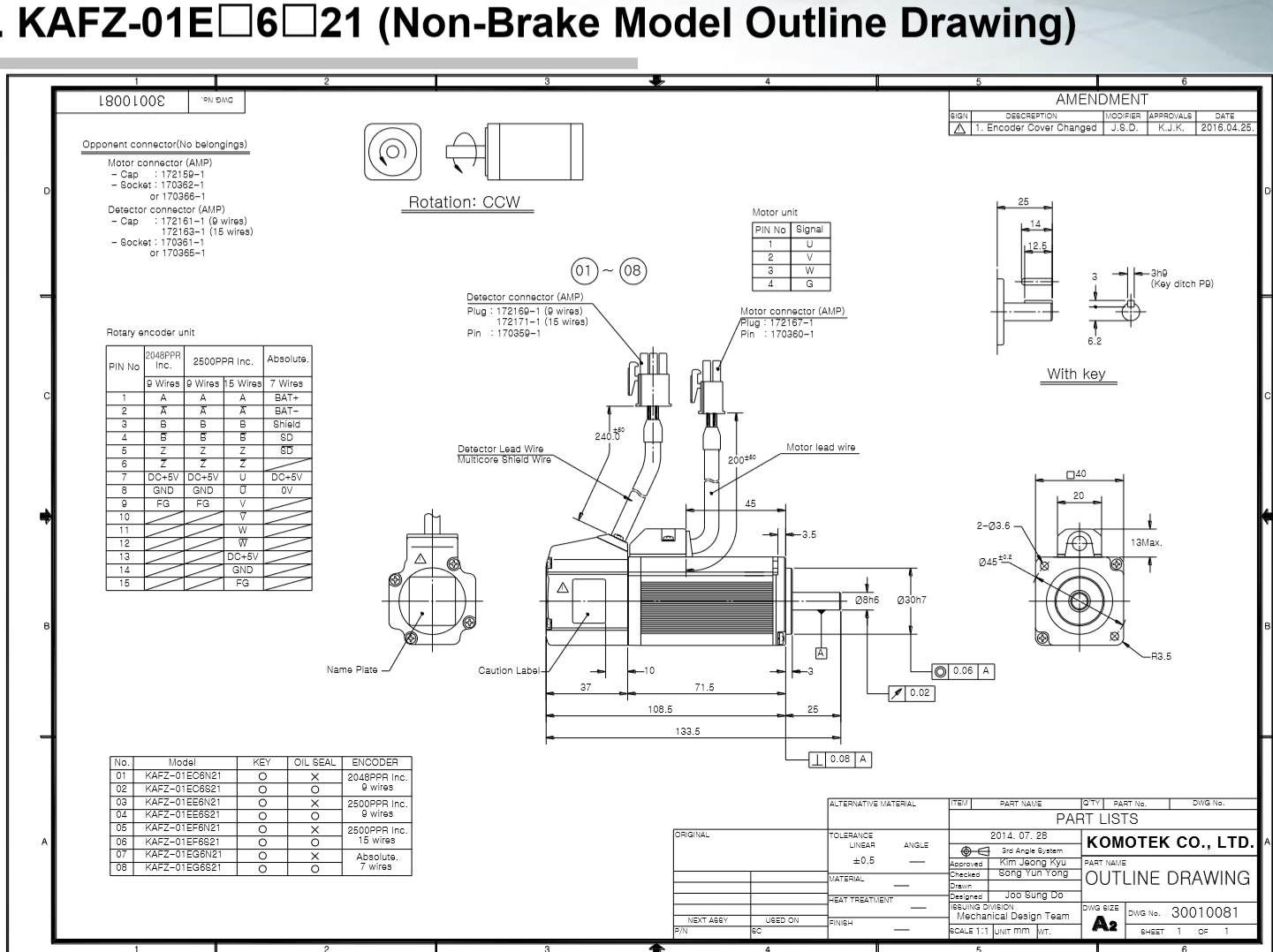

Motor Model:KAFZ-01EF6N21
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:100W
Motor Flange Size：40mm
Motor Rated Phase Current：6.4A
Motor Peak Phase Current:18.1A
Motor Rated Torque：0.32Nm
Motor Maximum Torque:0.64Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM

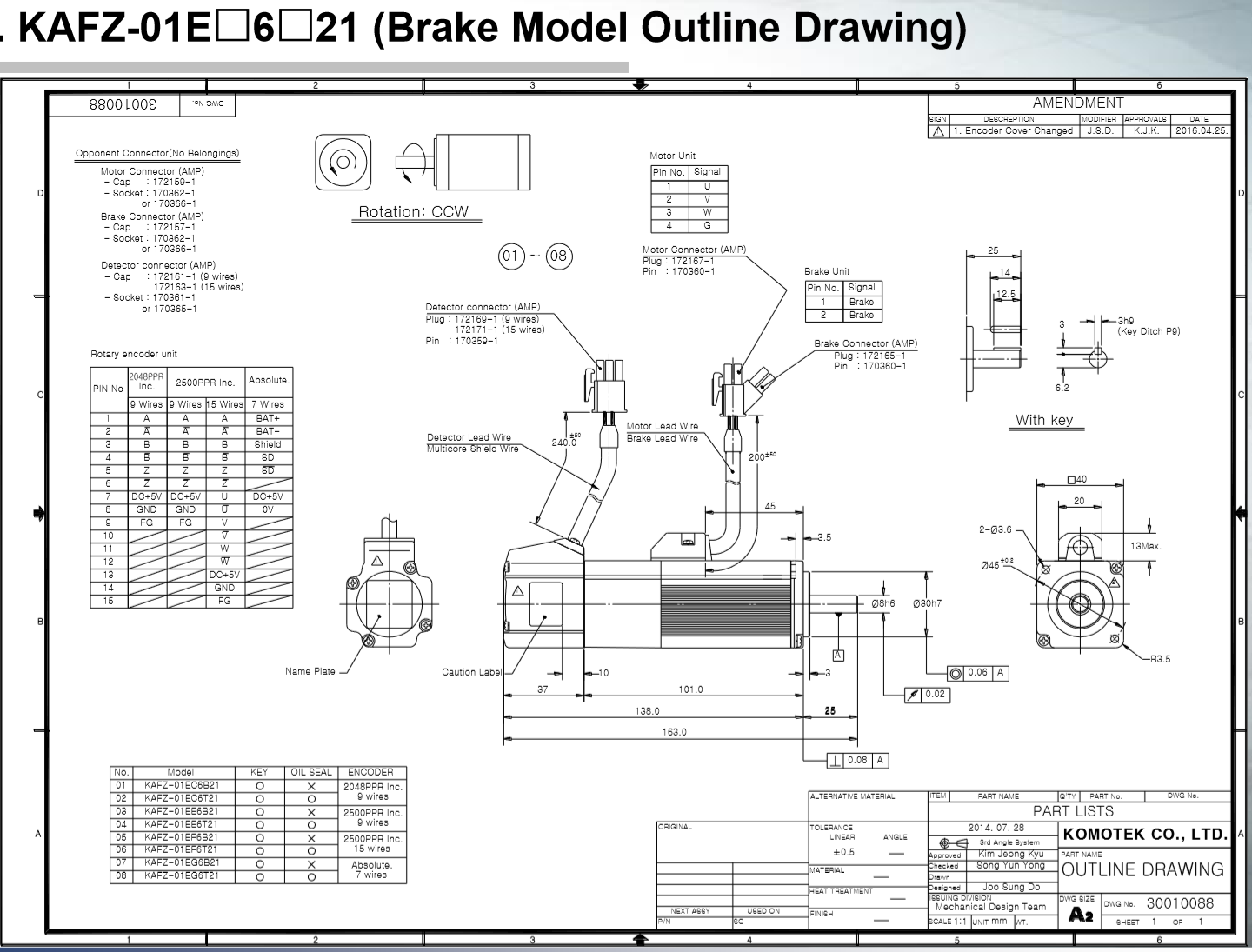

Motor Model:KAFZ-01EF6B21
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:100W
Motor Flange Size：40mm
Motor Rated Phase Current：6.4A
Motor Peak Phase Current:18.1A
Motor Rated Torque：0.32Nm
Motor Maximum Torque:0.64Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
