Komotek :400W 48VDC Brushless Motor With Brake KAFZ-04DF2B12
Komotek :400W 48VDC Brushless Motor With Brake KAFZ-04DF2B12


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAFZ-04DF2B12
Qty:

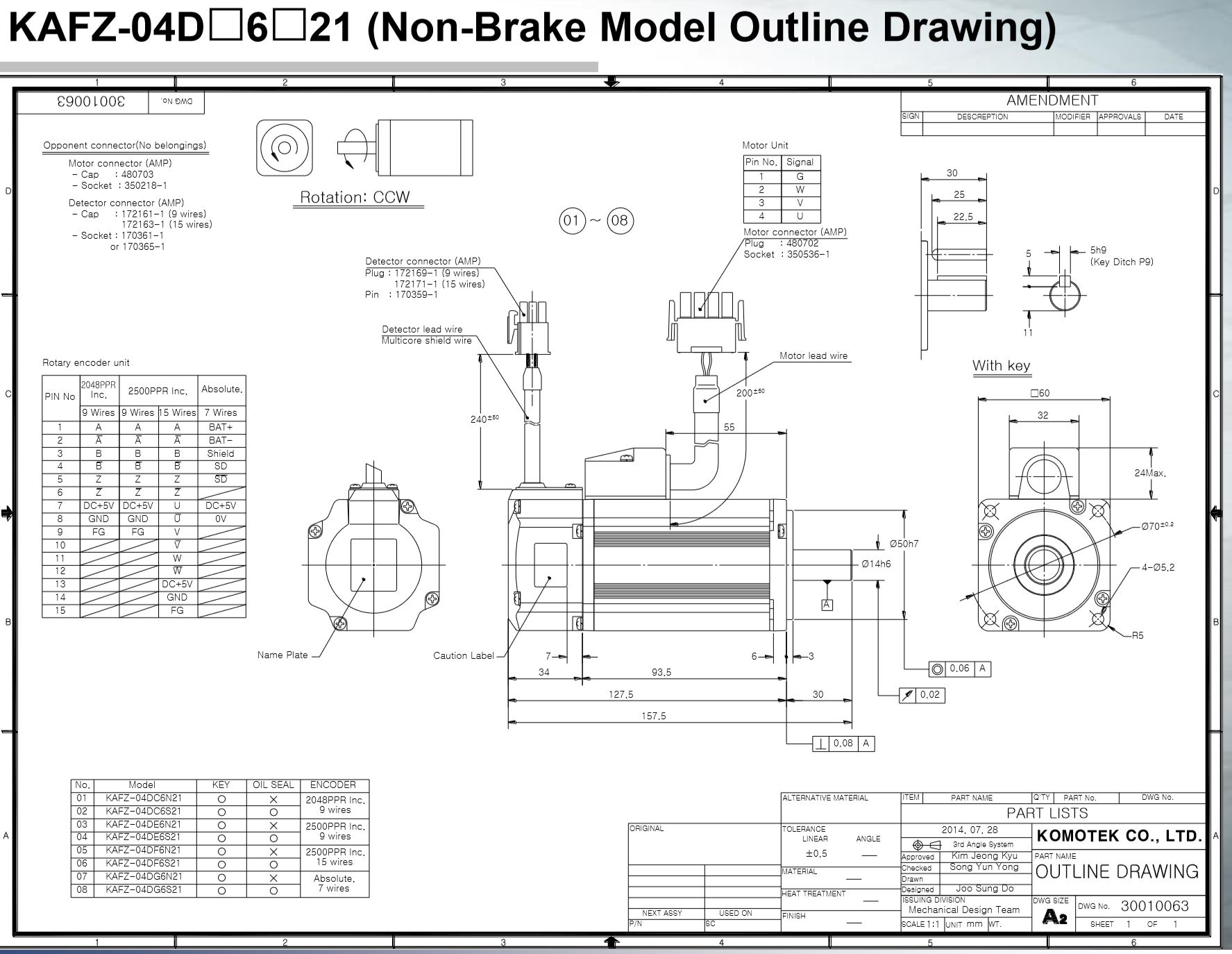

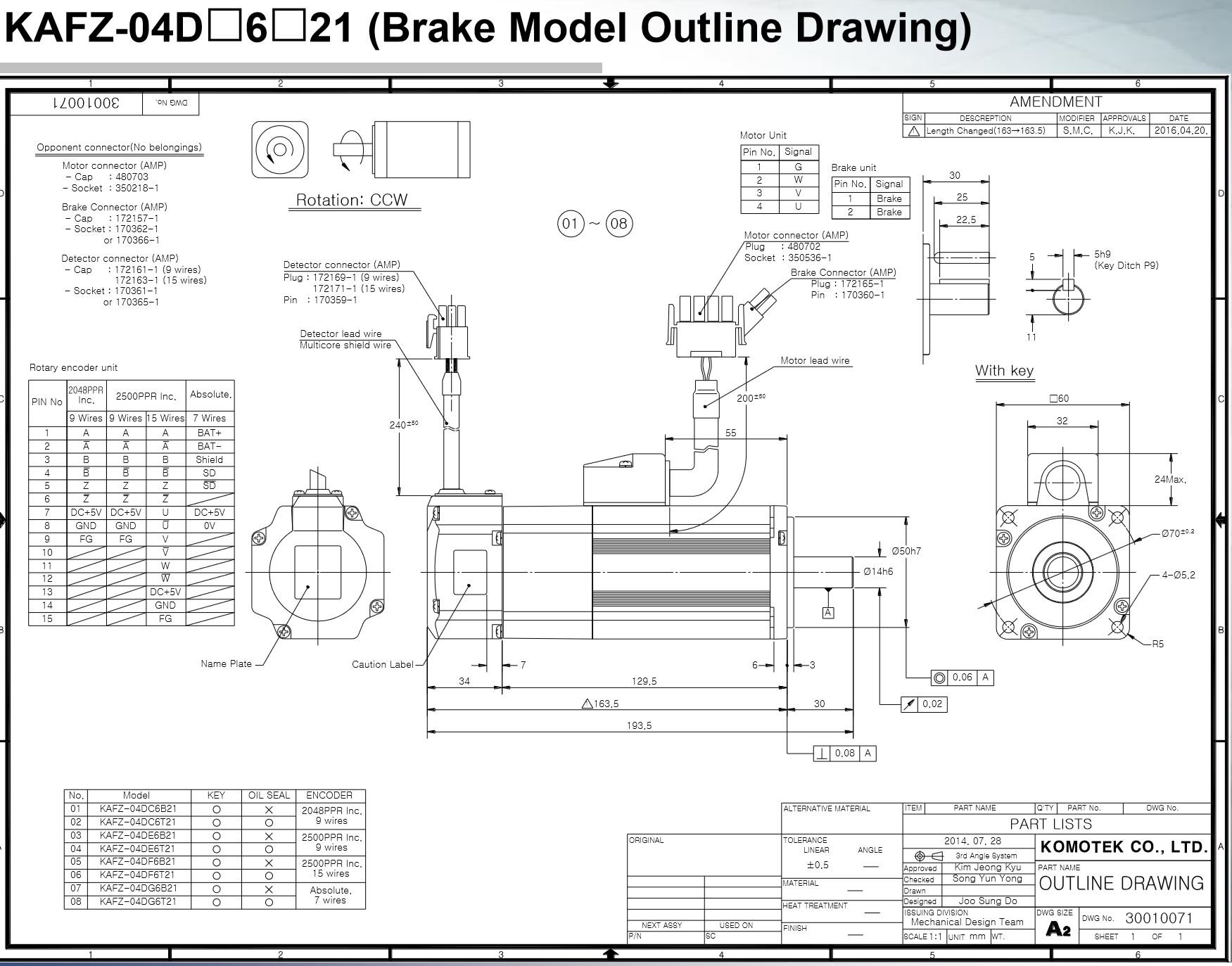

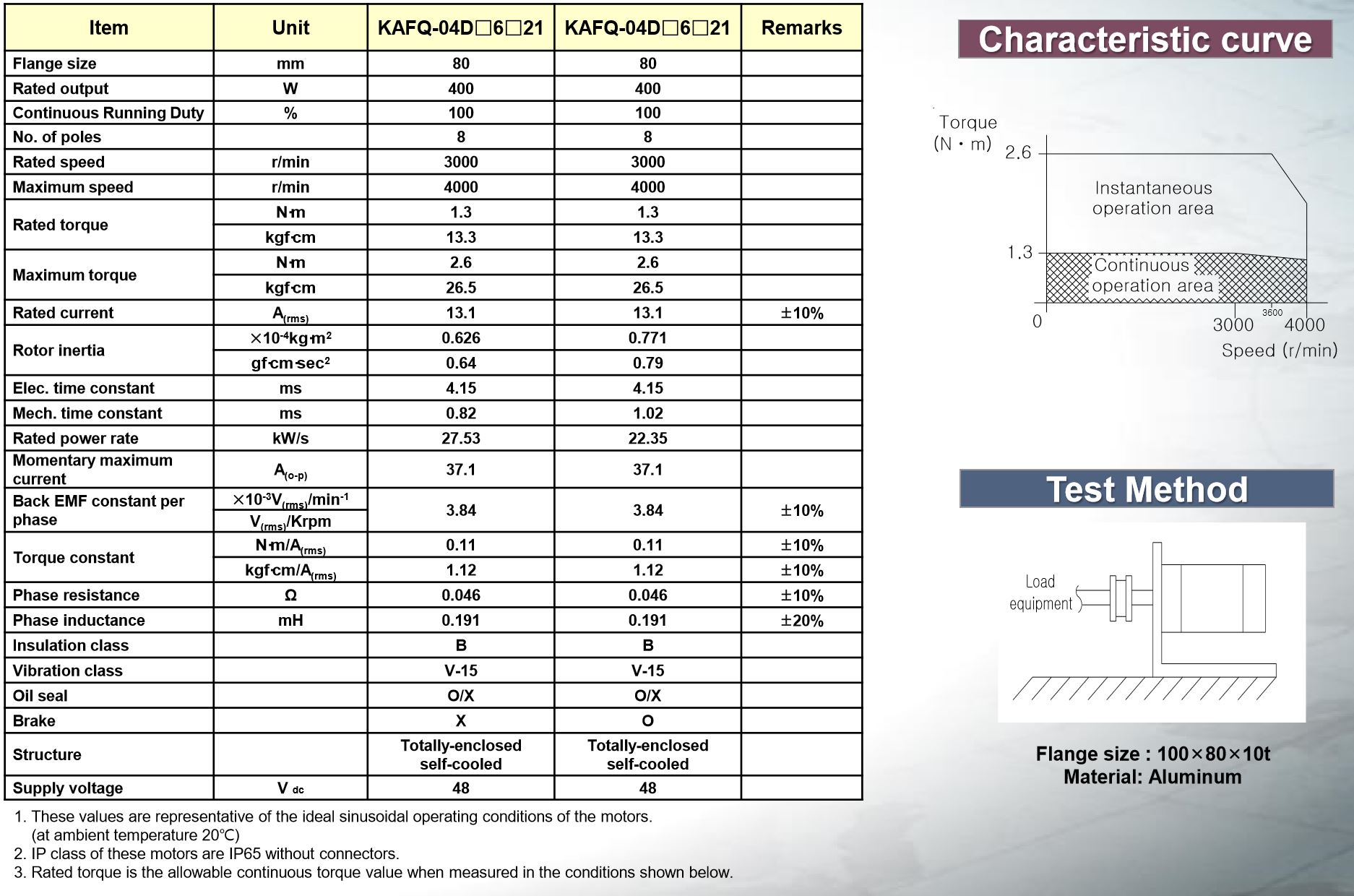

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAFZ series DC brushless motor is ultra low inertia servo motor.It realized compactness by adopting high performance neodymium magnet, laser soldering technology, and high density winding technology. KAFZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems,medical machine,sewing machine and semiconductor manufacturing equipments.

Motor Model:KAFZ-04DF2N12
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：48VDC
Motor Poles:8
Motor Rated Output:400W
Motor Flange Size：60mm
Motor Rated Phase Current：12.6A
Motor Peak Phase Current:35.64A
Motor Rated Torque：1.3Nm
Motor Maximum Torque:2.6Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:4000RPM
Motor Rotor Inertia:0.334×10-4kg·m2

Motor Model:KAFZ-04DF2B12
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：48VDC
Motor Poles:8
Motor Rated Output:400W
Motor Flange Size：60mm
Motor Rated Phase Current：12.6A
Motor Peak Phase Current:35.64A
Motor Rated Torque：1.3Nm
Motor Maximum Torque2.6Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:4000RPM
Motor Rotor Inertia:0.362×10-4kg·m2
