Komotek :600W 24VDC Brushless Motor With Brake KAFZ-06EF6B21
Komotek :600W 24VDC Brushless Motor With Brake KAFZ-06EF6B21


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAFZ-06EF6B21
Qty:

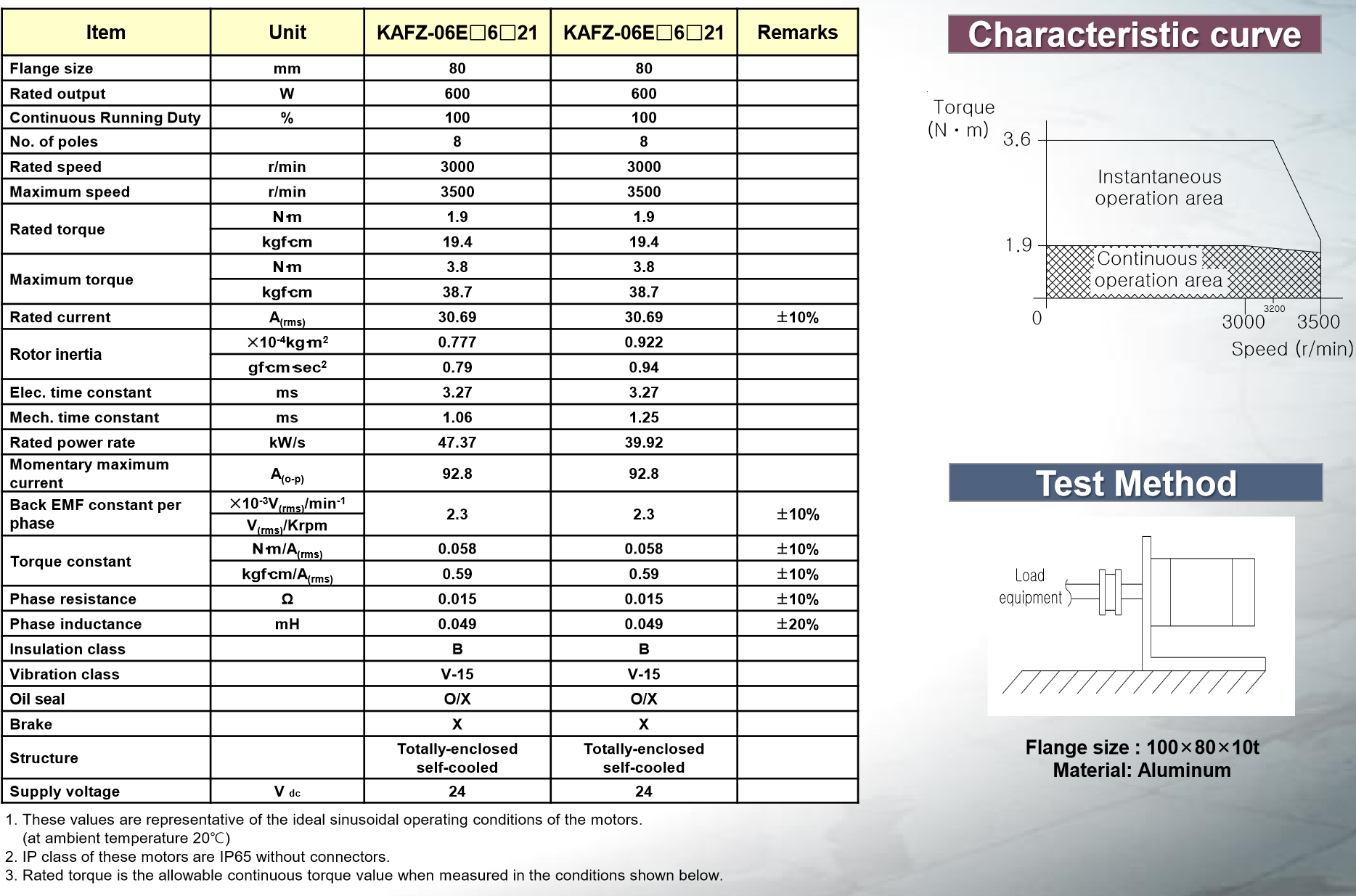

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAFZ series DC brushless motor is ultra low inertia servo motor.It realized compactness by adopting high performance neodymium magnet, laser soldering technology, and high density winding technology. KAFZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems,medical machine,sewing machine and semiconductor manufacturing equipments.

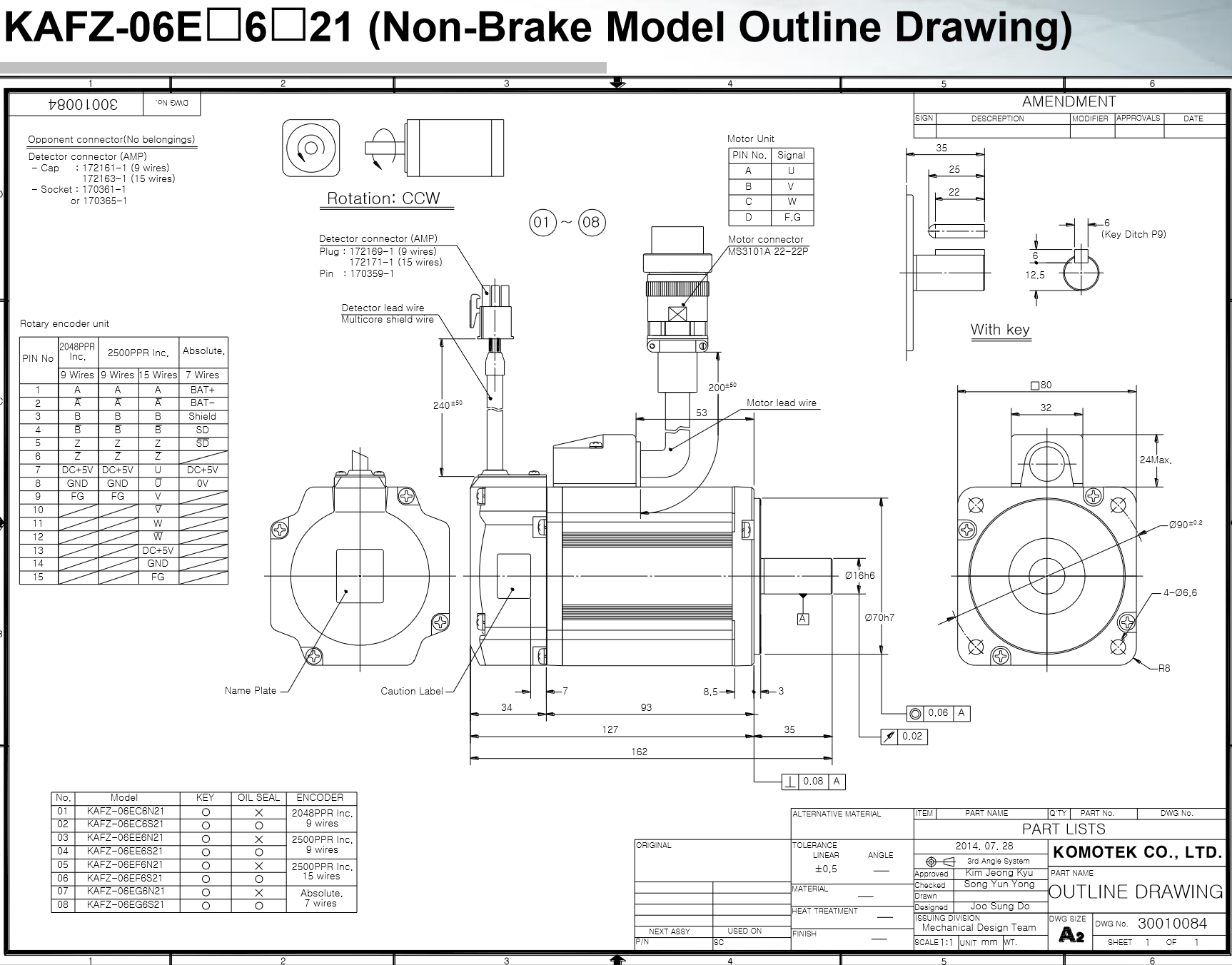

Motor Model:KAFZ-06EF6N21
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:600W
Motor Flange Size：60mm
Motor Rated Phase Current：30.00A
Motor Peak Phase Current:90.00A
Motor Rated Torque：1.9Nm
Motor Maximum Torque:3.8Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Rotor inertia：0.777 x10-4kg·m2

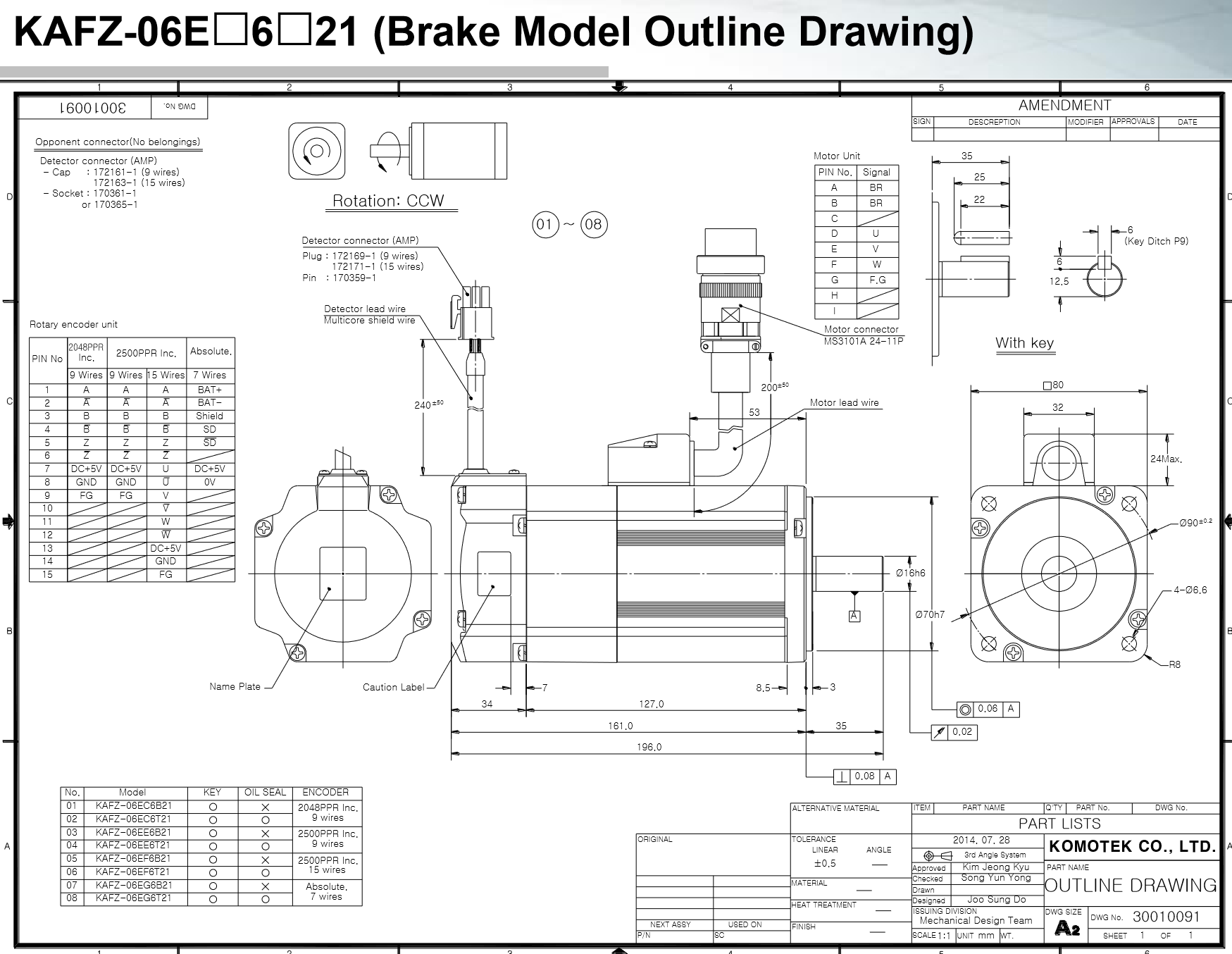

Motor Model:KAFZ-06EF6B21
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：24VDC
Motor Poles:8
Motor Rated Output:600W
Motor Flange Size：60mm
Motor Rated Phase Current：30.00A
Motor Peak Phase Current:90.00A
Motor Rated Torque：1.9Nm
Motor Maximum Torque:3.8RPM
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Rotor inertia：0.922 x10-4kg·m2
