Komotek :1KW 380VAC Brushless Motor Without Brake ,With Endat2.2 Absolute Encoder,KAND-10GW1S2
Komotek :1KW 380VAC Brushless Motor Without Brake ,With Endat2.2 Absolute Encoder,KAND-10GW1S2


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAND-10GW1S2
Qty:

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAND Series can be applied to Conveyor machines, Assembly robots, Welding robots, Precision automation machinery.This is low inertia servomotor,Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.

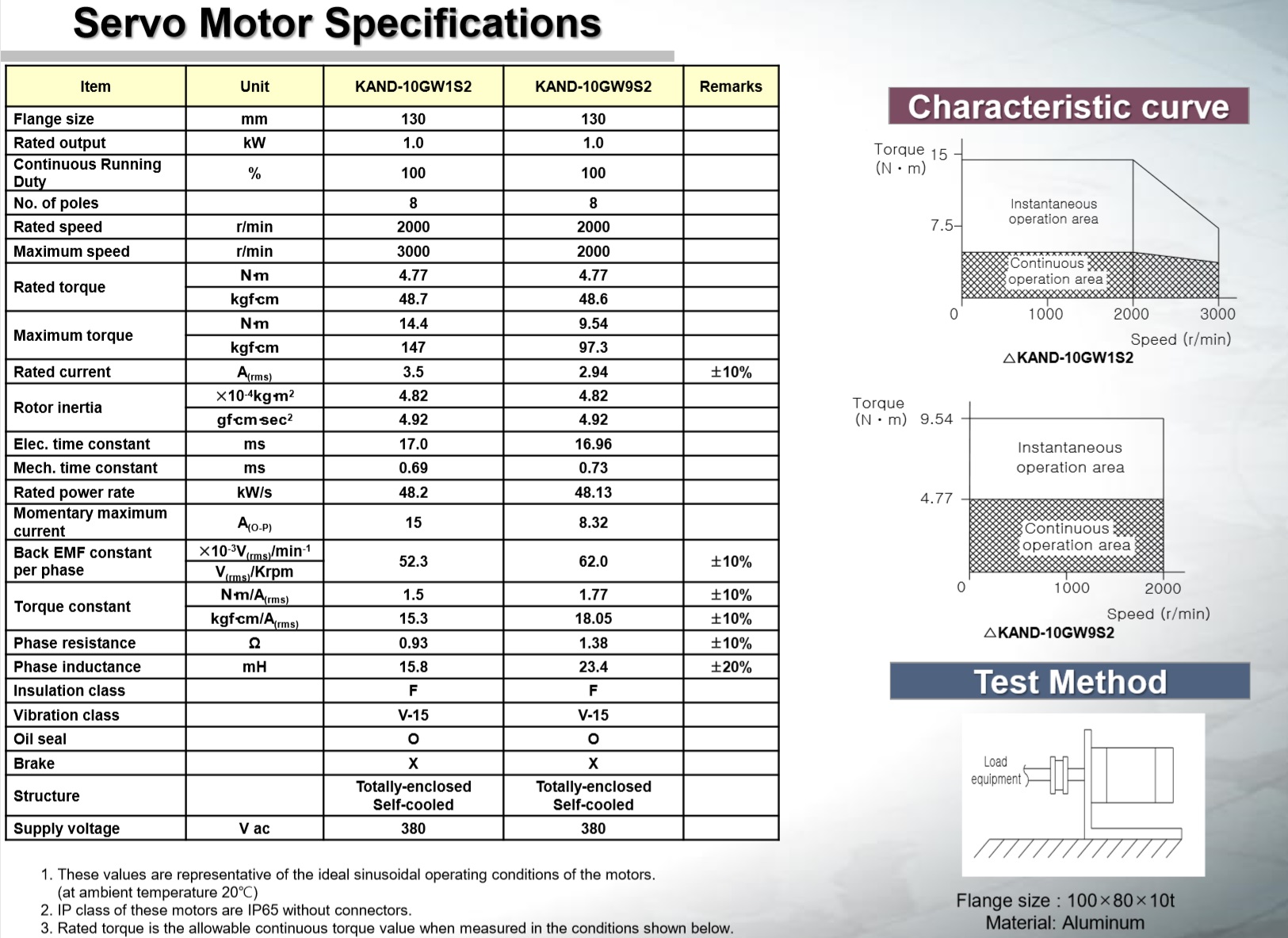

Motor Model:KAND-10GW1S2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:1000W

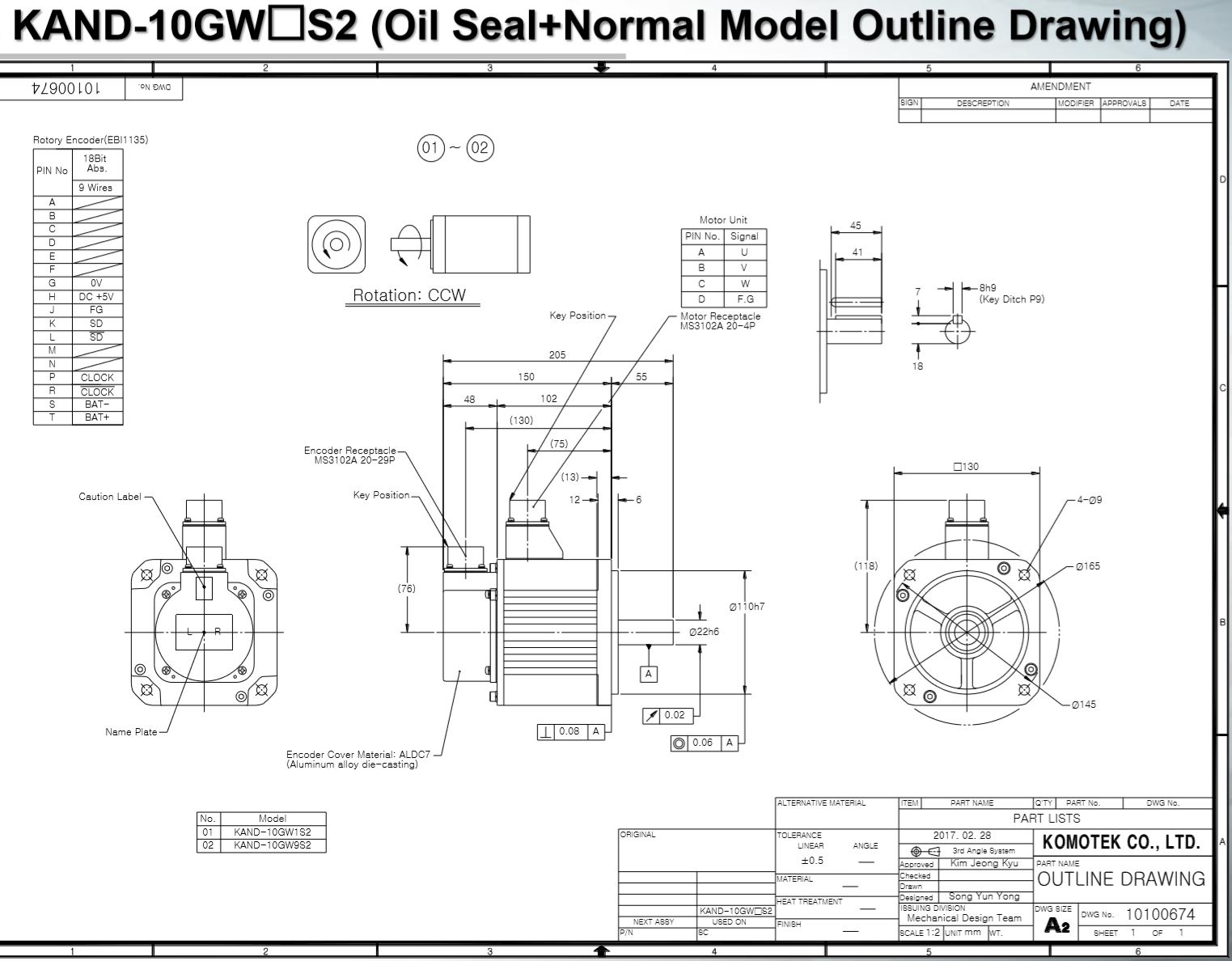

Motor Flange Size：130mm
Motor Rated Phase Current：3.5A
Motor Peak Phase Current:15A
Motor Rated Torque：4.77Nm
Motor Maximum Torque:14.44Nm
Motor Rated Speed:2000RPM
Motor Maximum Speed:3000RPM
Rotor inertia：4.82 x10-4kg·m2
Motor Feedback:18Bits EnDat2.2 Encoder Encoder

Motor ModelKAND-10GW1T2
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:1000W
Motor Flange Size：130mm
Motor Rated Phase Current：3.5A
Motor Peak Phase Current:15A
Motor Rated Torque：4.77Nm
Motor Maximum Torque:14.44Nm
Motor Rated Speed:2000RPM
Motor Maximum Speed:3000RPM
Rotor inertia：5.5 x10-4kg·m2
Motor Feedback:18Bits EnDat2.2 Encoder
