Komotek :3.5KW 380VAC Brushless Motor Without Brake ,With Endat2.2 Absolute Encoder,KAND-35GW1S2
Komotek :3.5KW 380VAC Brushless Motor Without Brake ,With Endat2.2 Absolute Encoder,KAND-35GW1S2


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KAND-35GW1S2
Qty:

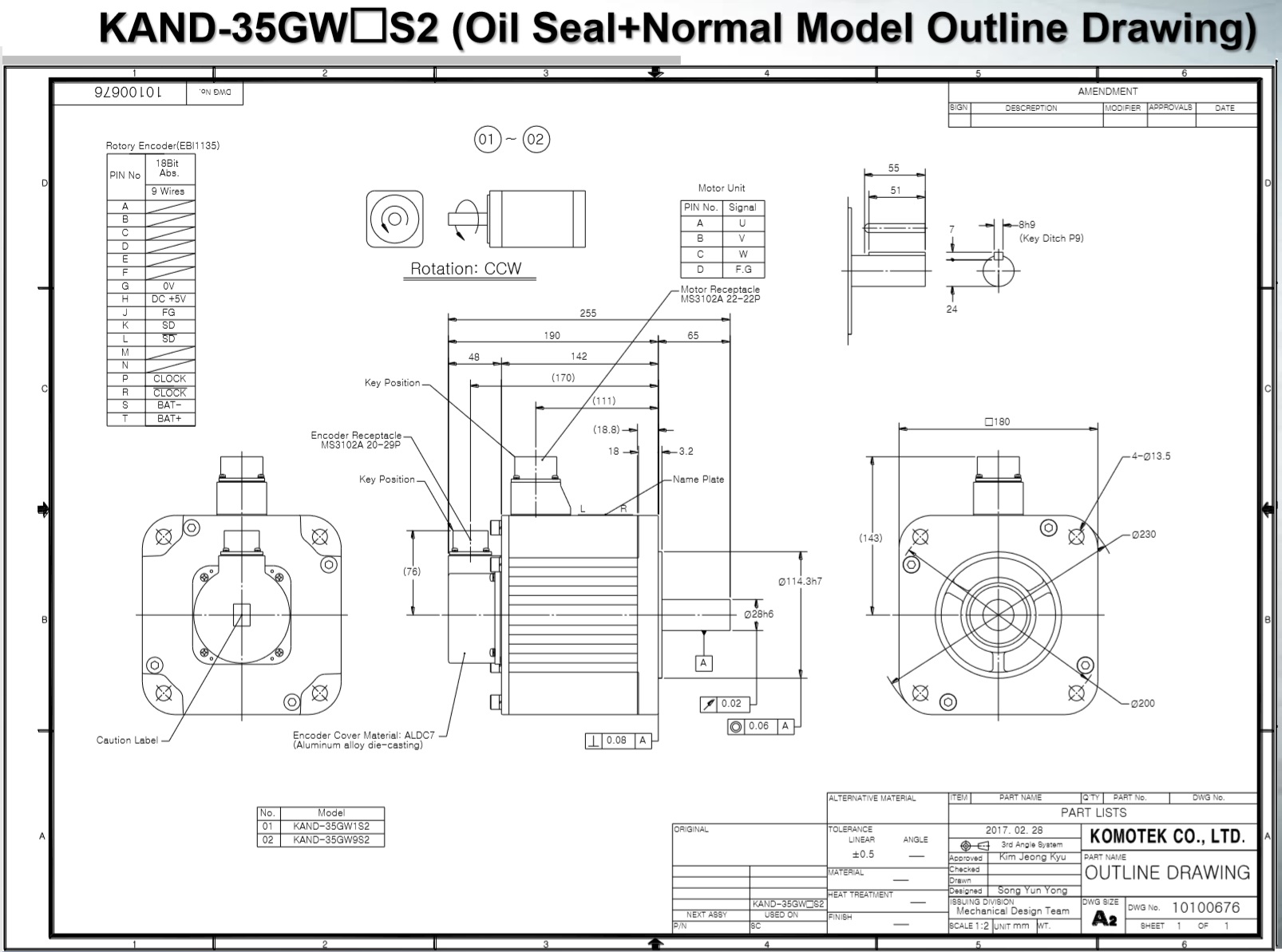

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KAND Series can be applied to Conveyor machines, Assembly robots, Welding robots, Precision automation machinery.This is low inertia servomotor,Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.

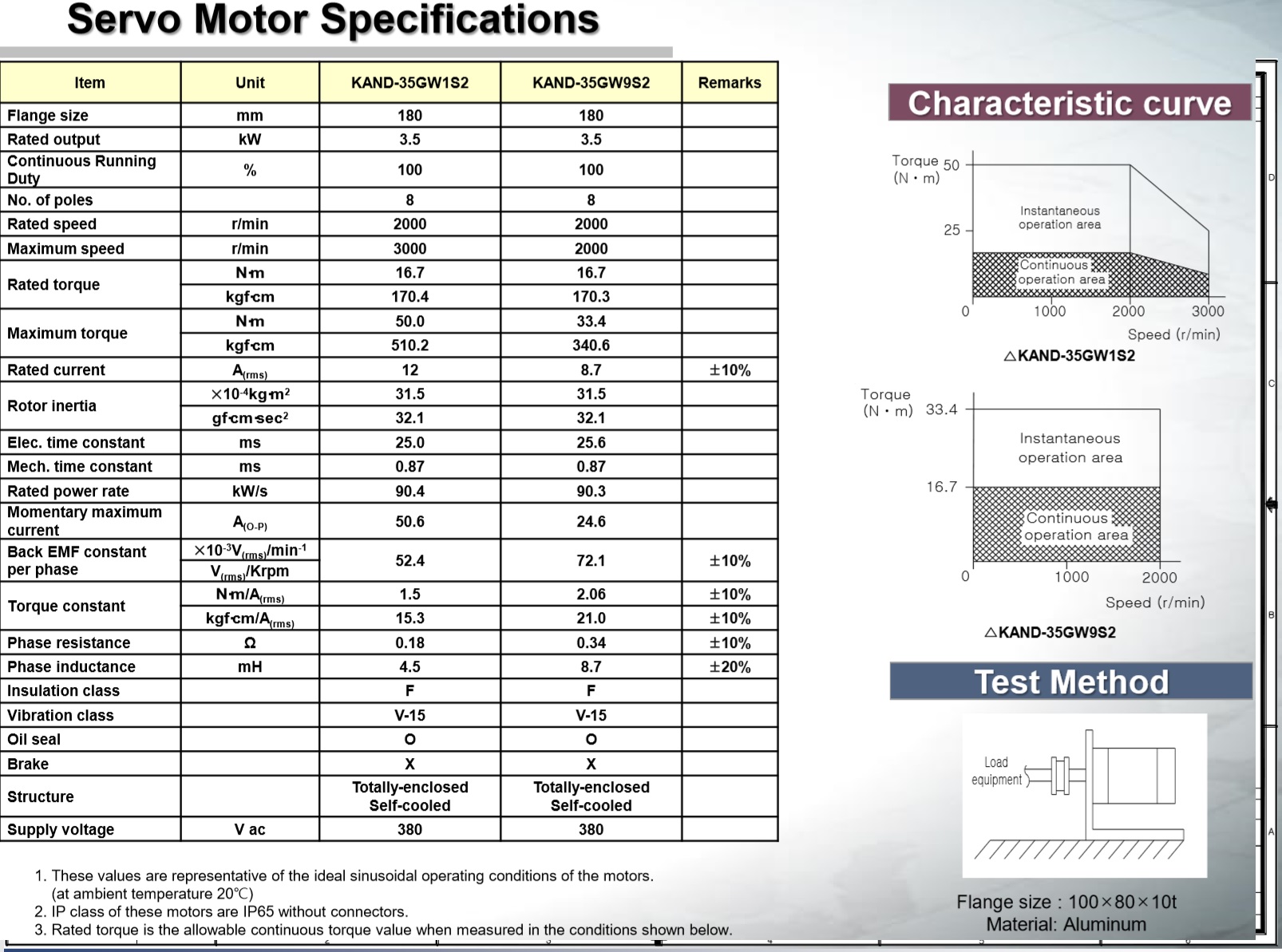

Motor Model:KAND-30GW1S2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:3500W
Motor Flange Size：180mm
Motor Rated Phase Current：12A
Motor Peak Phase Current:50.6A
Motor Rated Torque：16.7Nm
Motor Maximum Torque:50Nm
Motor Rated Speed:2000RPM
Motor Maximum Speed:3000RPM
Rotor inertia：31.5x10-4kg·m2

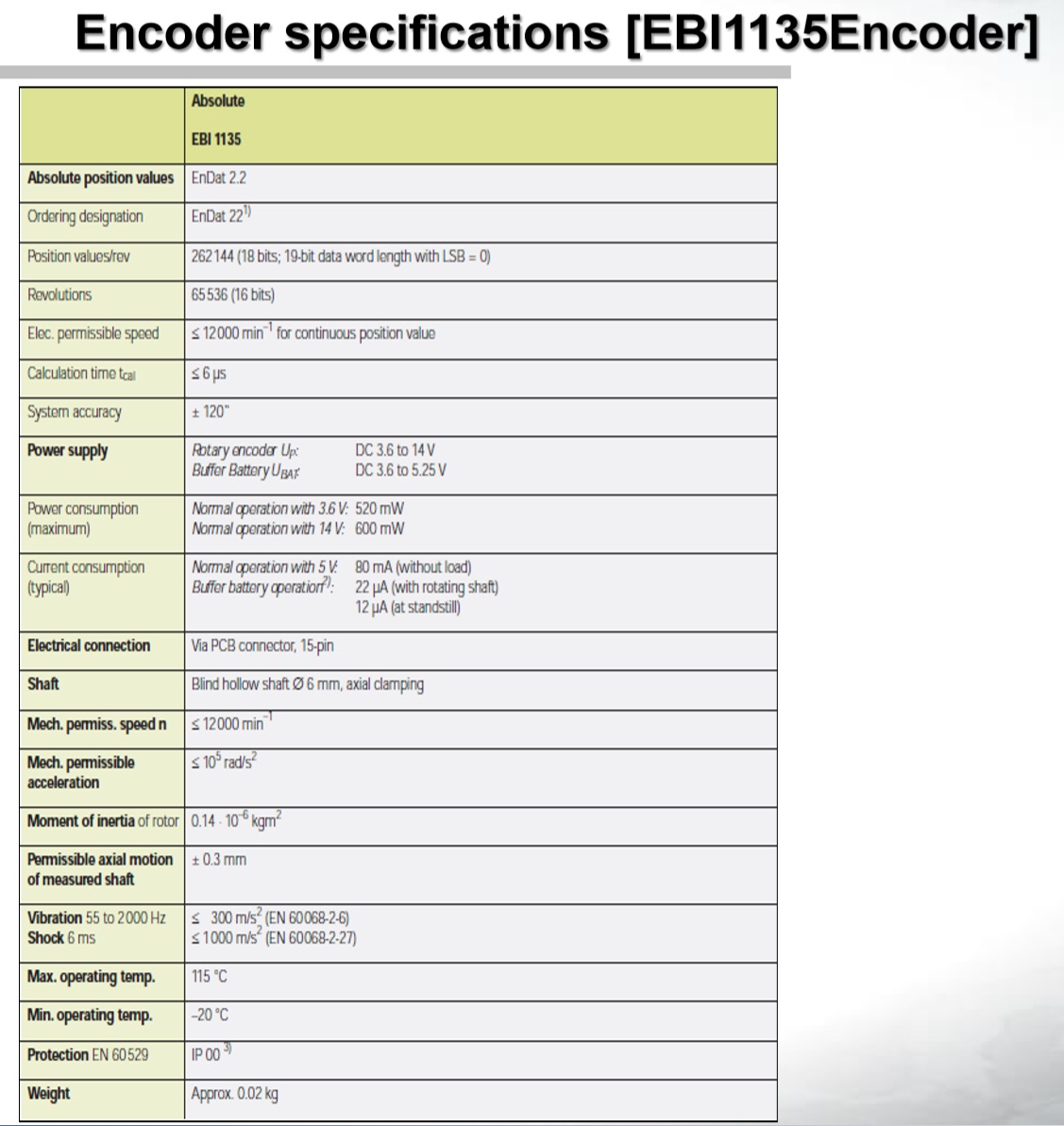

Motor Feedback:18Bits EnDat2.2 Encoder Encoder

Motor ModelKAND-30GW1T2

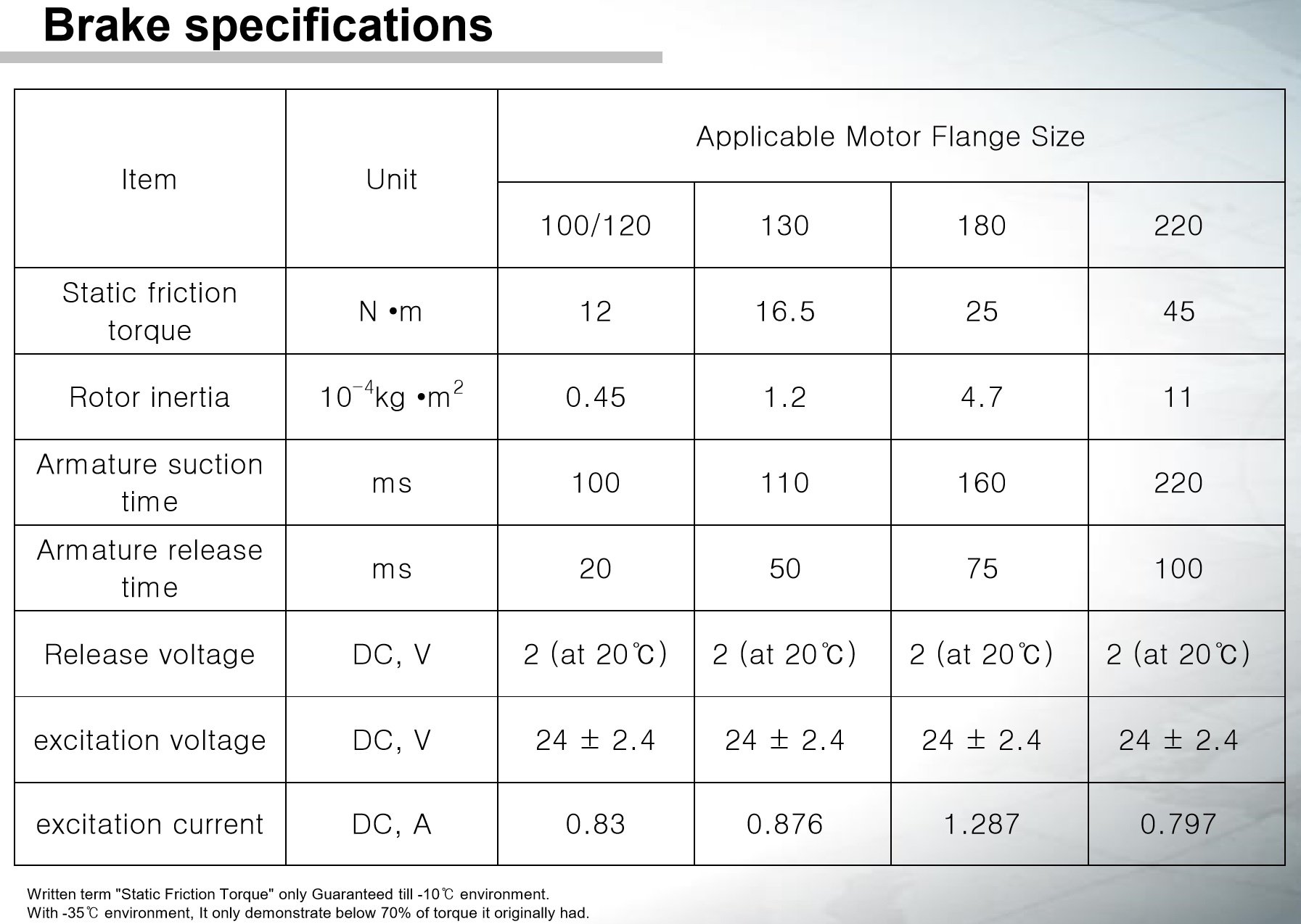

Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:3500W
Motor Flange Size：180mm
Motor Rated Phase Current：12A
Motor Peak Phase Current:50.6A
Motor Rated Torque：16.7Nm
Motor Maximum Torque:50Nm
Motor Rated Speed:2000RPM
Motor Maximum Speed:3000RPM
Rotor inertia：35.4x10-4kg·m2
Motor Feedback:18Bits EnDat2.2 Encoder
